Rigid strip extruder
The sealing strip extruding line from JINGDONG PLASTICS MACHINERY can produce flexible strip, rigid strip, both flexible and rigid in one and different plastics in one strip.
Compose:

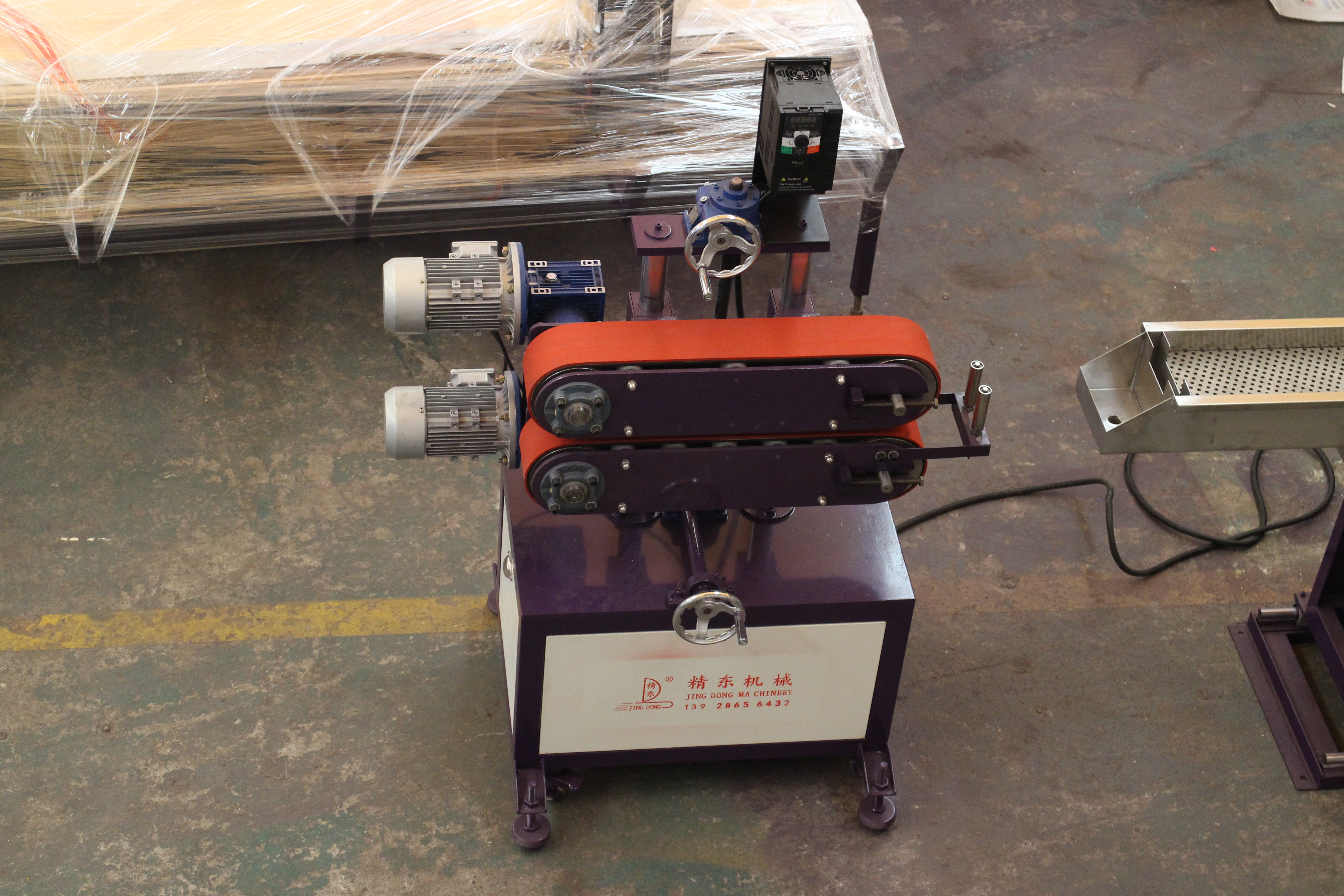

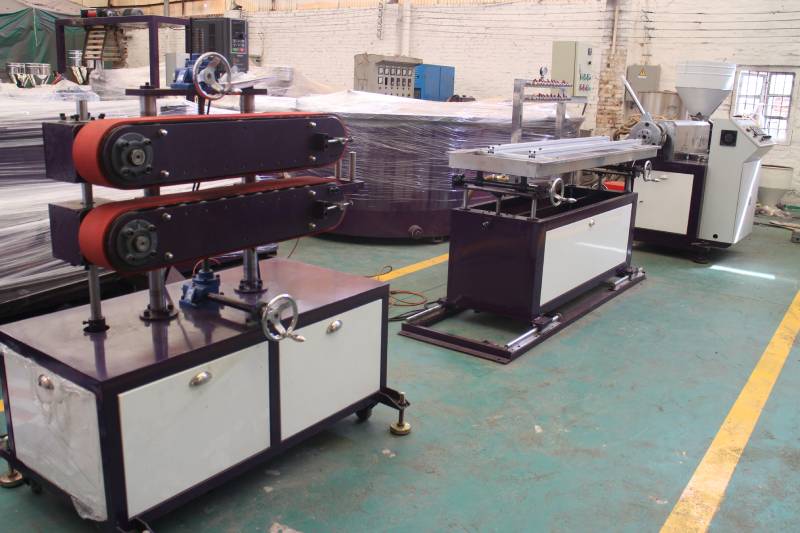

For flexible strip: extruder + mold → cooling bath → drawing unit → take-up unit.

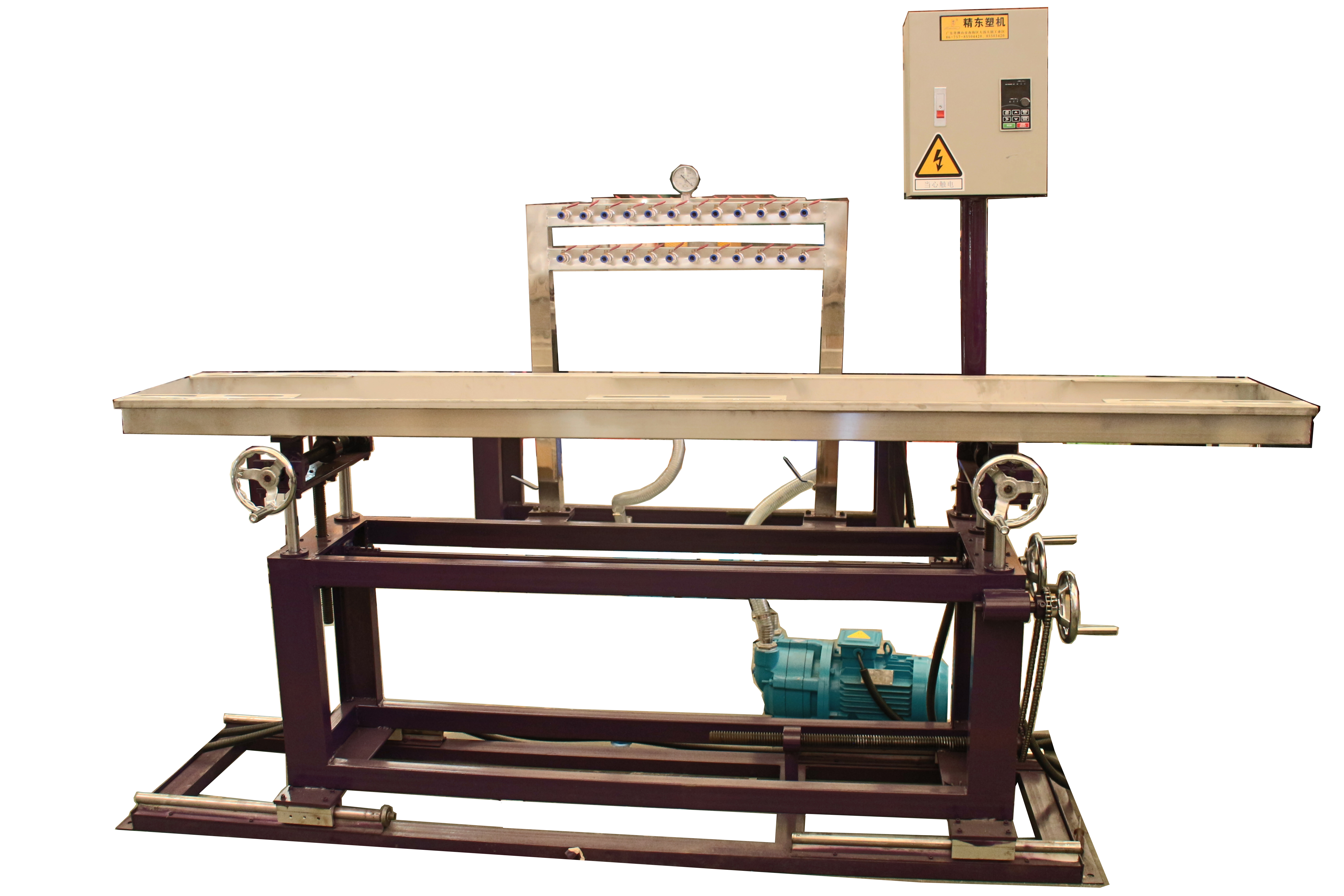

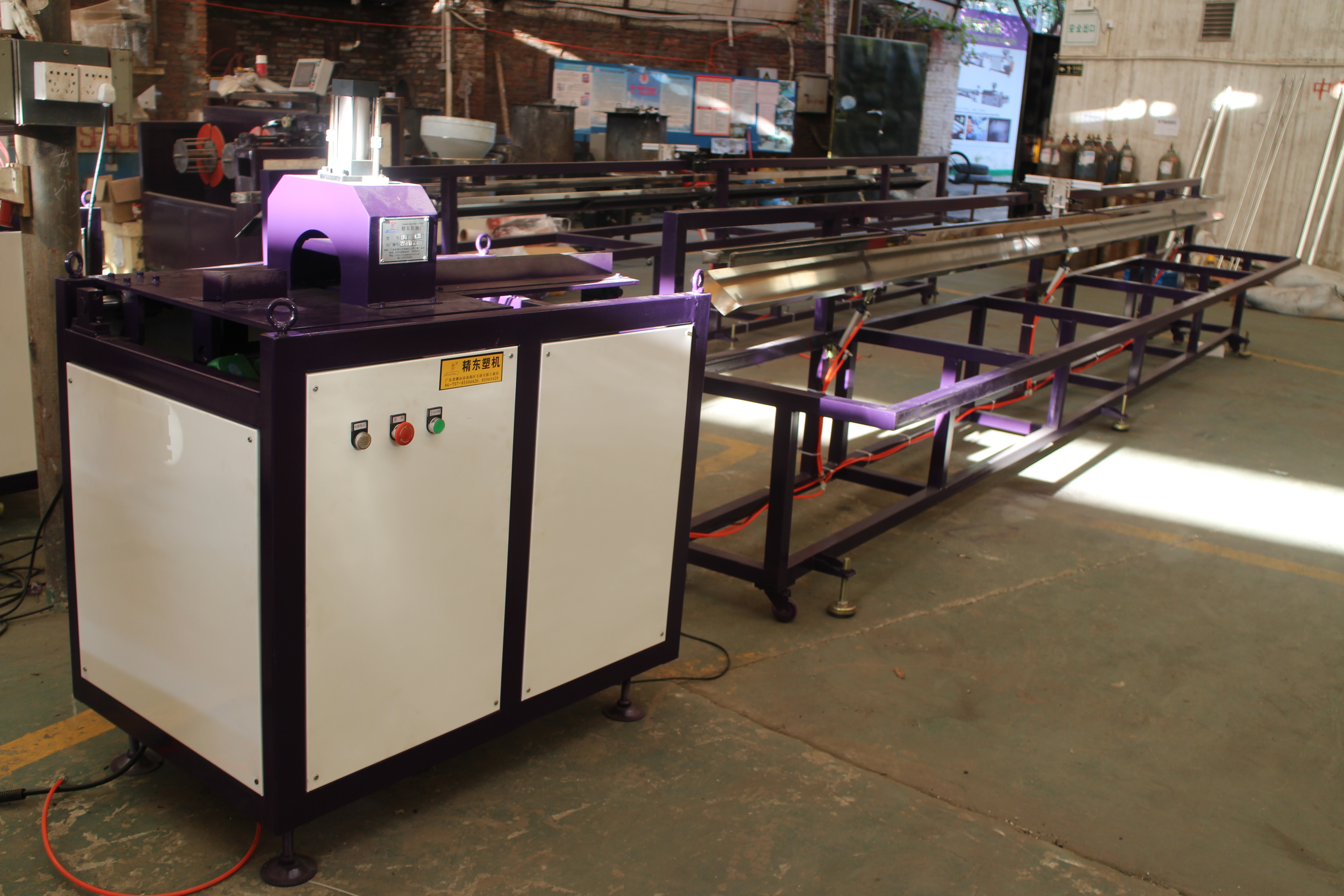

For rigid strip: extruder + mold → vacuum sizing table and cooling bath → drawing unit → cutting unit → discharge rack.
Rigid strip extruder
Model |
（㎜） Screw diam. |
（kW） Motor power |
(kW) Drawing power |
（㎏/h） Output |

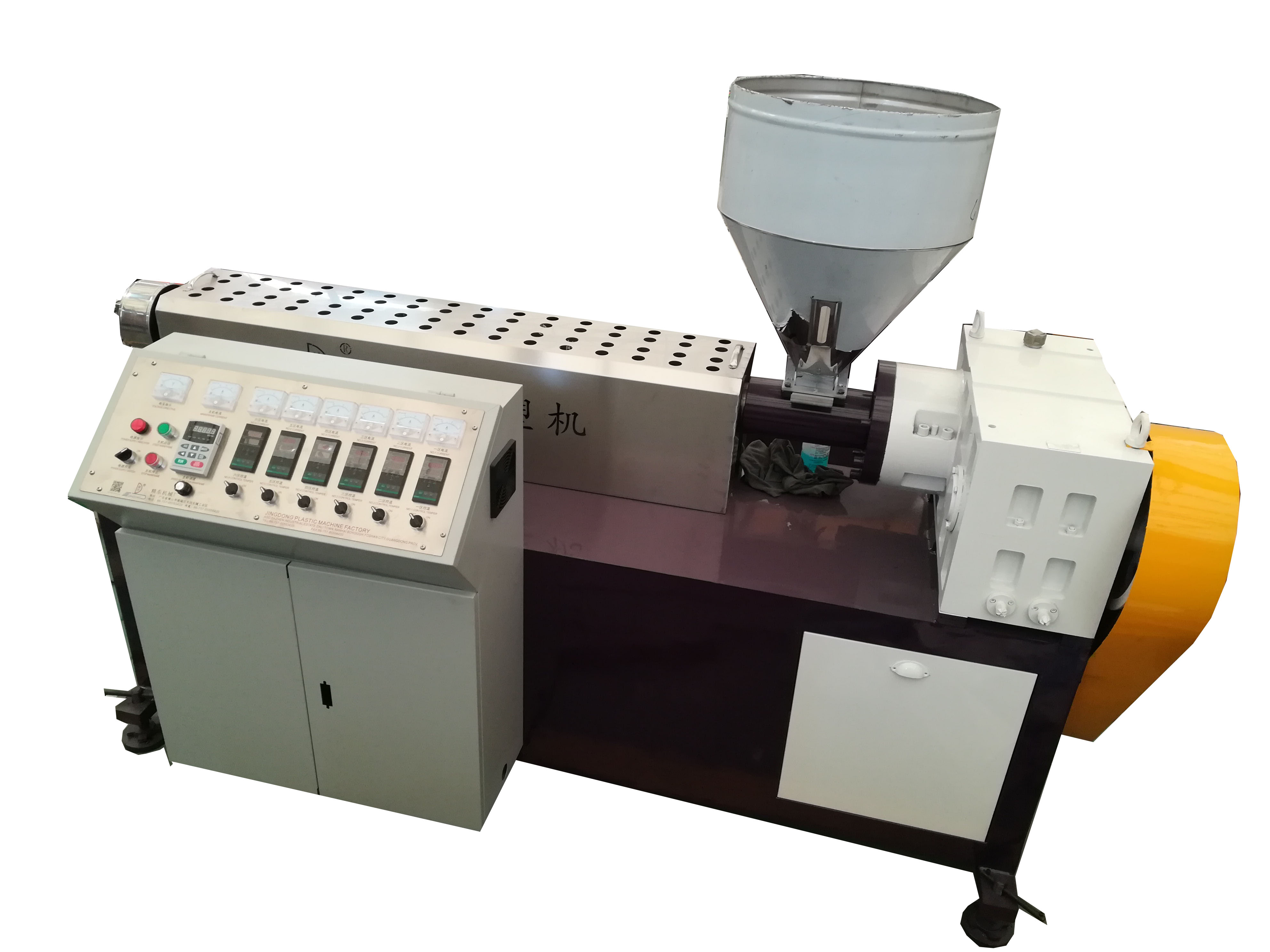

Single screw extruder |
45 | 7.5 ~ 11 | 0.75 ~ 1.5 | 25 ~ 50 |
| 50 | 11 ~ 15 | 0.75 ~ 1.5 | 50 ~ 80 | |
| 55 | 15 ~ 18.5 | 1.5 ~ 2.2 | 80 ~ 110 | |
| 65 | 18.5 ~ 22 | 1.5 ~ 2.2 | 100 ~ 140 | |
| 70 | 22 ~ 30 | 1.5 ~ 2.2 | 150 ~ 200 | |
| 80 | 30 ~ 37 | 1.5 ~ 2.2 | 200 ~ 230 | |
| 90 | 37 ~ 45 | 1.5 ~ 2.2 | 200 ~ 280 | |
Twin screw extruder |
SJZ51/105 | 22 | 1.5 | 50 ~ 140 |
| SJZ55/110 | 22 | 1.5 | 50 ~ 140 | |
| SJZ65/132 | 37 | 2.2 | 250 ~ 300 |
