The useful raw materials for the line are: PVC, PE, PP, PS, ABS, PC and EVA, etc. 2 or 3 kind of plastics

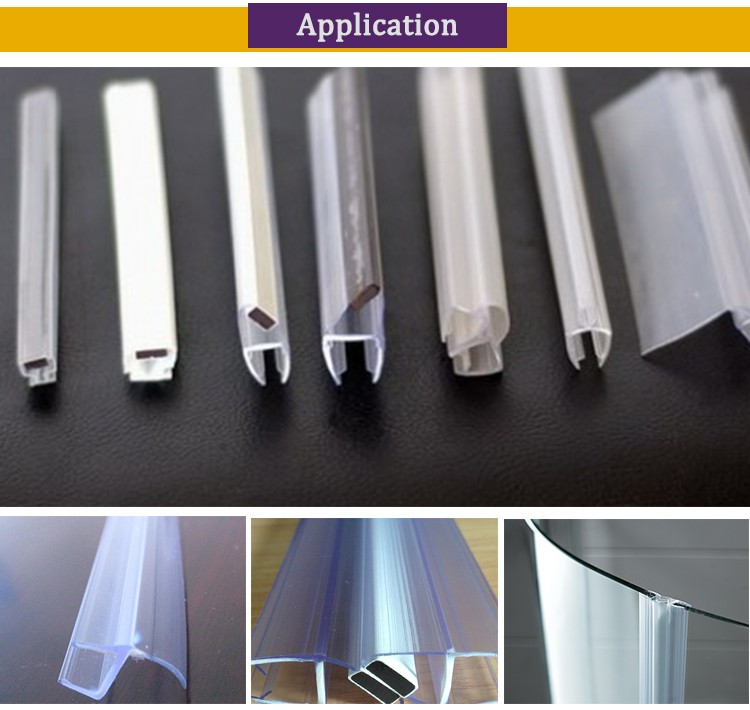

can be selected for co-extrusion.The line is used to produce flexible/rigid in one sealing strip for bathroom,
windscreen wiper, wire trunk, collapsing tag etc.
Relate production:

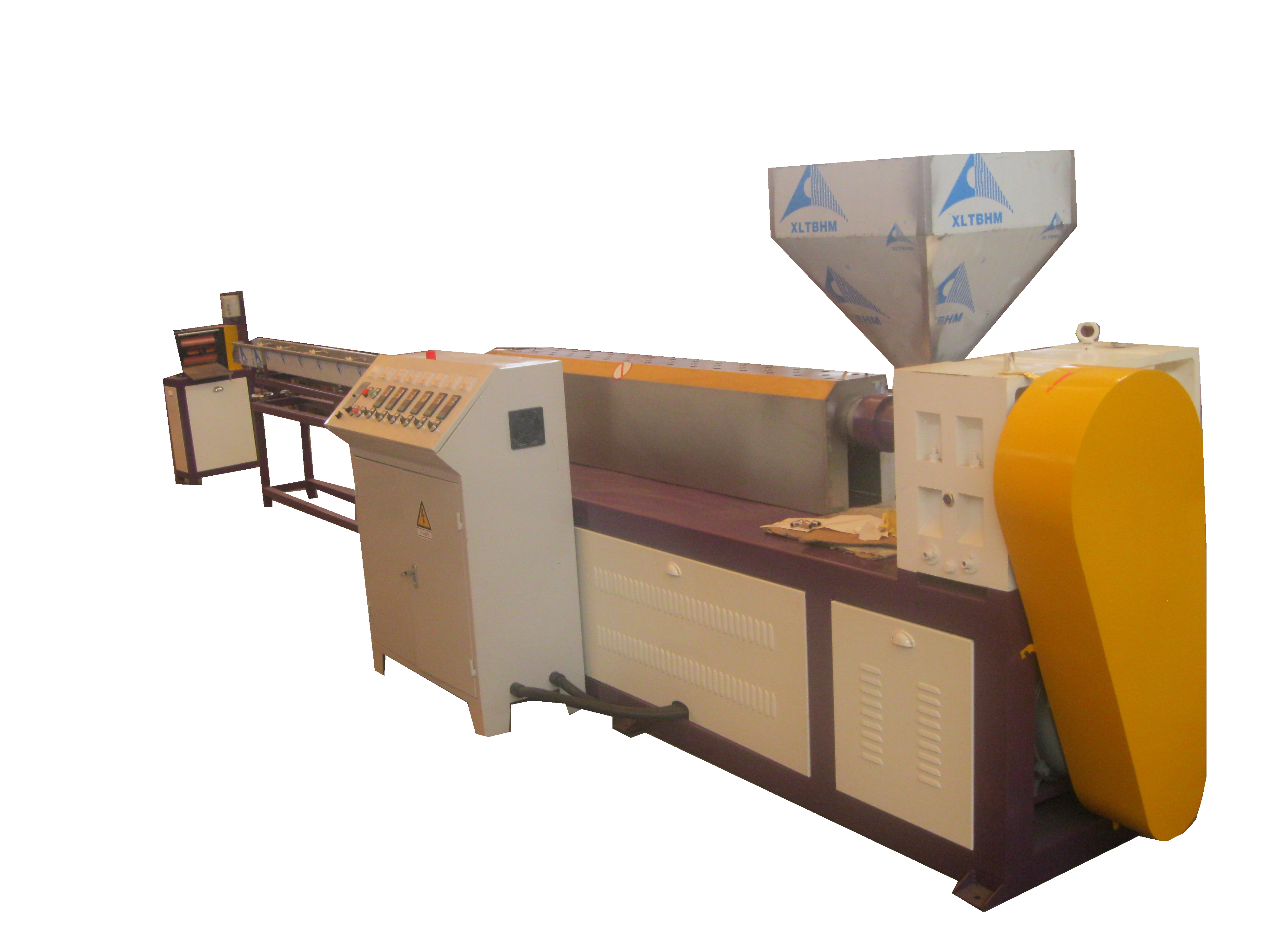

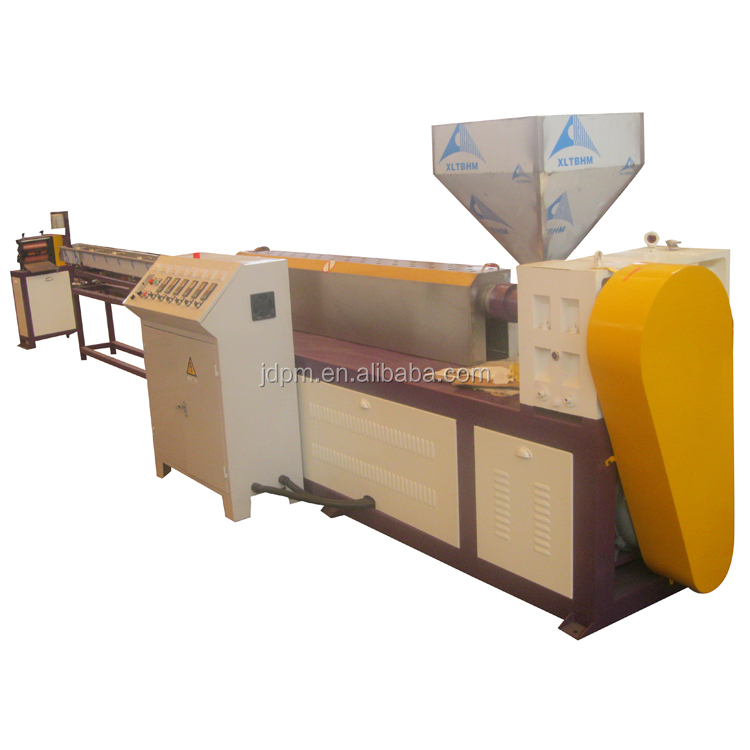

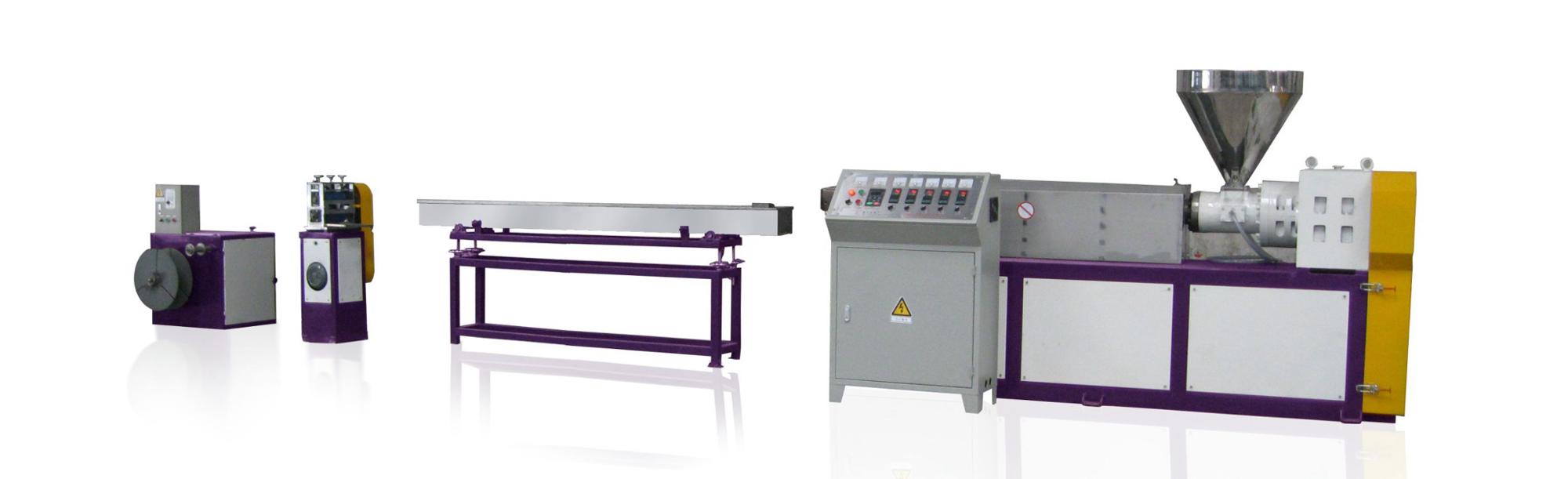

Model:PVC Door Window Sealing Strip Extrusion Line PVC Profile Making Machine |
||||
Item | Unit | Parts |
Number |
Description |

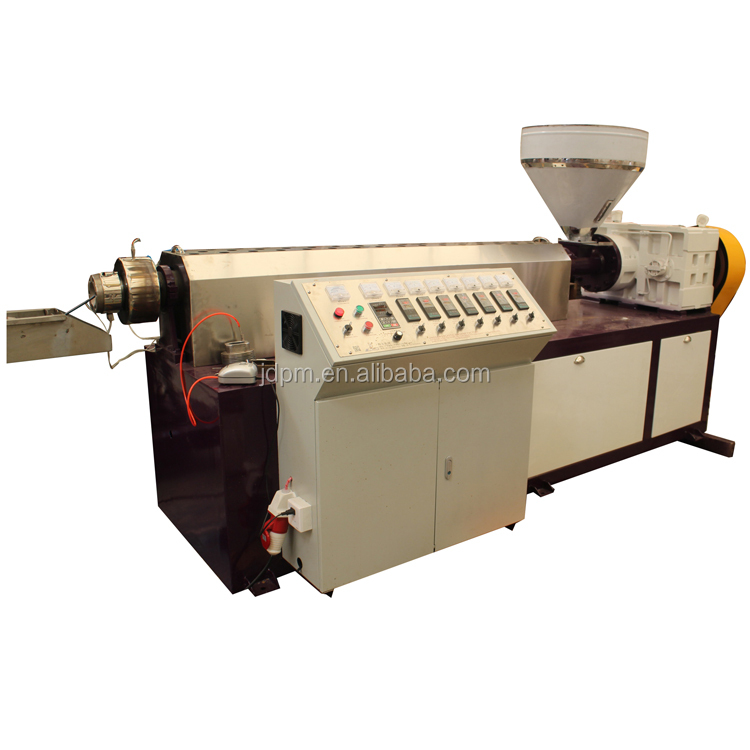

1 | SJ65Extruder | screw & barrel | 1 set |
Φ65mm, L/D=28:1, 38CrMoAIA, nitriding, screw: Cr plated |
gear box | 1 set | gear hardening, polished, horizontal | ||
Machine frame | 1 set | Steel structure | ||
Main motor | 1 set | 18.5kw frequency converter | ||
Control panel | 1 set | 7 zone temperature control, 5 air cooling | ||
3 |
Vacuum sizing table |
1 set |
Length: 2.5 meters Vacuum pump: 2.2kw |
|
4 | Drawing unit | 1 set | 1.5kw frequency varying | |

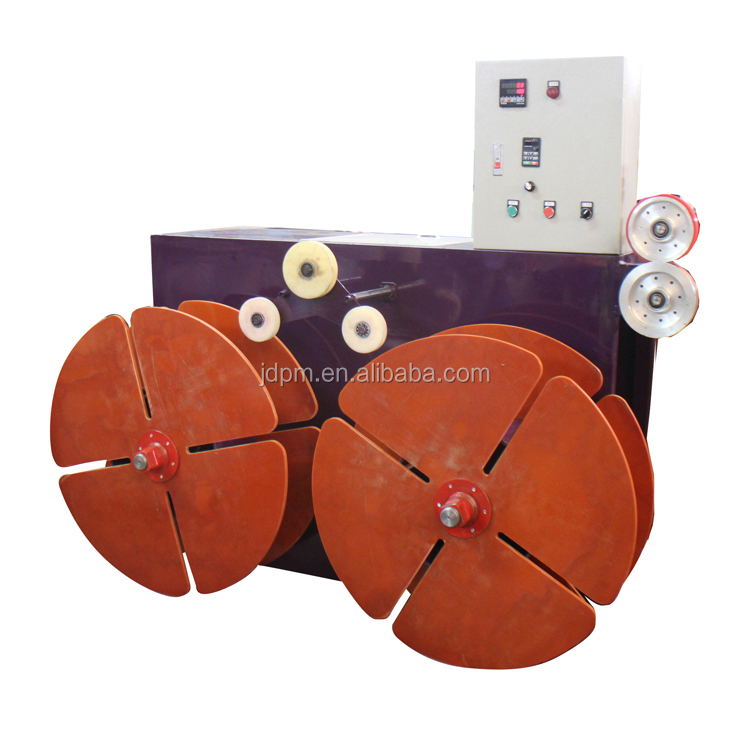

5 | Auto weight and winding machine | 1 set |
Convey unit: 0.75kW-4p motor, 2meter length. Winding unit: 0.75kW-4, frequency conversion control |
Before sale
1.We provide service for consulting on end product analysis and facilities selection.
2.We can arrange you to visit our local clients to see how our facilities work.
After purchasing
1.We can provide ways on materials purchase.
2.Free offering of product formulation.
3.We provide service for training on process.
4.Before delivery, trial production to give qualified end product.
5.OEM service to meet client’s special demanding
After sales
1.Technical advisory services for a long time
2.The machine will have one year of warranty.During the warranty period,if any part of machine is broken
not by man made.We will replace it with the new one freely for you.The warranty date will begin since the
machine be sent out upon we receive the B/L.
Q: How do I buy from your company?
A: When you find the product you want, just send inquiry to us, and we will reply you within 24 hours .then send you order conformation information, when you confirm to buy the products, we will prepare the proforma invoice and bank details for you. then you paid.
Q: What kind of payment term you can accept for order ?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer), Western Union. finish the payment.
Q: How can you guarantee my payment ?
A : Our company is ALIBABA GOLD SUPPLIER. and ALIBABA have make us done enterprise authentication. We always adhere to the "customers foremost, quality first" of aim, pay attention to honesty, the pursuit of excellence.
Q: How long it will take before you ship the products?
A: We normally ship your order within one month since receving your payment.
