pvc/pu garden hose machine pvc fiber reinforced hose extruding line
pvc/pu garden hose machine pvc fiber reinforced hose extruding line
Product Description
1.The line adopts advanced technology to result both high effect and precise operation.
2.There are very good preperties for PU tube to against presure,vibration,corrosion,wearing,aging and
bending.Further more,the tube is light in weight,easy to tubing and accurate siaze.

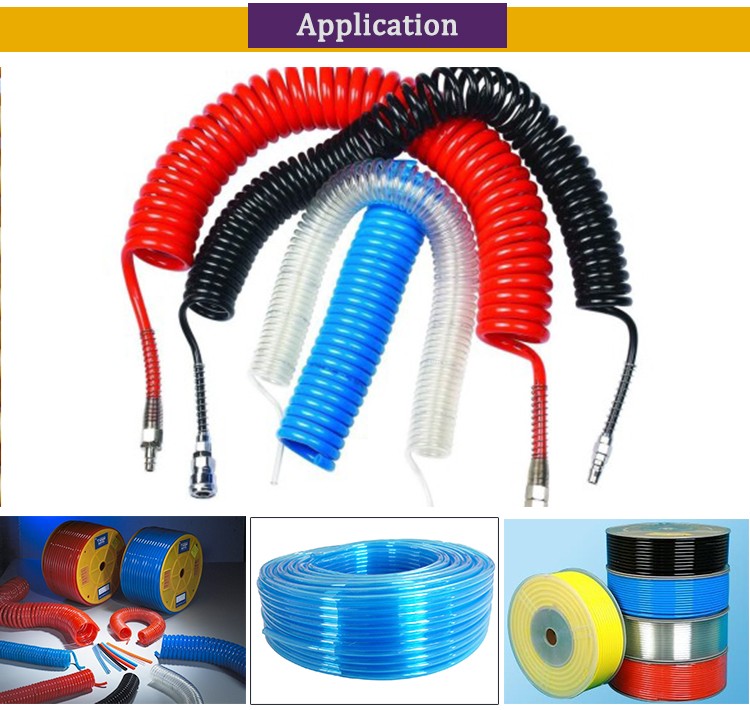

They are widely used in compress system,pneumatic products,braking tube,liquid transportation and
protecting jacket.
| pvc/pu garden hose machine pvc fiber reinforced hose extruding line | ||||
| Item | Unit | Parts | QTY | Description |

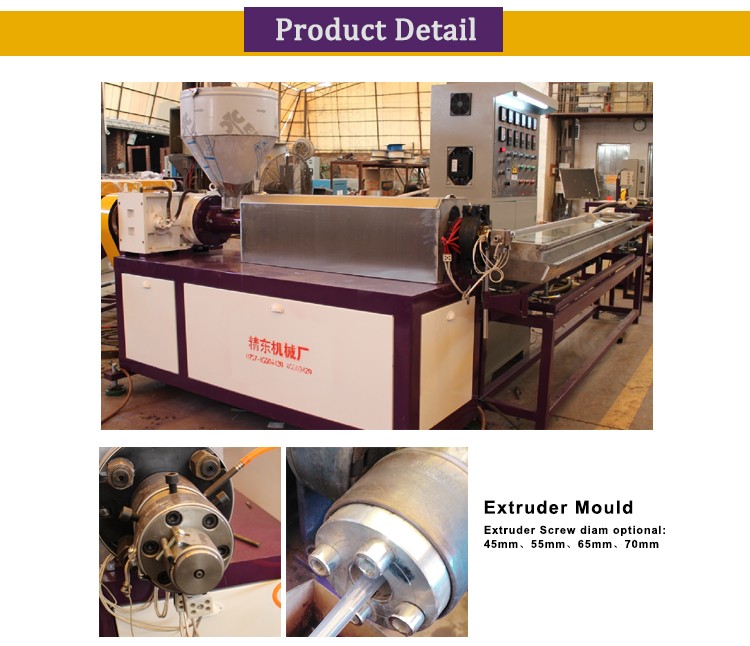

| 1 | SJ45 Extruder | screw & barrel | 1 set | screw: Ø45 mm, L/D=25:1,38CrMoAlA, hardening and tempering, nitriding |
| gear box | 1 set | gear hardening, polished, horizontal | ||
| main motor | 1 set | 11 kw-4 pole, frequency varying | ||
| machine frame | 1 set | steel profile welding | ||
| control panel | 1 set | 5 zone temperature control, 3 air cooling | ||

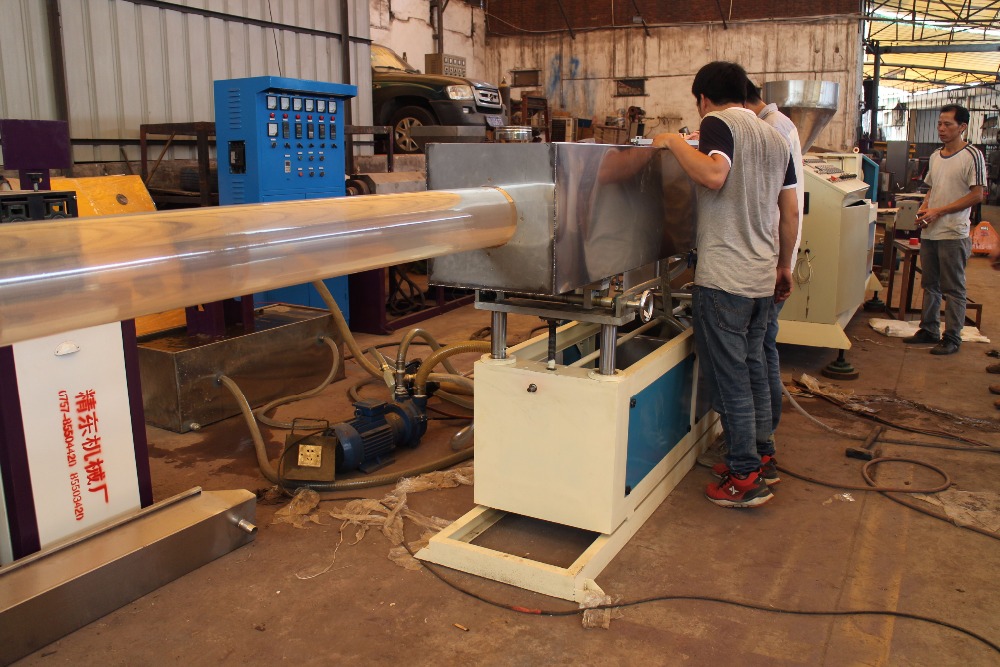

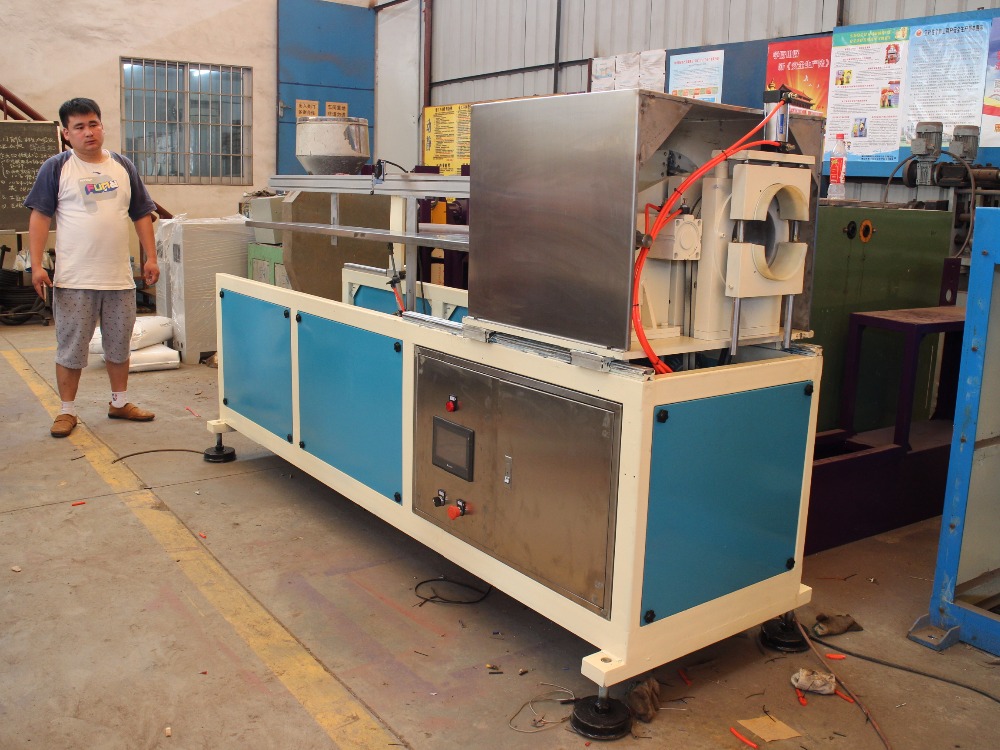

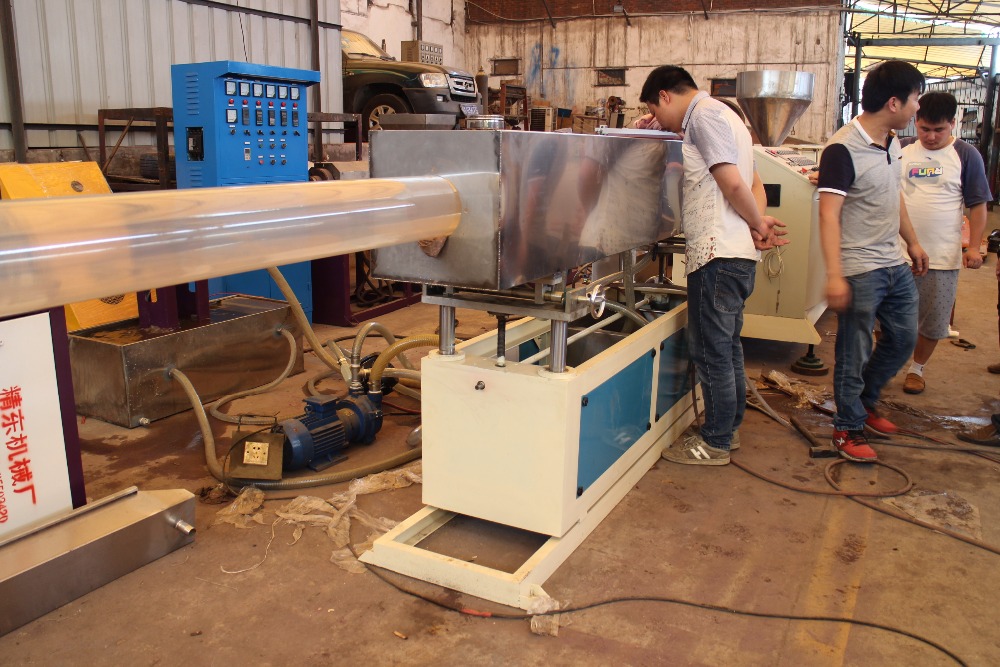

| 2 | Vacuum sizing table | 1 set | length: 4 meters surface material: stainless steel vacuum pump: 3 kw 3-dimension adjustable | |

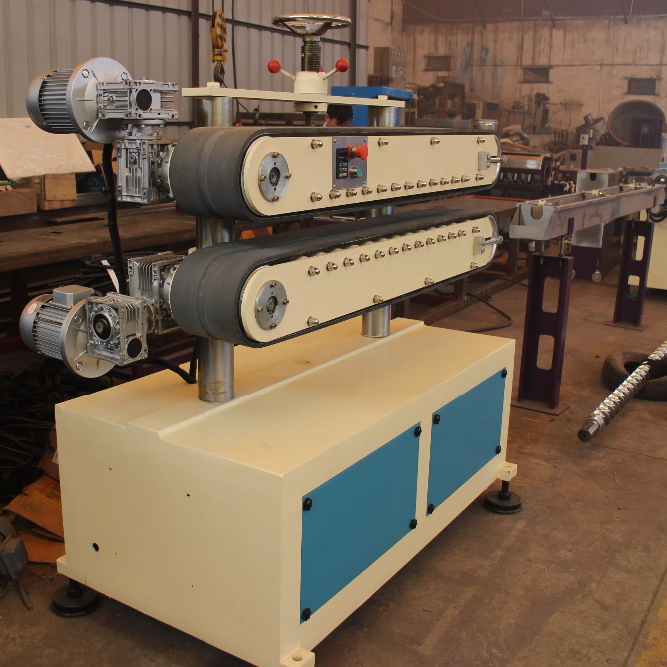

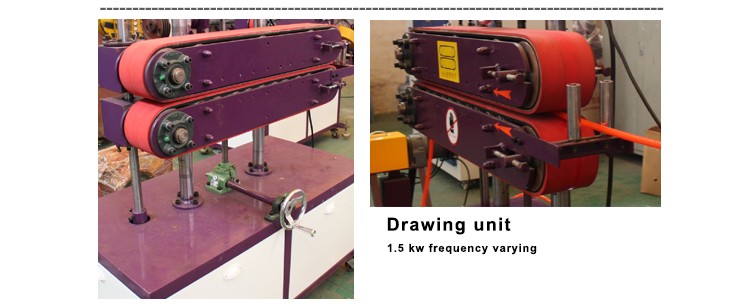

| 3 | Drawing unit | 1 set | 1.5 kw frequency varying | |
| 4 | Take-up unit | 1 set | 1.5 kw frequency varying | |
Model | Screw diam(mm) | L/D | Motor Power (kw) | Heating zone | Cooling bath length(m) |
SJ45 | 45 | 28:1~30:1 | 11 | 5 | 5 |
SJ55 | 55 | 28:1~30:1 | 15 | 5 | 5 |
SJ65 | 65 | 28:1~30:1 | 22 | 6 | 5 |
Our Services
Before sale
1.We provide service for consulting on end product analysis and facilities selection.
2.We can arrange you to visit our local clients to see how our facilities work.
After purchasing
1.We can provide ways on materials purchase.
2.Free offering of product formulation.
3.We provide service for training on process.
4.Before delivery, trial production to give qualified end product.
5.OEM service to meet client’s special demanding
After sales
1.Technical advisory services for a long time
2.The machine will have one year of warranty.During the warranty period,if any part of machine is broken
not by man made.We will replace it with the new one freely for you.The warranty date will begin since the
machine be sent out upon we receive the B/L.

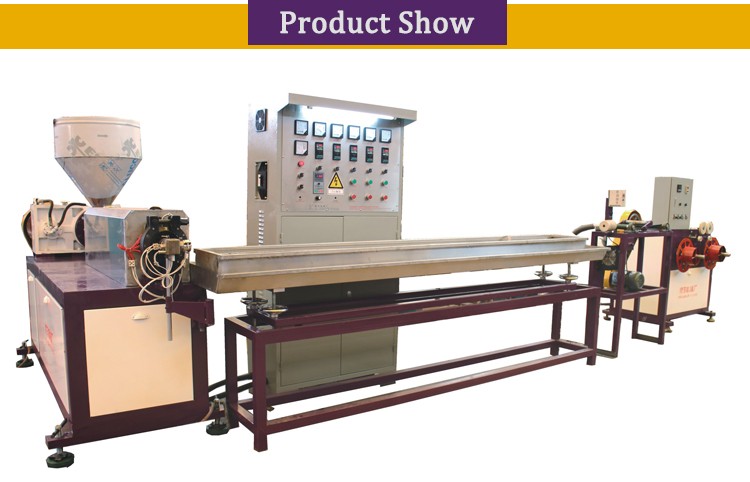

Detailed Images

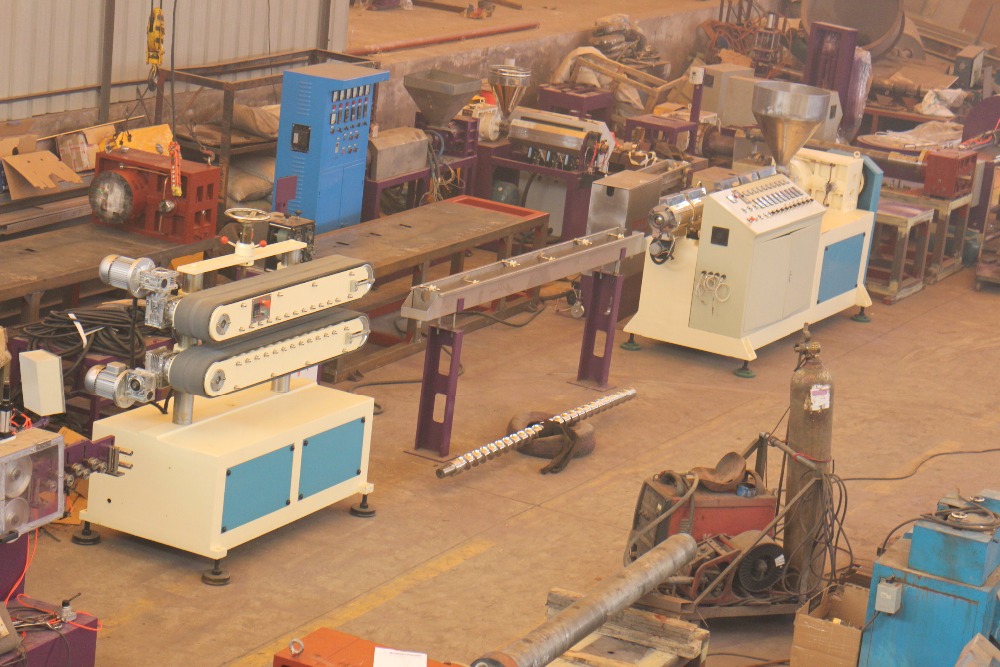

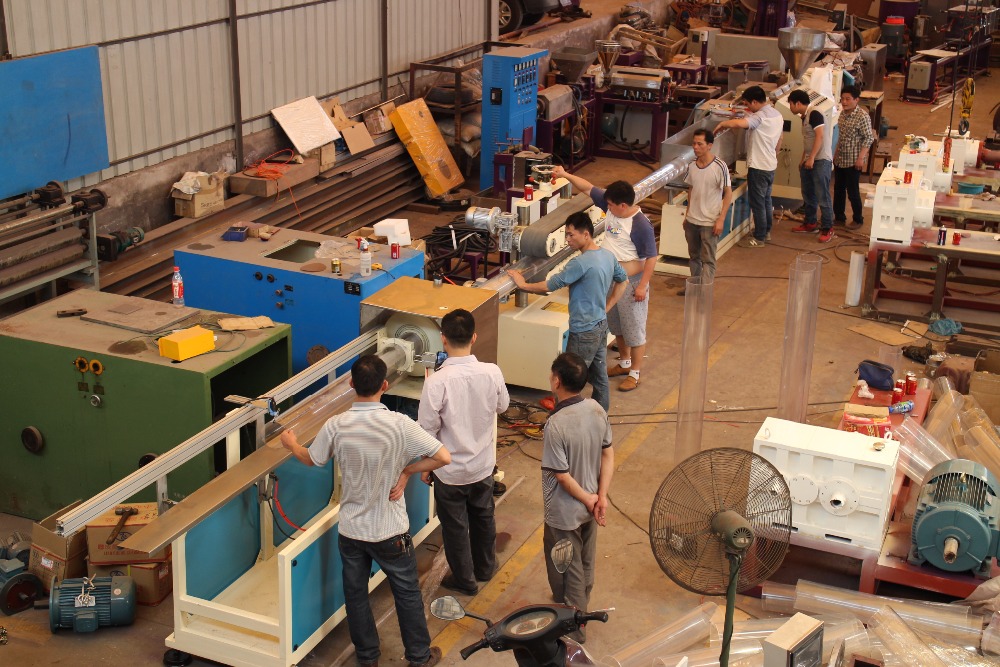

Company Information
