PVC soft pipe extruder
1. Good plasticization effect and fast production speed.
2. Both granular and powder materials can be produced.
3. It can be co-extruded with multiple layers or multi-color lines.
2. Both granular and powder materials can be produced.
3. It can be co-extruded with multiple layers or multi-color lines.

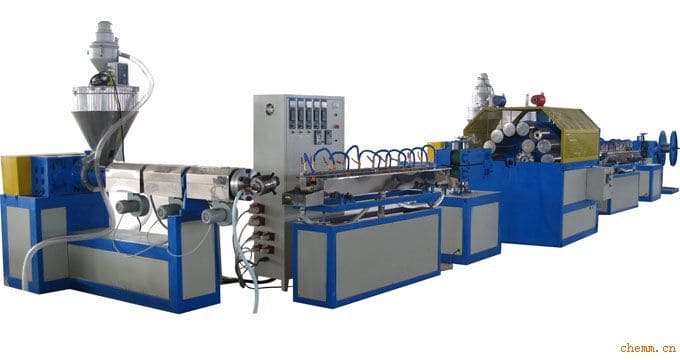

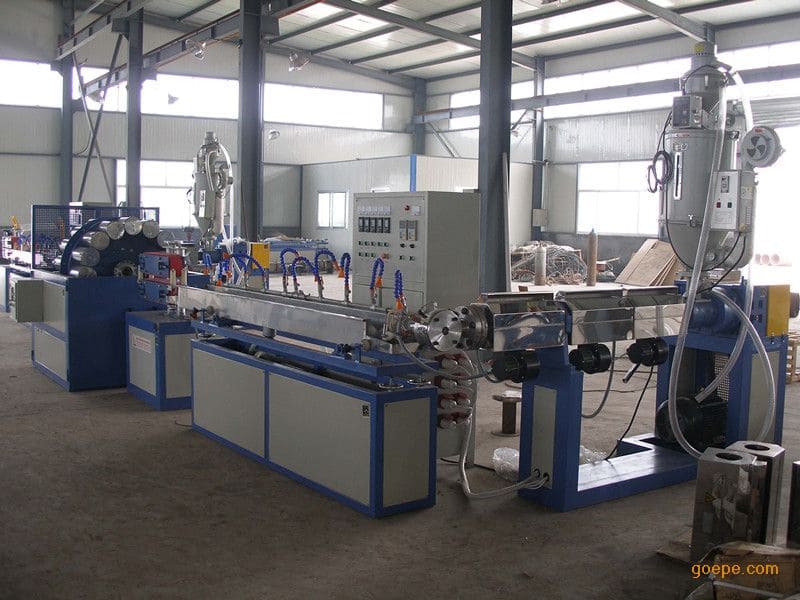

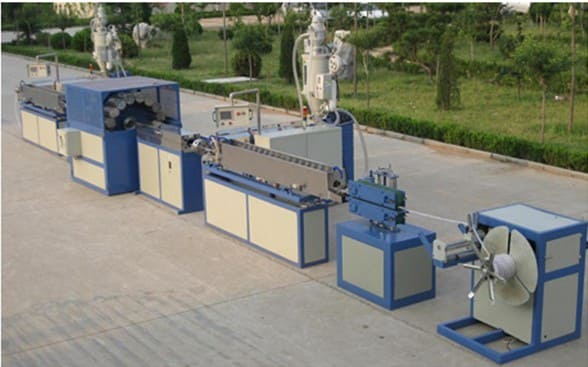

flexible tube extruding line
Compose: extruder → mold → cooling bath → drawing unit → take-up unit.
The extruding line is used to produce various flexible plastics tubes. Specially designed screw enables well plasticizing, and easy molding. The line has advantages of stable, high-output and easy operation.
| Model | Screw diam.（㎜） |
L/D | motor power（kW） | Heating zone |
output（㎏/h） |
| Single extruder | 45 | 25：1~28：1 | 11 | 5 | 30~50 |
| 50 | 25：1~28：1 | 11 | 5 | 40~60 | |
| 65 | 25：1~28：1 | 18.5 | 5 ~ 6 | 60~80 | |
| 80 | 25：1~28：1 | 30 | 7 ~ 8 | 80~120 | |
| Bi-extruder | 45/30 | 25：1~28：1 | 11/3 | 5，3 | 40~55 |
| 50/30 | 25：1~28：1 | 15/3 | 5，3 | 50~70 | |
| 65/35 | 25：1~28：1 | 18.5/4 | 6，4 | 60~90 | |
| 80/45 | 25：1~28：1 | 30/7.5 | 7，4 | 80~150 |

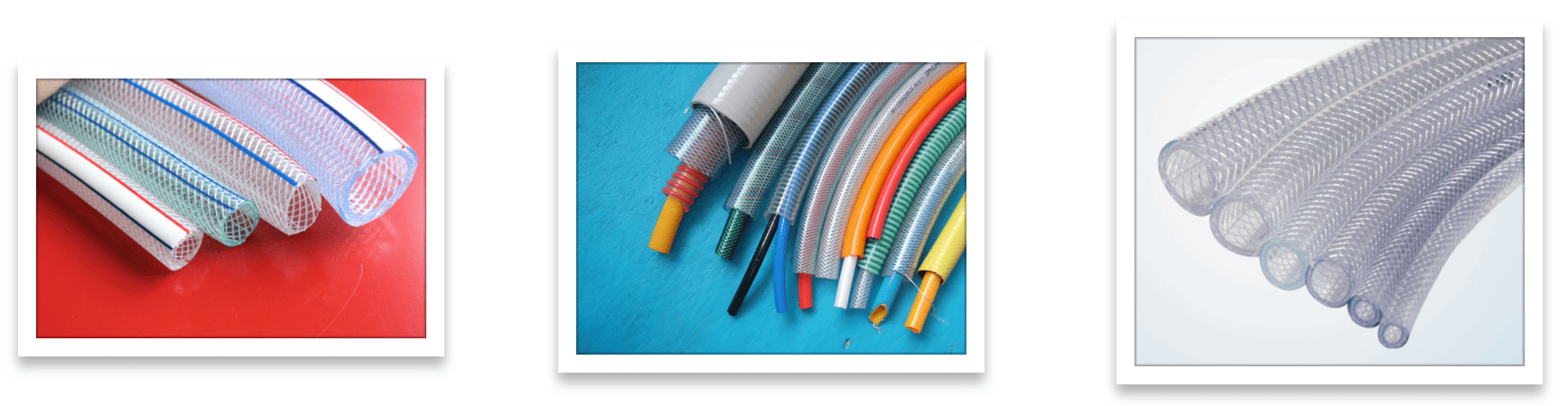

Sample：
[]
