PVC Sealing Strip Line/pvc edge banding extruder/PVC Sealing Strip profile Production Line
PVC Sealing Strip Line/pvc edge banding extruder/PVC Sealing Strip profile Production Line
Product Description
Application
This produciotn line is mainly use to produce sealing strip, such as furniture strips, windows seal strip, door seal strip etc.
we will design the production line according to your needs.
Specification
| Item | Unit | Part(s) | Number | Description |

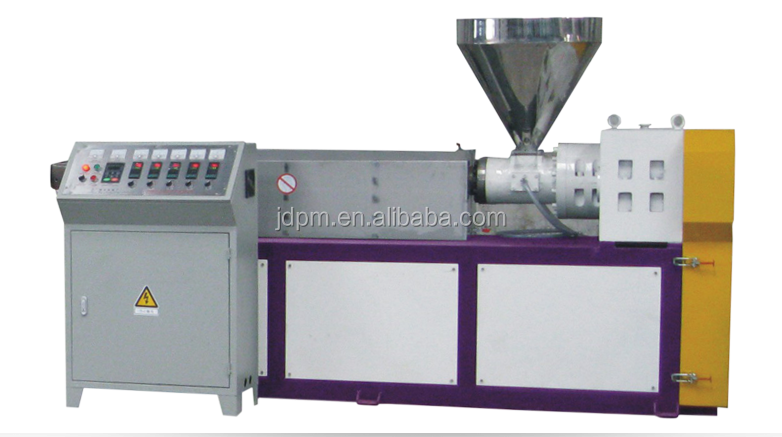

| 1 | Main Unit | Screw & Barrel | 1 set | Φ50 mm, L/D=28/1, 38CrMoAIA, nitriding, screw: Cr plated |
| Gear Box | 1 | gear hardening, polished, horizental | ||
| Machine Frame | 1 | steel profile welding | ||
| Motor | 1 | 11 kw, frequency varying | ||
| Control Panel | 1 | separated, 5 zone temperature control, 4 air cooling | ||

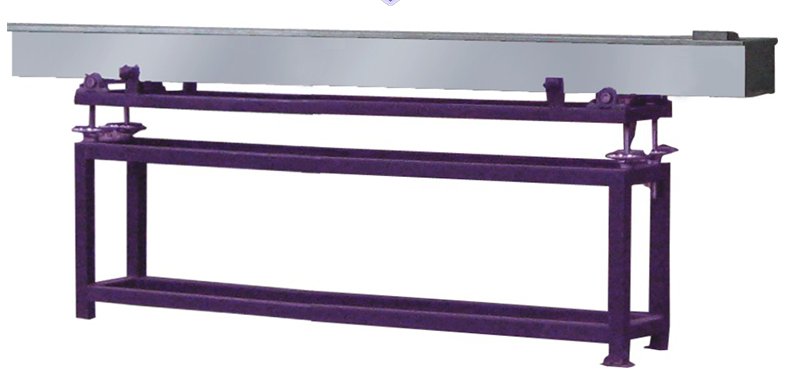

| 2 | Cooling Bath | 1 | 5 meters long, stainless steel, 3 dimensional adjustable | |
| 3 | Drawing Unit | 1 set | dual-wheel drawing, motor: 0.75 kw, frequency varying | |

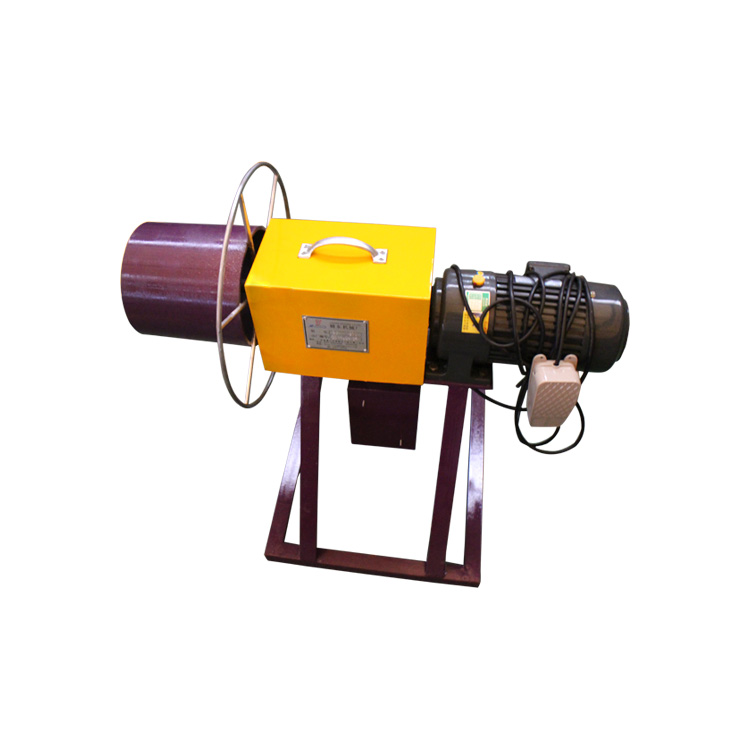

| 4 | Take-up Unit | 1 set | torque motor, photo replacement, auto fixed length alarming |

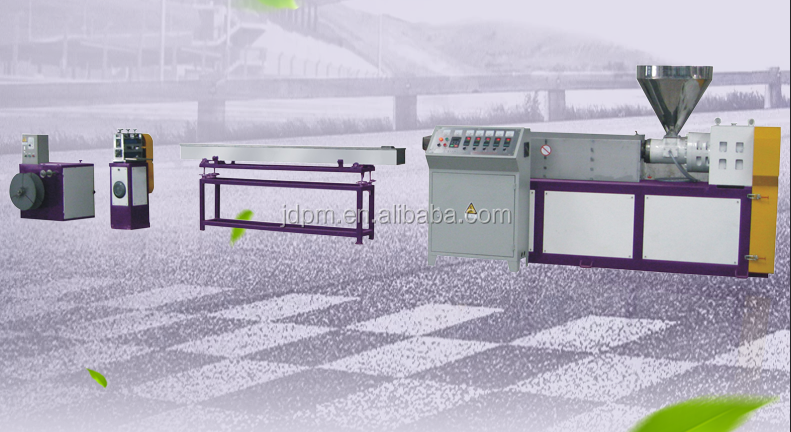

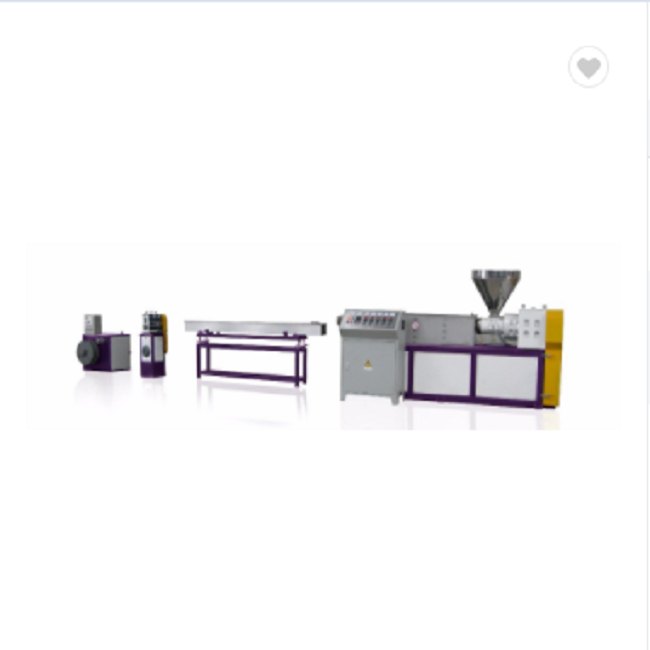

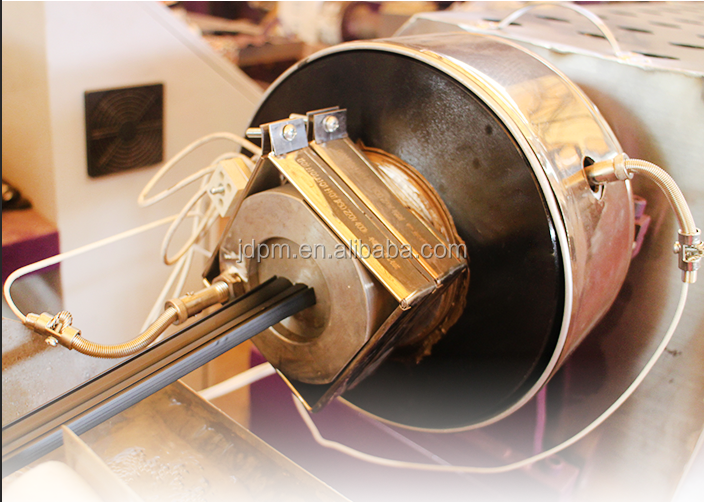

The whole machine photo

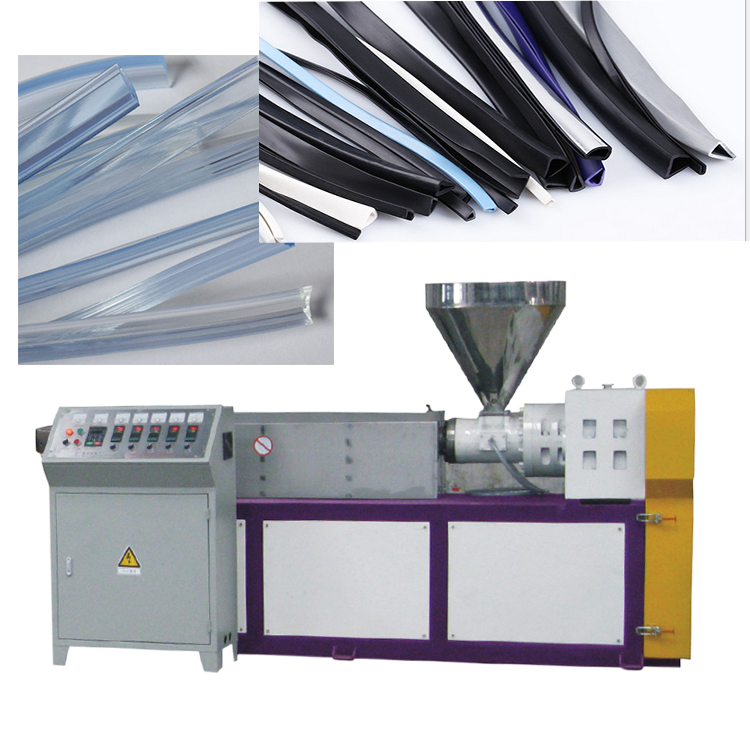

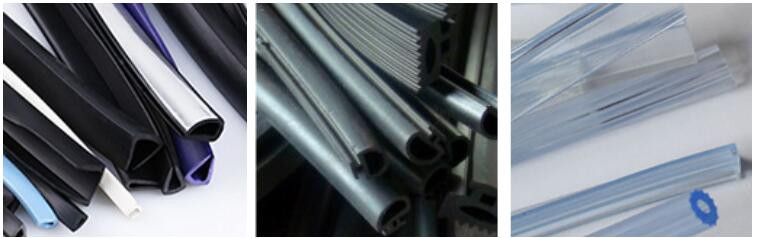

The end products
Our Services
Before sale
1.We provide service for consulting on end product analysis and facilities selection.
2.We can arrange you to visit our local clients to see how our facilities work.
After purchasing
1.We can provide ways on materials purchase.
2.Free offering of product formulation.
3.We provide service for training on process.
4.Before delivery, trial production to give qualified end product.
5.OEM service to meet client’s special demanding
After sales
1.Technical advisory services for a long time
2.The machine will have one year of warranty.During the warranty period,if any part of machine is broken
not by man made.We will replace it with the new one freely for you.The warranty date will begin since the
machine be sent out upon we receive the B/L.
Our advantages
Company Information
Packaging & Shipping
Buying Guides
Q: How do I buy from your company?
A: When you find the product you want, just send inquiry to us, and we will reply you within 24 hours .then send you order conformation information, when you confirm to buy the products, we will prepare the proforma invoice and bank details for you. then you paid.
Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer), Western Union. finish the payment.
Q: How can you guarantee my payment ?
A : Our company is ALIBABA GOLD SUPPLIER. and ALIBABA have make us done enterprise authentication. We always adhere to the "customers foremost, quality first" of aim, pay attention to honesty, the pursuit of excellence.
Q: Can I buy different models in one time?
A: Yes we can combine the shipments.
Q: How long it will take before you ship the products?
A: We normally ship your order within 24-48 hours since receving your payment.
Q: If I have any questions ,how can I contact you?
A: You can always contact us with your problems.by email or phone.
