PVC Sealing Strip Extrusion line, PVC Sealing Strip Extrusion , shower door pvc seal production line

750f203616dd8f70f86e88b9cd62a8e6

PVC Sealing Strip Extrusion line, PVC Sealing Strip Extrusion , shower door pvc seal production line

plastic shower door magnetic seal strip manufactshower door seal strip manufacturing machine

Product Description

The useful raw materials for the line are: PVC, PE, PP, PS, ABS, PC and EVA, etc. 2 or 3 kind of plastics

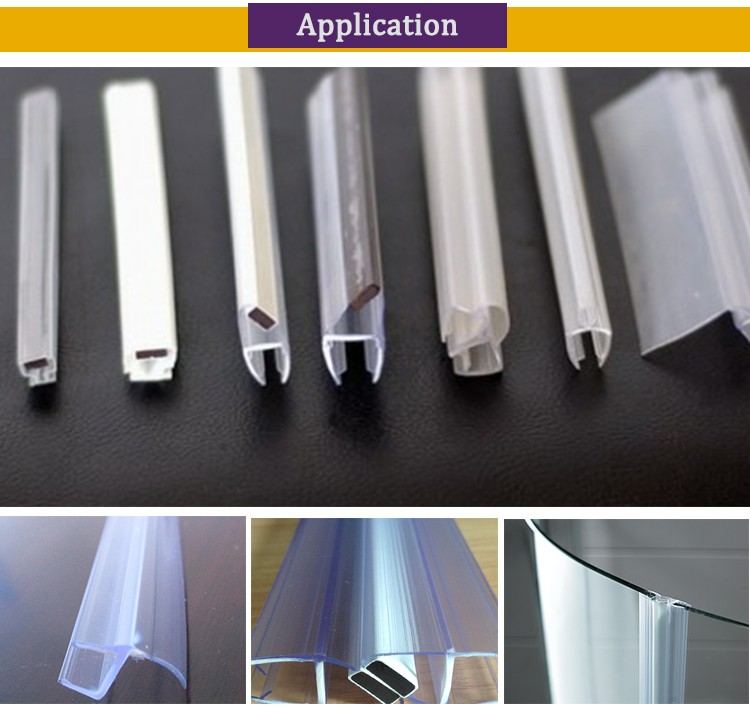

can be selected for co-extrusion.The line is used to produce flexible/rigid in one sealing strip for bathroom,

windscreen wiper, wire trunk, collapsing tag etc.

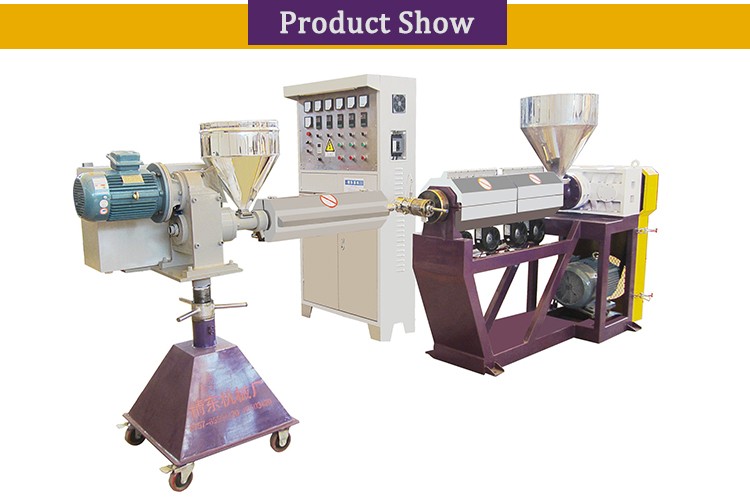

 Model:SJ50/45*2  plastic shower door magnetic seal strip manufactshower door seal strip manufacturing machine

Item Unit Parts

Number

Parameter
1 SJ50Extruder screw & barrel 1 set

Φ50mm, L/D=25:1,

38CrMoAIA, nitriding, screw: Cr plated

gear box 1 set  gear hardening, polished, horizontal
Machine frame 1 set  Steel structure
Main motor 1 set  15kw frequency varying
Control panel 1 set  5 zone temperature control, 4 air cooling
2 SJ45Extruder*2 screw & barrel 1 set

Φ45 mm, L/D=25:1, 38CrMoAIA, nitriding,

screw: Cr plated

gear box 1 set  gear hardening, polished, horizontal
Machine frame 1 set  Steel structure
Main motor 1 set  7.5kw frequency varying
Control panel 1 set  3 zone temperature control, 2 air cooling
3

Vacuum sizing table

  1 set

Length: 2.5 meters
Surface material: stainless steel

3-dimension manual adjustable

Vacuum pump: 2.2kw

4 Drawing unit   1 set  1.5kw frequency varying

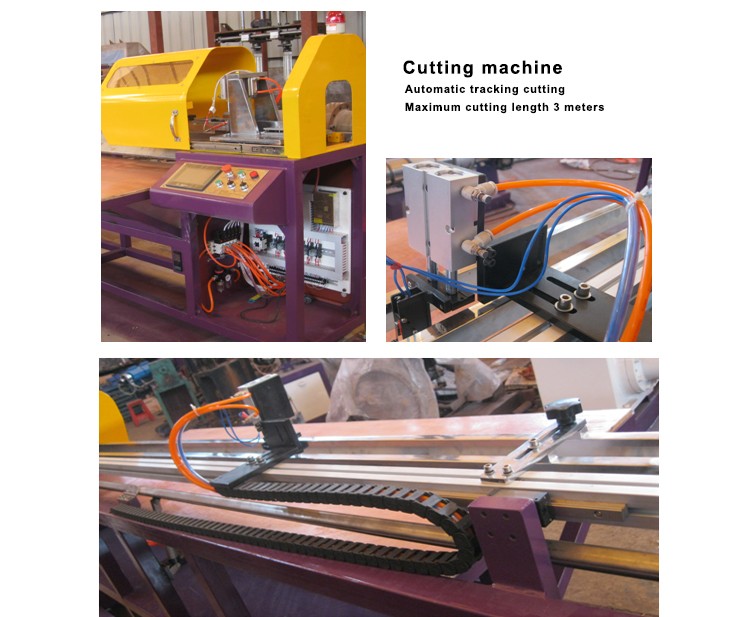

5 Cutting machine   1 set

automatic tracking fixed length cutting, maximum cutting length 3 meters

Our Services

Before sale
1.We provide service for consulting on end product analysis and facilities selection.
2.We can arrange you to visit our local clients to see how our facilities work.
After purchasing
1.We can provide ways on materials purchase.
2.Free offering of product formulation.
3.We provide service for training on process.
4.Before delivery, trial production to give qualified end product.
5.OEM service to meet client’s special demanding
After sales
1.Technical advisory services for a long time
2.The machine will have one year of warranty.During the warranty period,if any part of machine is broken

not by man made.We will replace it with the new one freely for you.The warranty date will begin since the

machine be sent out upon we receive the B/L.

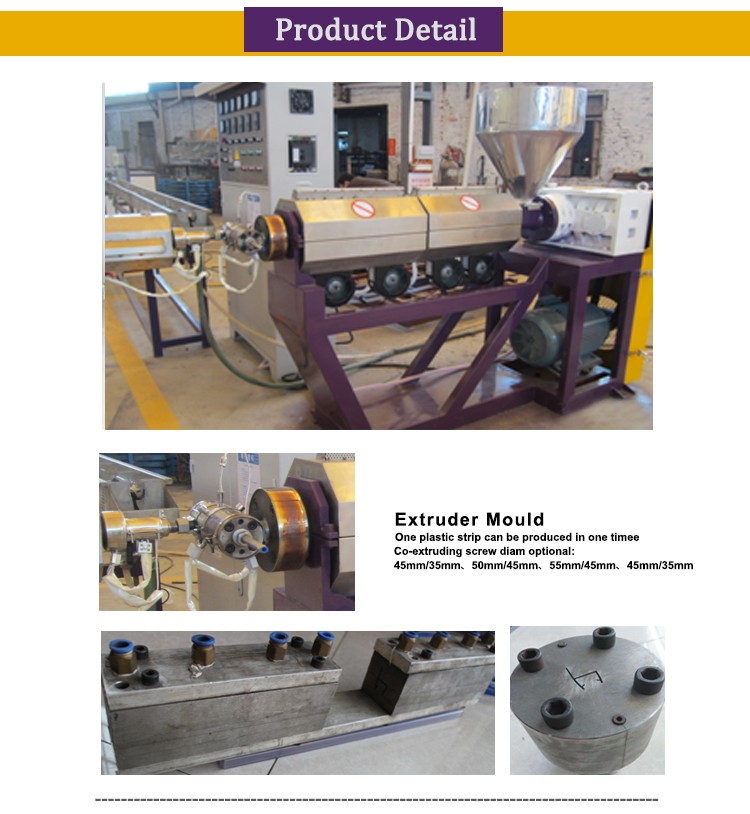

Detailed Images
