Ps PP PE PVC wood like extruder production line
Ps wood like extruder production line
Application
This line is a professional line to producce WPC(wood plastic composit) product. It is mainly used to produce the WPC window&door profile, foam profile, WPC floor, WPC wall panel and other WPC products. This line is featured for high automatic, steady performance, large output and high effiency.
This line does need WPC pellet. It can use mixed plastic and wood powder directly.
Material: PP/PE+wood powder, PVC+wood powder

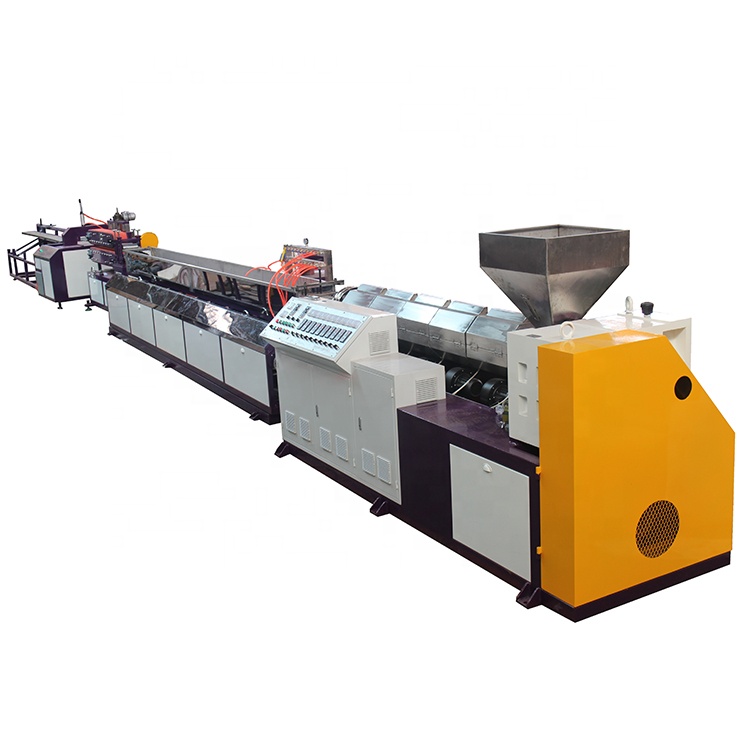

The whole machine picture
|
|

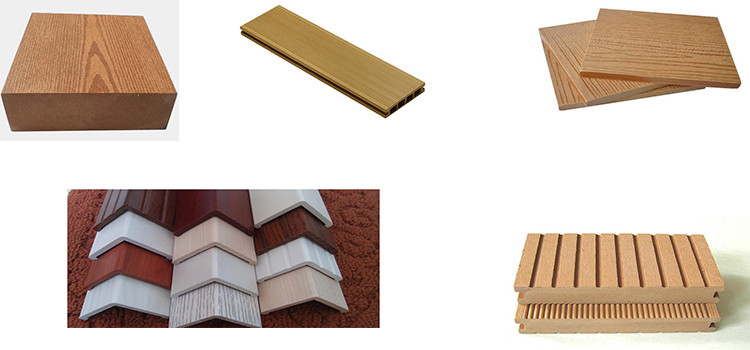

The end products
|
|
Specification
| Unit | Parts | Number |
Description |
|

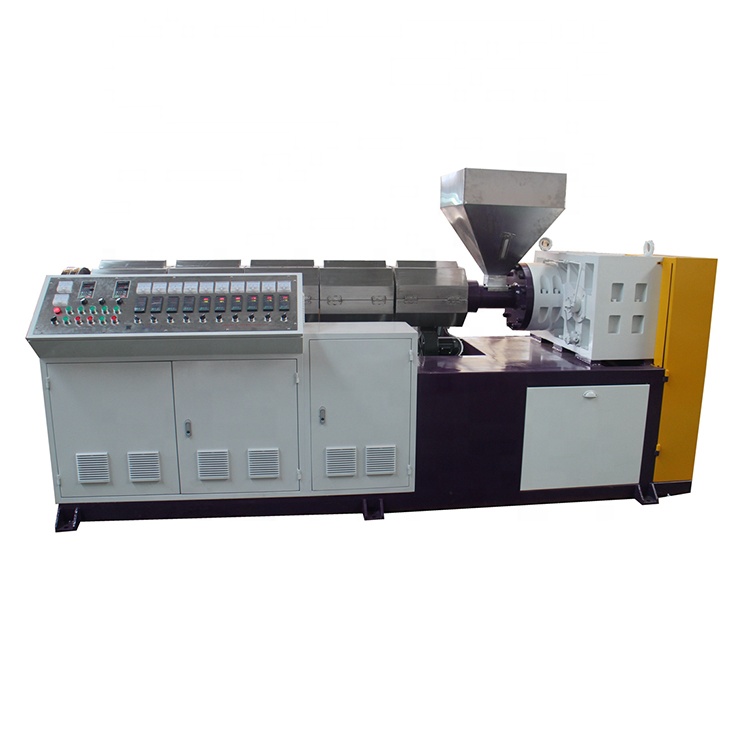

| 1 | Main Unit | Screw & Barrel | 1 set | Φ80 mm, L/D=25/1, 38CrMoAlA, nitriding, screw: Cr plated |
| Gear Box | 1 | gear haedening, polished | ||
| Protecting Cover | 1 | |||
| Suporting Frame | 1 | steel profile welding | ||
| Motor | 1 | 30 kw, frequency varying | ||
| Control Panel | 1 | separated, 8 zone temperature control, 4 air cooling | ||
| 2 | Vacuum Sizing Table | 1 | stainless steel, length: 6 meter, vacuum pump: 4 kw, 3-dimensional adjustable | |

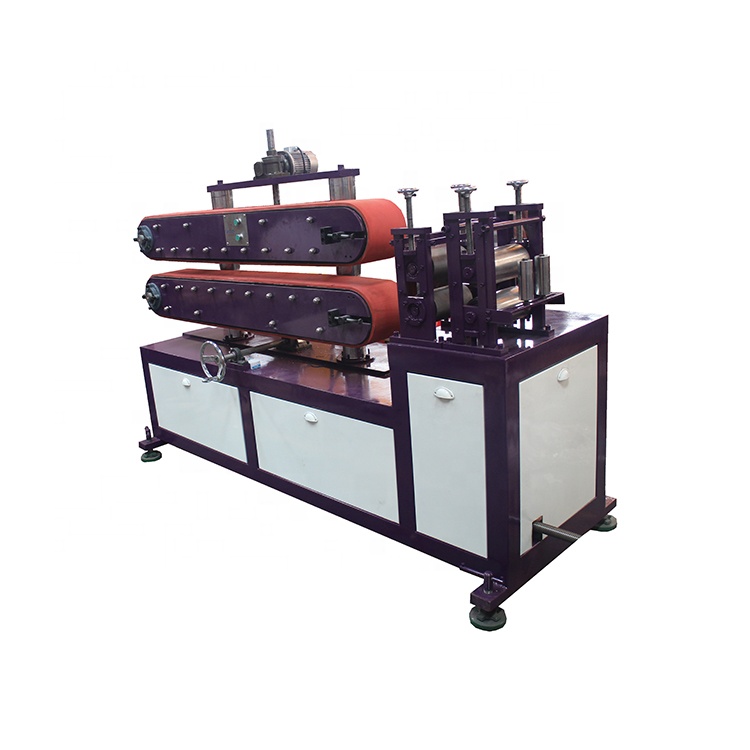

| 3 | Rubber-block Drawing Unit | 1 | motor: 2.2 kw, frequency varying, width: 160 mm, length: 2000 mm (validity: 1700 mm) | |
| 4 | Embossing Unit | 1 | embossing on both surface, fixed onto drawing unit with heating | |

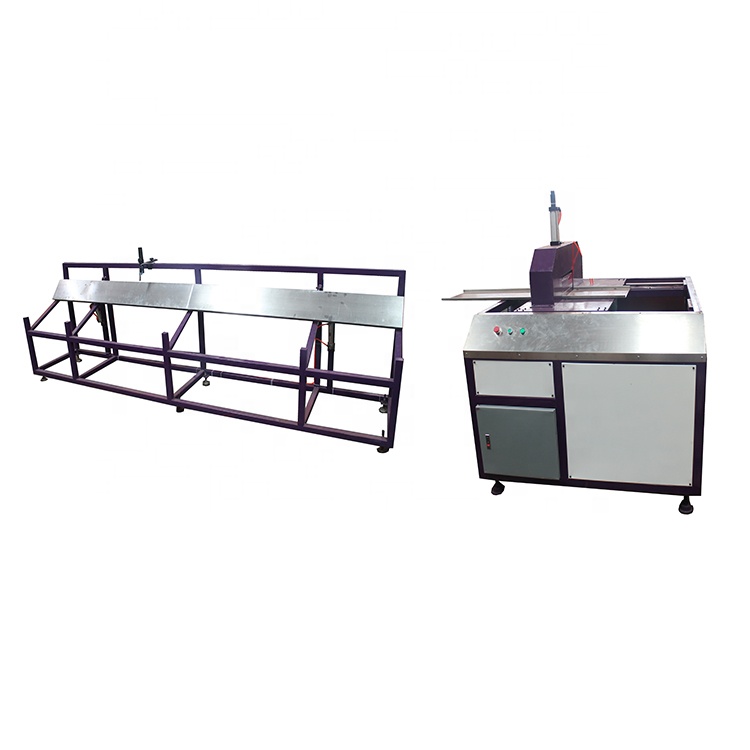

| 5 | Cutting Unit | 1 | effective stroke: 250 mm, auto-discharge rack: 6 meter, motor: 1.5 kw, frequency varying |

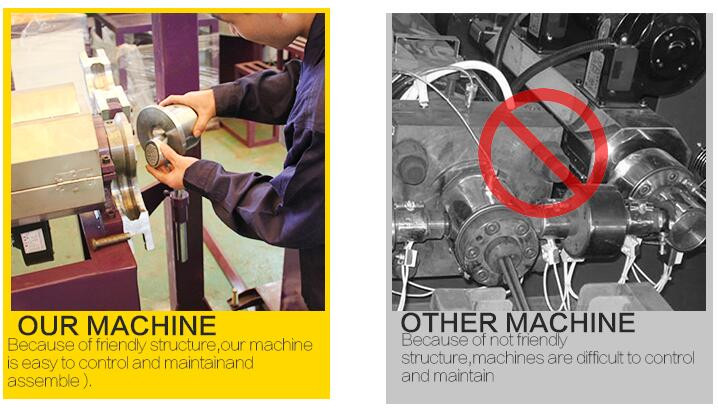

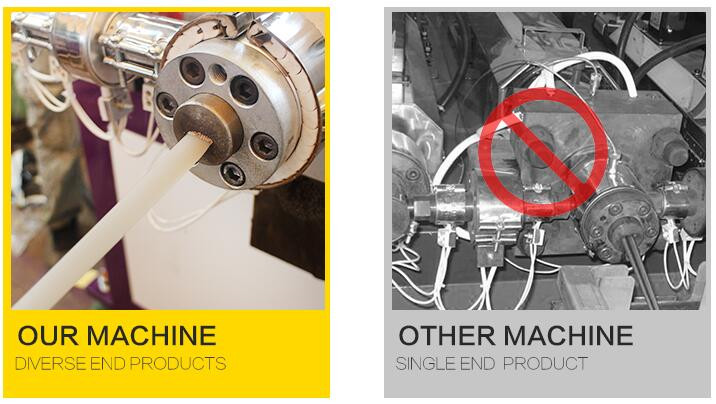

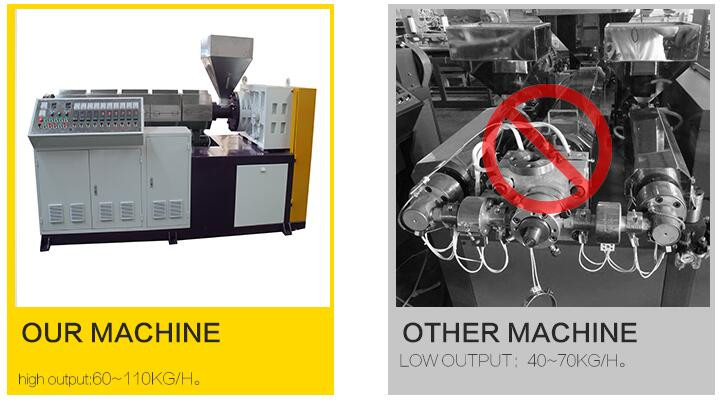

Our advantages
Company Information

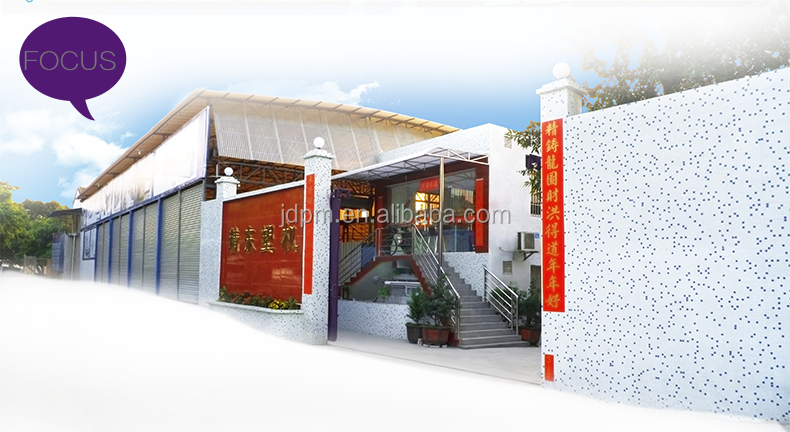

Company Profile
JingDong plastic machine manufacture is located in FoShan,which is next to GuangZhou.
We have over 50 years experience in making plastic machines. Our products cover rattan,strip,pipe,granule,cable machine production lines and so on.
In order to help customers save cost,we pay more attention to automatic technologies and try our best to simplify the process of extruding,so end products of our machines are very competitive in the market.
With high quality and technology,we are well know . We not only provide
Companies with machines but also some famous universities,such as South China University of Technology,Guangdong University of Technology,South China Agricultural University and so on.
Our Team

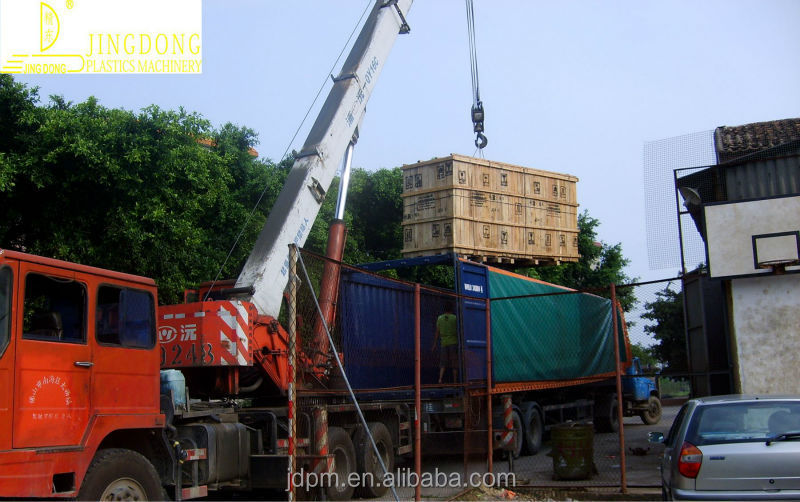

Packing and shippment
contact us
ADD: Dazhen Industry District,Dali,Nanhai,Foshan,guangdong,China
Albee
wechat/whatsapp/tel: 0086-139-2591-0344
Web: http://jdpm.en.alibaba.com
http://jingdongjixie.com
