pp bfe99/n95 Meltblown nonwoven fabric cloth making machine extrusion line for face mask
Products Description
pp bfe99/n95 Meltblown nonwoven fabric cloth making machine extrusion line for face mask
The global outbreak has led to a surge in demand for masks. As the "heart" of masks, melt-blown cloth is used as the filter layer between medical and protective masks. It has good filter, barrier, heat preservation and absorbency.
Chang'niu Electric takes advantage of its own professionalism in the production of complete sets of intelligent equipments for more than ten years to comprehensively promote the batch production of intelligent 3D melt-blown cloth production line group.
Chang'niu Electric intelligent 3D melt-blown fabric production line can produce BFE99 class and above melt-sprayed cloth, up to PFE 95＋class, cloth width 1200mm.

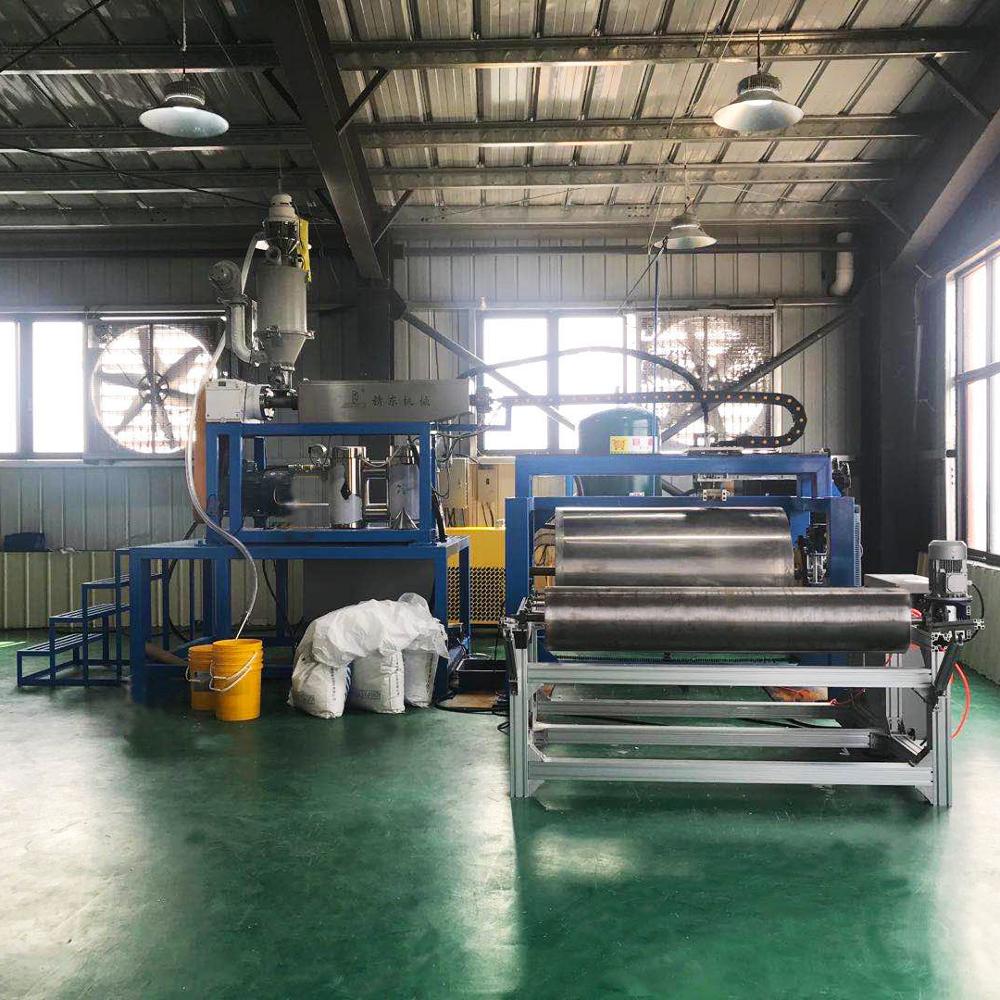

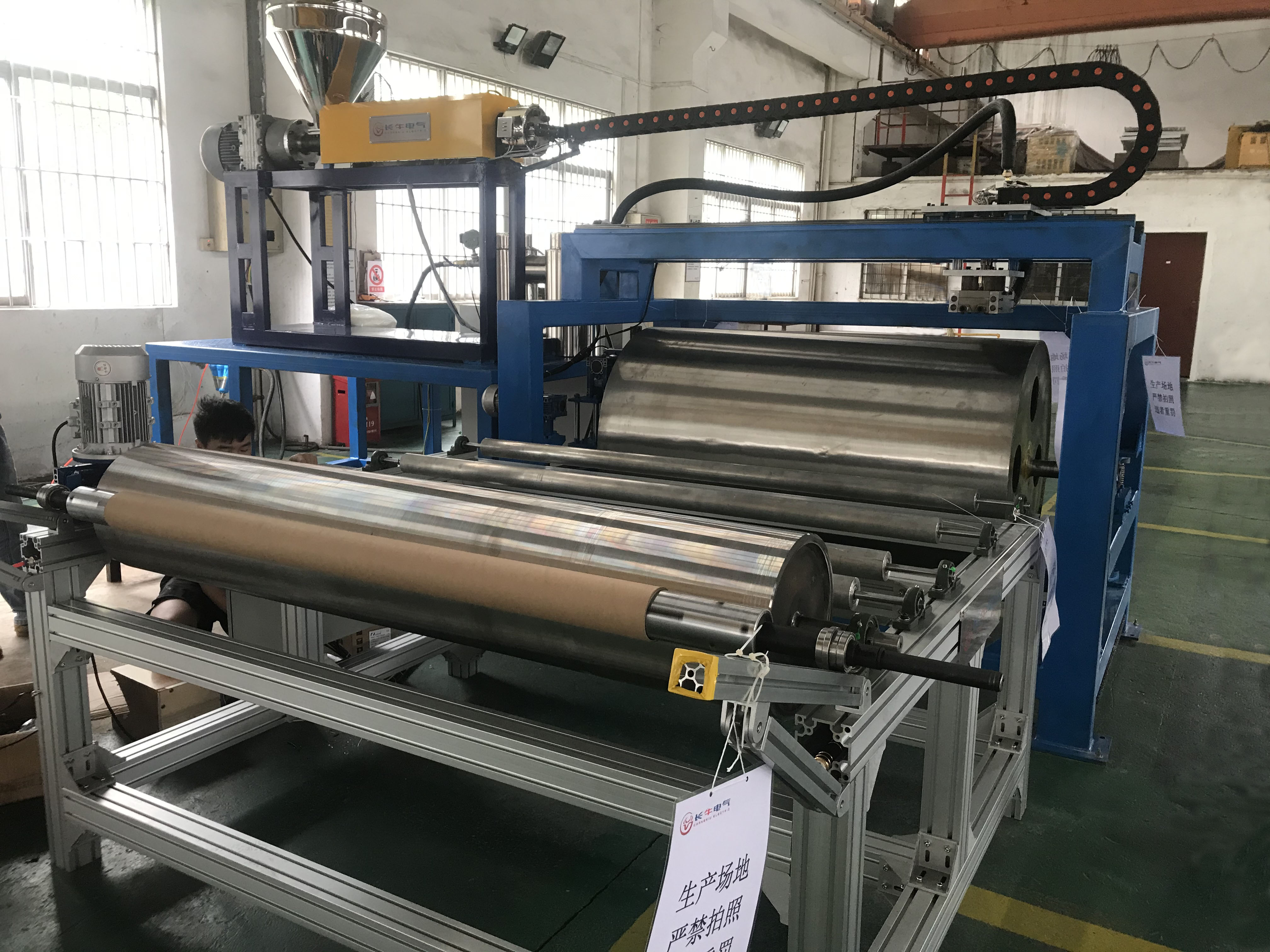

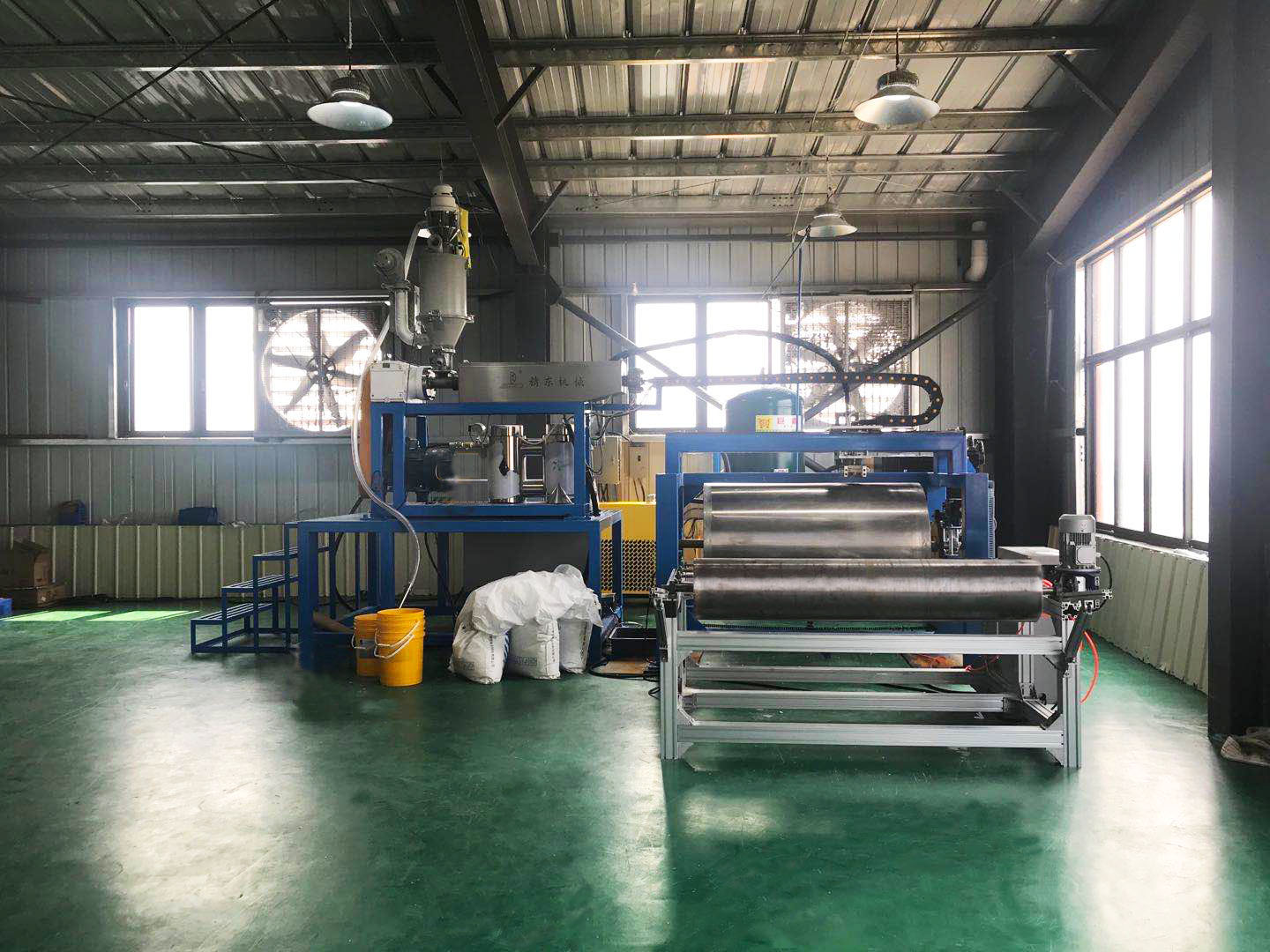

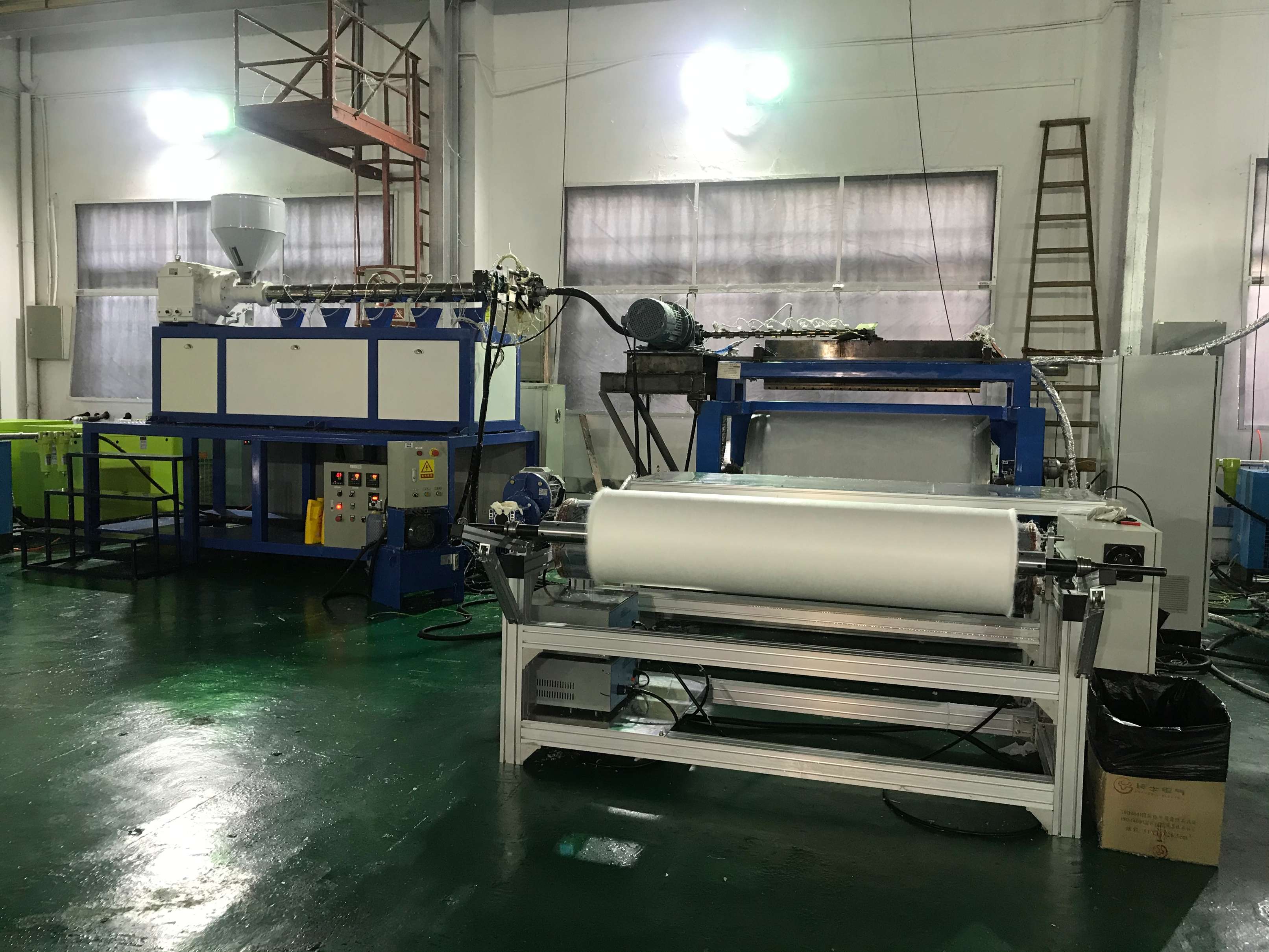

This 3D fabric production line is to make PP meltblown fabric by melting & blowing PP electret through filter media, with polypropylene as the raw material, in the process of high-temperature melting, spinning, fiber forming & cooling, and rewinding. It is a multi-functional equipment, consisting of one whole unit of melt blowing system, electric control system, high-voltage static electrets and a rewinding fabric collection system.
Meltblown nonwoven fabric cloth making machine Parameters
Assembly unit | Quantity | Parameter |
Feed system | One set | Material used: 38CrMoAlA Treated with tempering and nitridization |
Speed control system | One set | Hard tooth surface, grinding technology, horizontal type |
Rack | One set | Metal structure |
Temperature control system | One set | High temperature heating ring |
Frequency conversion motor | One set | Quadrupole |
Intelligent electric control cabinet | One set | Eight-area thermostat module |
Melt-blown system | One set | 400-microhole mold head design |
Electrostatic treatment unit | One set | High pressure electrostatic electret |
Material receiving system | One set | Automatic mode |
Hot air control system | One set | Air compressor by customer |
Total production line power | 70kW | |
Raw material required | PP |

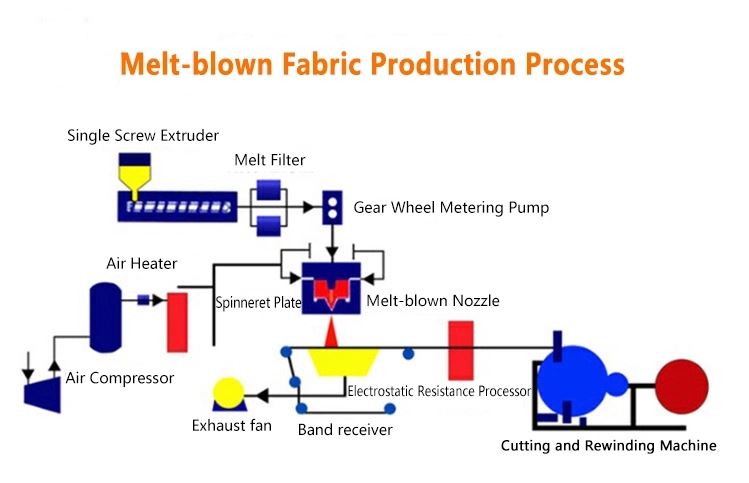

Meltblown nonwoven fabric cloth making machine production Process
Technical Parameters
Model number | SJ-45 |
Product width | 1200mm |
Product efficiency | 4-6kg/h |
Fiber fineness | 2-5μm |
Application Fields
