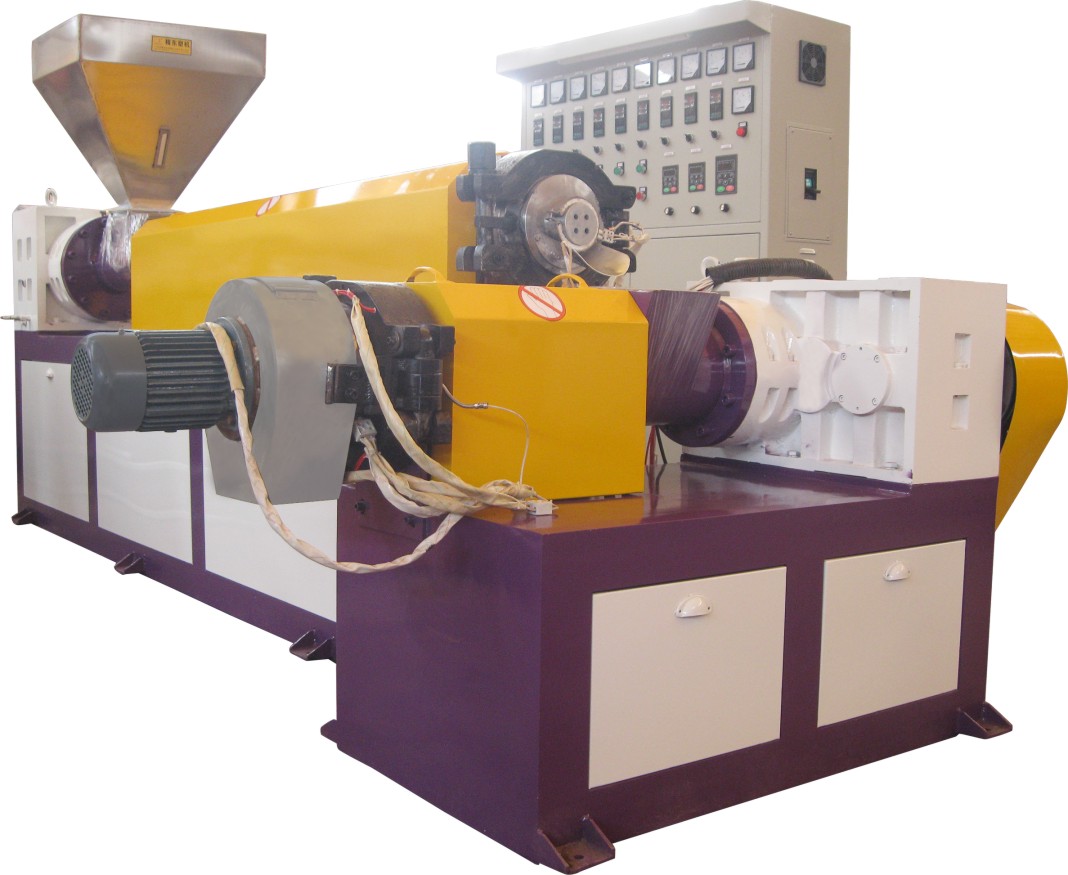

High performance plastic recycling /pelletizing machine
High performance plastic recycling /pelletizing machine

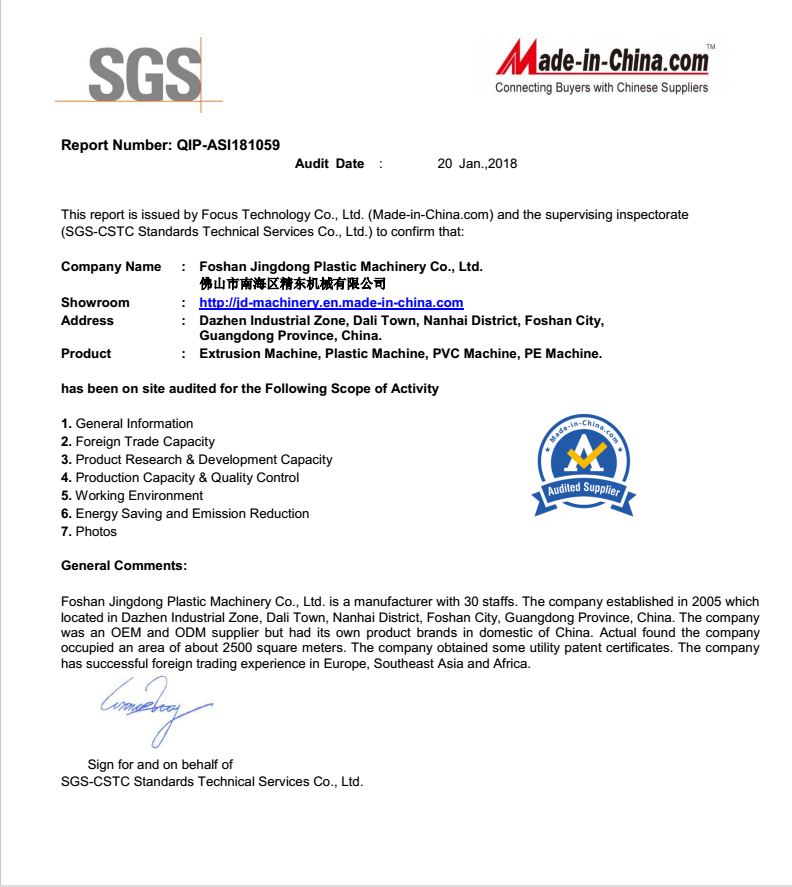

SGS Certifications
SGS:
Kindly Reminder:
All our certification is Real one.
NOT FAKE, NOT FAKE,NOT FAKE!!!
PLEASE CONTACT US TO SHOW YOU !!!
Please attention
JingDong Machinery Offer you :
1.FACTORY DIRECT PRICE.
2.NICE QUALITY
3.QUICK SHIPPING WITHIN 15DAYS.
4.NO MOQ,1PCS OK.SMALL ORDER WELCOME
5.ONLINE PAYMENT.
6.FREE TECHNICAL TRAINING
7.AFTER SALES SERVICE 12 MONTH.
8.ENGINEERS SERVICE IN OOVERSEA FOR AFTER SALE
Product Description
| Model:SJ160-SJ160 High performance plastic recycling /pelletizing machine | ||||
| Item | Unit | Part(s) | Qty (set) | Description |
|
1 |
Conveyor |
1 set |
Width:500mm,Length:3500mm |
|
| 2 |
Broken bucket |
1 set |
37kW-4p motor,diameter:750mm |
|
| 3 |
SJ160 Up extruder |
Screw & Barrel | 1 set |
Screw diameter:Ø160mm,barrel length:Ø160mm*3000mm,38CrMoAlA.Heat treated, nitriding. Screw Cr plated,with exhaust function |
| Gear box | 1 set |
315#,hardening,grinding process,horizontal square box. |
||
| Main Motor | 1 set |
75kW-6p motor,frequency control |
||
| Mould head | 1 set |
Ø330mm*330mm Sieve plate |
||
|
Hopper |
1 set |
Stainless steel material |
||
|
Frame |
1 set |
Steel structure |
||
| 4 |
SJ160 Down extruder |
Screw/barrel |
1 set |
Screw diameter:Ø160mm,barrel length:160mm*1700mm 38CrMoAlA.Heattreated, nitriding.Screw Cr plated. |
| Gear box | 1 set |
225#,Hardening,grinding process,horizontal square box. |
||
|
Motor |
1 set | 22kW-64 motor,frequency control | ||
|
Frame |
1 set |
Steel structure |
||
| Mould head | 1 set |
Ø330mm*330mm Sieve plate |
||
| 5 |
Electric box |
1 set |
Independent electric cabinet, 10zones automatic constant temperature |
|
| 6 |
Cooling tank frame |
1 set |
Length:2.4meter,stainless material |
|
| 7 |
Cooling tank |
1 set |
Length:3.5meter,304 stainless material |
|
| 8 |
Cutting machine |
1 set |
24 alloy knife, 5.5kW-4p motor |
|
| 9 |
Storage tower |
1 set |
2.2kW Motor,500kg capacity,stainless steel material |
|
Our Services
Before sale
1.We provide service for consulting on end product analysis and facilities selection.
2.We can arrange you to visit our local clients to see how our facilities work.
After purchasing
1.We can provide ways on materials purchase.
2.Free offering of product formulation.
3.We provide service for training on process.
4.Before delivery, trial production to give qualified end product.
5.OEM service to meet client’s special demanding
After sales
1.Technical advisory services for a long time
2.The machine will have one year of warranty.During the warranty period,if any part of machine is broken
not by man made.We will replace it with the new one freely for you.The warranty date will begin since the
machine be sent out upon we receive the B/L.

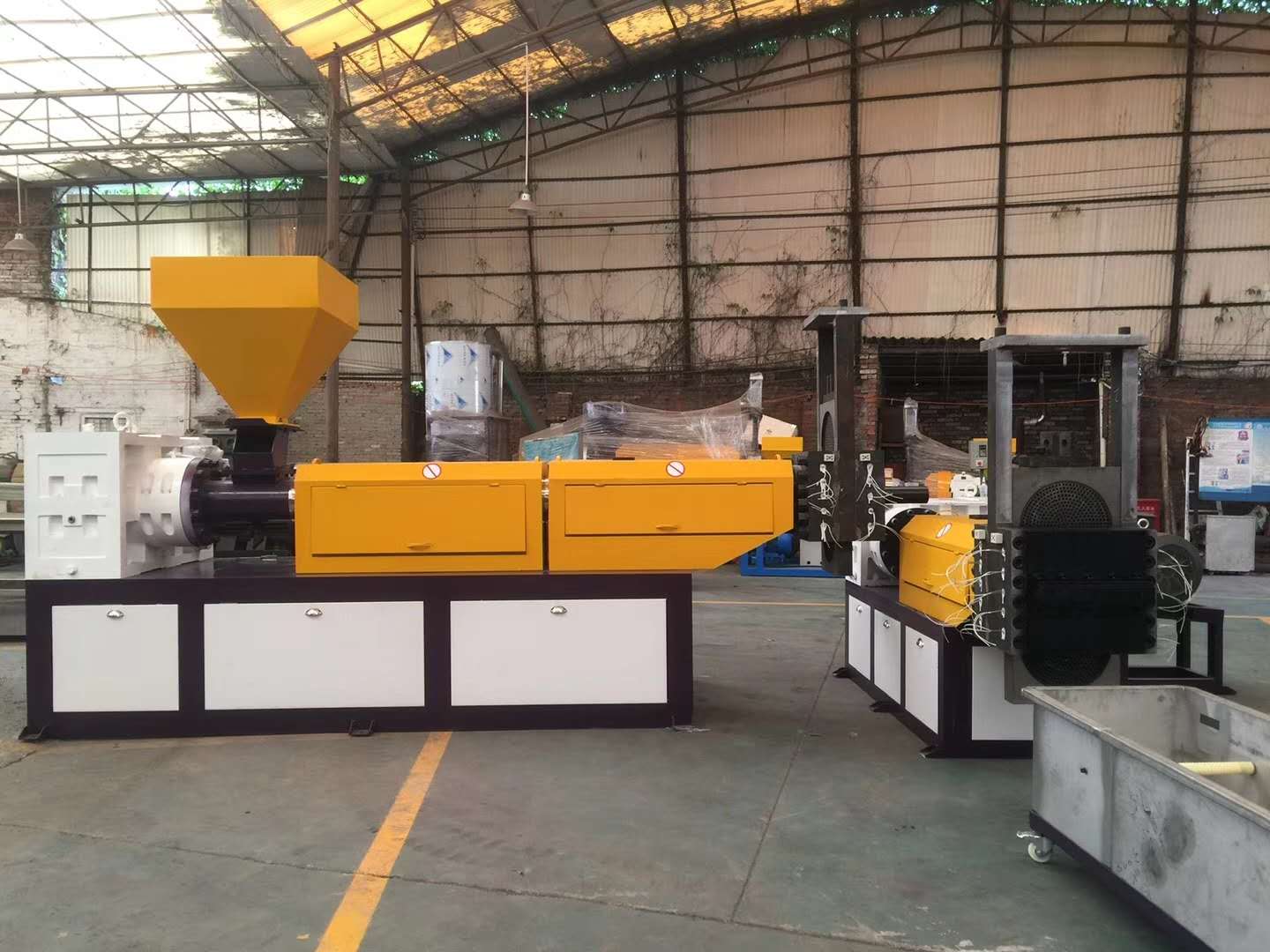

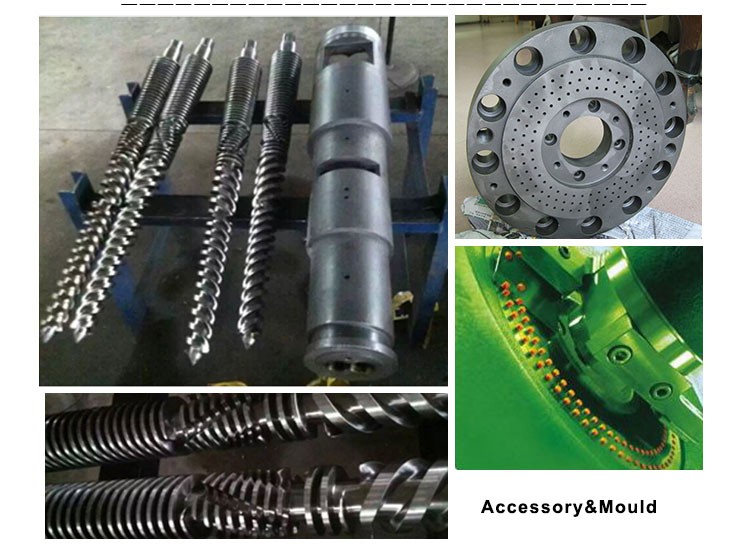

Detailed Images
Company Information
Packaging & Shipping
Buying Guides
Q: How do I buy from your company?
A: When you find the product you want, just send inquiry to us, and we will reply you within 24 hours .then send you order conformation information, when you confirm to buy the products, we will prepare the proforma invoice and bank details for you. then you paid.
Q: Which kind of payment term do you accept?
A: T/T with 30% as deposit, the 70% before delivery.
Q: How can you guarantee my payment ?
A : Our company is ALIBABA GOLD SUPPLIER. and ALIBABA have make us done enterprise authentication. We always adhere to the "customers foremost, quality first" of aim, pay attention to honesty, the pursuit of excellence.
Q: How long it will be finished after order confirmation?
A: 1month since receving your payment.
[]
