Plant of Full automatic high speed Extruder used to Extrusion PE PP flat yarn making machine for baler twine
Best selling high output plastic mattress net making machine
Product Description

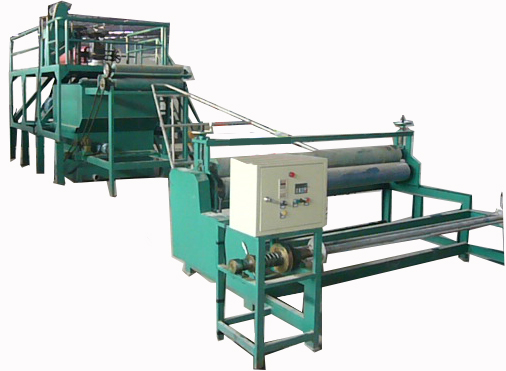

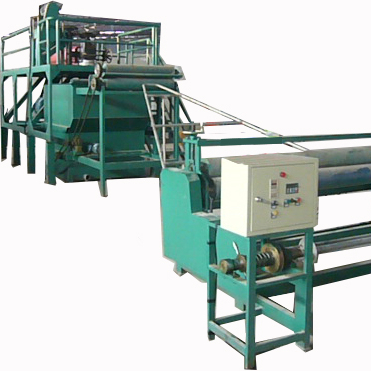

Best selling high output plastic mattress net making machine
uses for producing plastic rigid flat net, treat HDPE, LDPE, PP as main material and anti-anti-static,anti-aging agent are added.
Poultry breeding net, mattress net with various forms and specs can be extruded with definite tensile intensity, aging-resistant, corrosion-resistant performance. It's widely use for those item, such as: golfcourse, park, horticulture,
airport, highway as the ground treatment

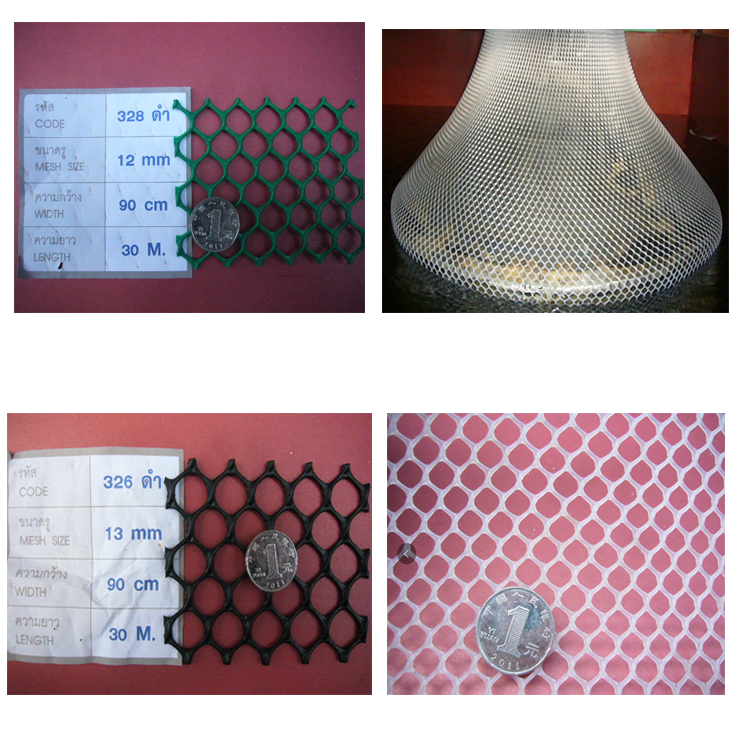

End products
Product flow
Material mixing---- Loading---- Heating and extruding----Molding---- Cooling----Cutting---Flating---- Haul off ----Winding---- Finished.
Equipment List
|
No. |
Item |
Unit |
Data |
|
1 |
Screw Diameter |
mm |
65 |
|
2 |
Length/Diameter |
L/D |
28:1 |
|
3 |
Screw Speed |
r/min |
15-110 |
|
4 |
Output |
Kg/h |
30-80 |
|
5 |
Whole Heating Power |
Kw |
5kW |
|
6 |
Product Width |
mm |
2000 |
|
7 |
Pulling Speed |
m/min |
0.4-4 |
|
8 |
Main Motor Power(Extruder) |
Kw |
22 |
|
9 |
Motor Power(Mould Head) |
Kw |
3 |
|
10 |
Motor Power(Water Tank) |
Kw |
1.1 |
|
11 |
Motor Power(Rewinding) |
N.m |
10 |
|
12 |
Whole Weight of Product Line |
Kg |
5200 |
|
13 |
Measurement of Product Line(L*W*H) |
m³ |
9*2.8*3 |
|
14 |
Voltage |
V |
380 |
|
15 |
Frequency |
Hz |
50 |
Specification
|
Model |
S-1500 |
S-2000 |
S-2500 |
S-3000 |
S-4000 |
||
|
Material |
PP, PE |
PE, PP |
PE, PP |
PE, PP |
PE, PP |
||
|
Screw Diameter mm |
65 |
65 |
80 |
90 |
120 |
||
|
Die Head |
Rotational die head |
||||||
|
Total Power KW |
35 |
46 |
62 |
78 |
98 |
||
|
Dimension M |
9.2×2.8×3.5 |
11×3.2×3.8 |
12×3.7×4.2 |
16×3.8×4.6 |
18×5.2×5.6 |
||
|
Weight T |
3.2 |
4.2 |
5.6 |
7.8 |
8.8 |
||
Warranty
---- One year garantee
----spare parts could send to you
-----more advice will help you
------Say you want you, we provide you ASAP
Packaging & Shipping
Wrap with plastic film wood frame outside, seaworthiness.
