pet flakes recycle machine pepp film plastic recycling pe pp granulating
Model Number: SJ120-SJ120
Warranty: 1 Year for machinery warranty|1 Year for Core Components
Samples: SJ120-SJ120
$33,800.00/Set | 1 Set (Min. Order)
Warranty: 1 Year for machinery warranty|1 Year for Core Components
Samples: SJ120-SJ120
$33,800.00/Set | 1 Set (Min. Order)
Quick Details
Plastic Processed: HDPE, PA, PP, PVC, LDPE, ABS, PET, EVA
Condition: New
Output (kg/h): 350 - 500 kg/h
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Gearbox, Gear
Place of Origin: Guangdong, China
Brand Name: JINGDONG
Type: Granulating Production Line
Screw Design: Single
Voltage: 380 V, 50 Hz
Dimension(L*W*H): 10*5 * 3.5 (meter)
Power (kW): 90
Weight: 4.5 tons
Warranty: 1 Year
After Warranty Service: Video technical support, Spare parts
Local Service Location: None
Showroom Location: None
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Retail, Construction works , Other
Screw diameter (mm): Other, Other
Screw L/D Ratio: 28:1, 28:1
Screw Speed (rpm): 60 - 80 rpm
Material: PP/PE
SCREW MATERIAL: 38CrMoAlA.Heat treated, nitriding. Screw Cr plated
Panel: Separated, 4 temperature control, 3 air cooling
Application: Waste Plastic Recycling

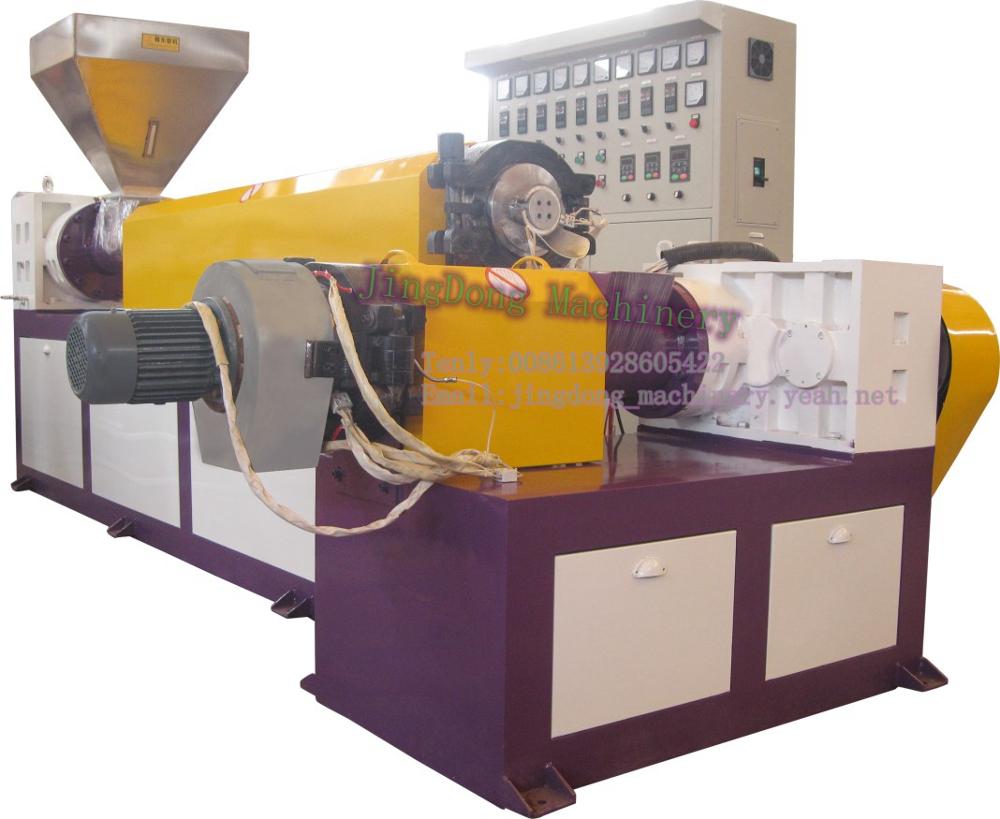

Product name: Plastic Granules Making Extruder Machine
Plastic Type: PP PE PET HDPE LDPE
Processing Type: Waste PE PP Plastic Granulating
Motor: 90kW
Advantage: High output performance
Product Keywords: pet flakes recycle machine
Supply Ability
Supply Ability
10 Acre/Acres per Month
Product Description
| Model:SJ150/150 LDPE HDPE Hot Sell Price Recycle Plastic Granules Making Pelletizing Machine | ||||
| Item | Unit | Part(s) | Number | Description |
| 1 | Main Unit | Screw & Barrel | 1 set | screw:150 Ø150 (mm)38CrMoAlA, nitriding |
| Gear Box | 1 set | gear hardening, polished | ||
| Main Motor | 1 | 37 kw, frequency varying | ||
| Vacuum Ventilation | 1 | |||
| Panel | 1 |
separated, 4 temperature control, 3 air cooling |
||
| Hopper & Cover | 1 set | stainless steel built | ||
| Quantitative Feeder | 1 set |
feeding motor: 0.75 kw, frequency varying |
||
| 2 | Hot-cutting Unit | Cutting Die | 1 set | cutter cover: stainless steel |
| Cutting Motor | 1 | 0.75 kw, frequency varying | ||
| Cutter | 1 set | |||
| 3 | Cooling System | Cooling Tower | 3 | stainless steel |
| Cooling Fan | 3 | 3 kw, medium pressure | ||
