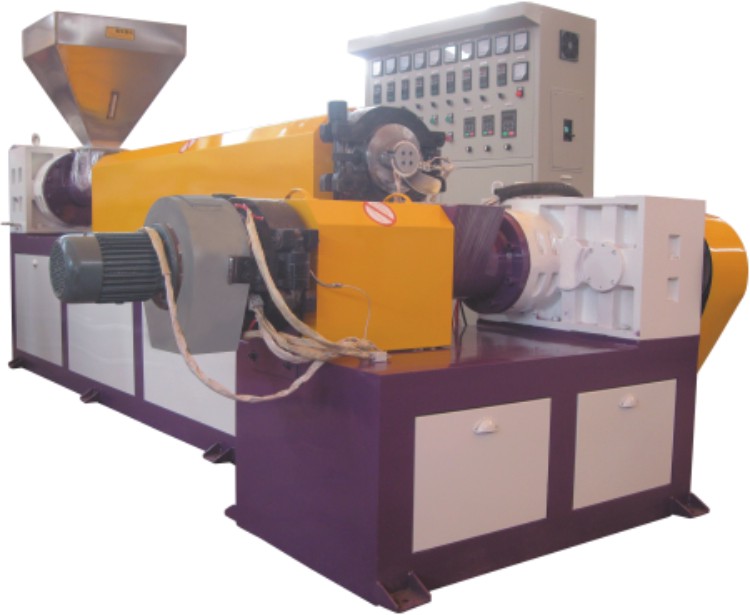

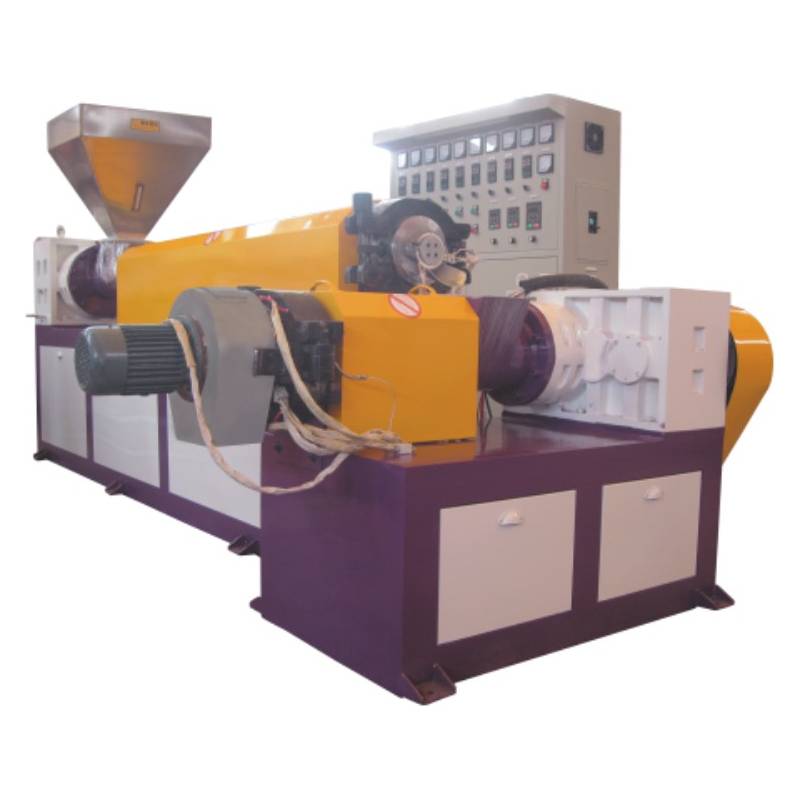

Multi Stage Compounding
The facilities can be used for many different plastics. The plasticizing is much better than the single screw one.
Compose: Uper extruder → (net exchanger) → (middle extruder → net exchanger) → last
hot cutting facilities.
extruder (net exchanger) → { water-ring cutting facilities.
water bath cutting facilities.
| Model | （㎜） Screw diam |
Heating zone | （kW） Motor power |
（㎏/h） output |
| Lash ranulator | Φ100/（100）/120 | 3~8 | 37~11 | 80~200 |
| Φ110/（110）/120 | 4~8 | 45~15 | 90~260 | |
| Φ120/（120）/150 | 4~8 | 55~22 | 120~300 | |
| Φ150/（150）/180 | 5~12 | 75~30 | 150~400 |
