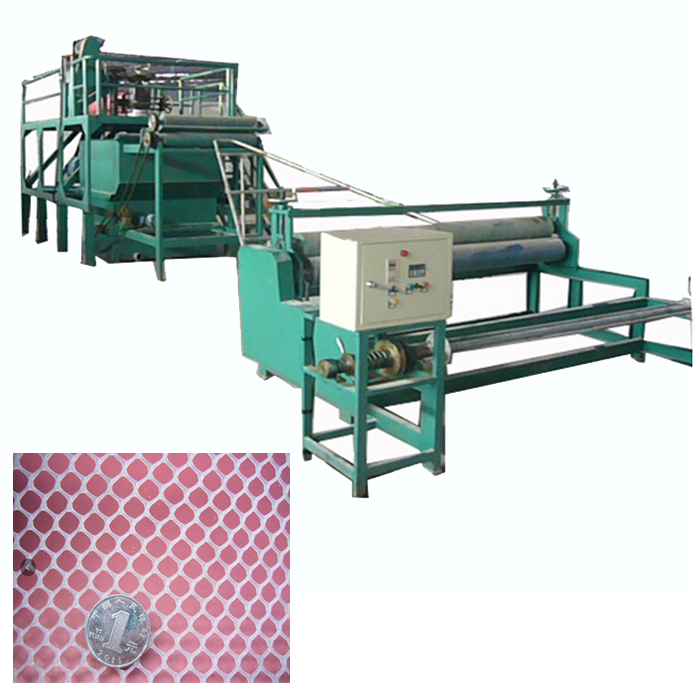

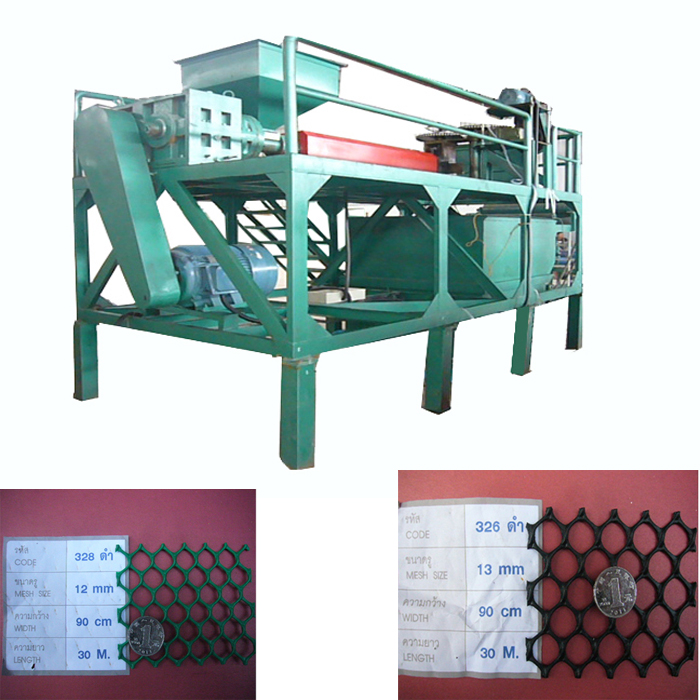

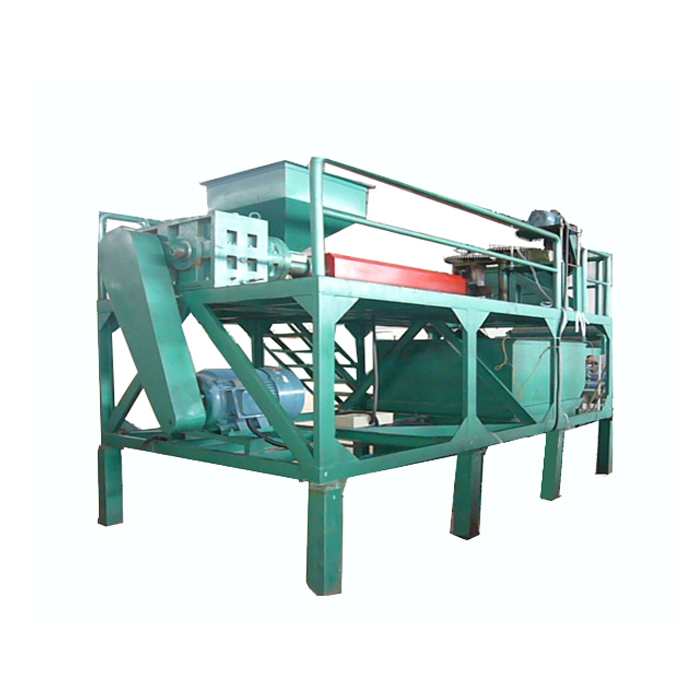

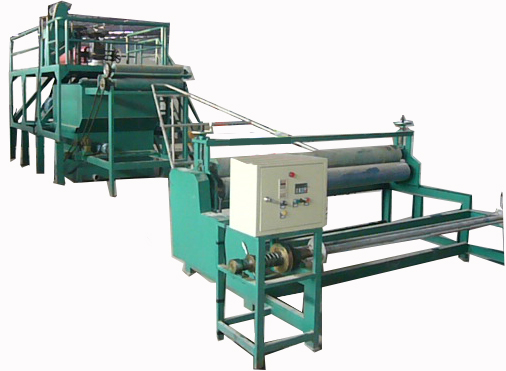

High quality HDPE PE LDPE PP plastic extruder net machine
High quality HDPE PE LDPE PP plastic extruder net machine
Product Description
High quality HDPE PE LDPE PP plastic extruder net machine uses for producing plastic rigid flat net, treat HDPE, LDPE, PP as main material and anti-anti-static,anti-aging agent are added.
Poultry breeding net, mattress net with various forms and specs can be extruded with definite tensile intensity, aging-resistant, corrosion-resistant performance. It's widely use for those item, such as: golfcourse, park, horticulture,
airport, highway as the ground treatment

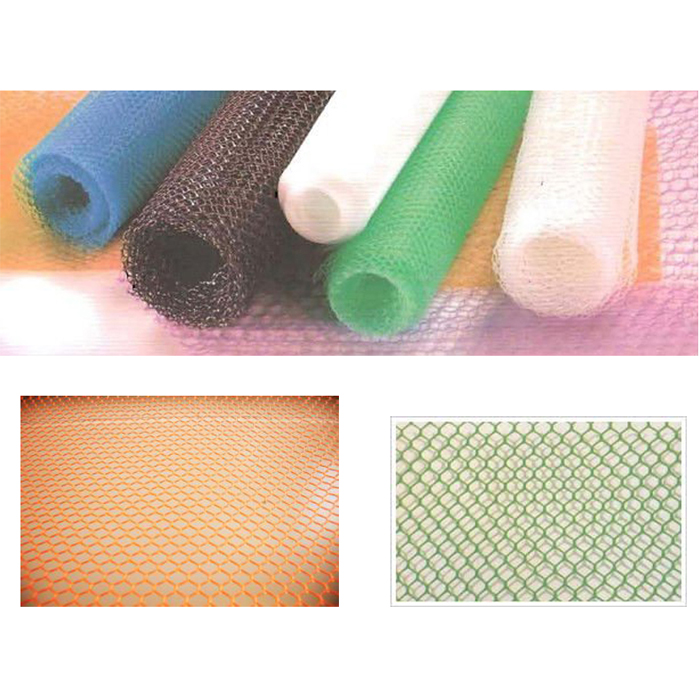

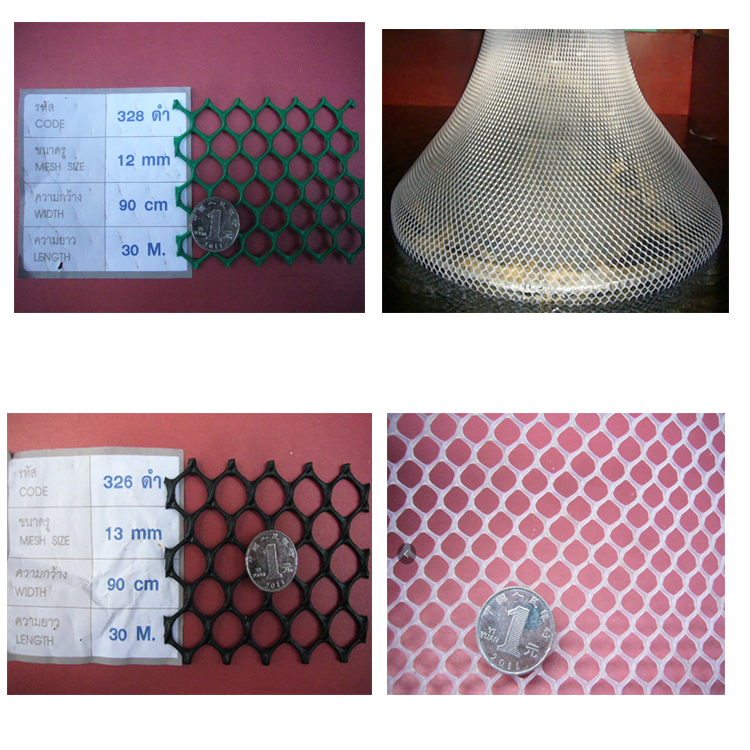

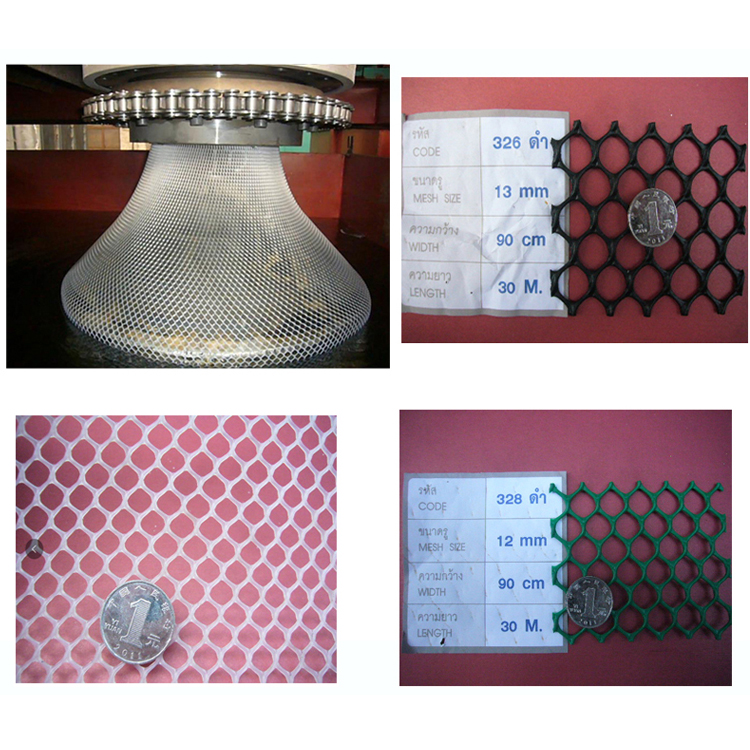

End products
Product flow
Material mixing---- Loading---- Heating and extruding----Molding---- Cooling----Cutting---Flating---- Haul off ----Winding---- Finished.
Equipment List
|
No. |
Item |
Unit |
Data |
|
1 |
Screw Diameter |
mm |
65 |
|
2 |
Length/Diameter |
L/D |
28:1 |
|
3 |
Screw Speed |
r/min |
15-110 |
|
4 |
Output |
Kg/h |
30-80 |
|
5 |
Whole Heating Power |
Kw |
5kW |
|
6 |
Product Width |
mm |
2000 |
|
7 |
Pulling Speed |
m/min |
0.4-4 |
|
8 |
Main Motor Power(Extruder) |
Kw |
22 |
|
9 |
Motor Power(Mould Head) |
Kw |
3 |
|
10 |
Motor Power(Water Tank) |
Kw |
1.1 |
|
11 |
Motor Power(Rewinding) |
N.m |
10 |
|
12 |
Whole Weight of Product Line |
Kg |
5200 |
|
13 |
Measurement of Product Line(L*W*H) |
m³ |
9*2.8*3 |
|
14 |
Voltage |
V |
380 |
|
15 |
Frequency |
Hz |
50 |
Specification
|
Model |
S-1500 |
S-2000 |
S-2500 |
S-3000 |
S-4000 |
||
|
Material |
PP, PE |
PE, PP |
PE, PP |
PE, PP |
PE, PP |
||
|
Screw Diameter mm |
65 |
65 |
80 |
90 |
120 |
||
|

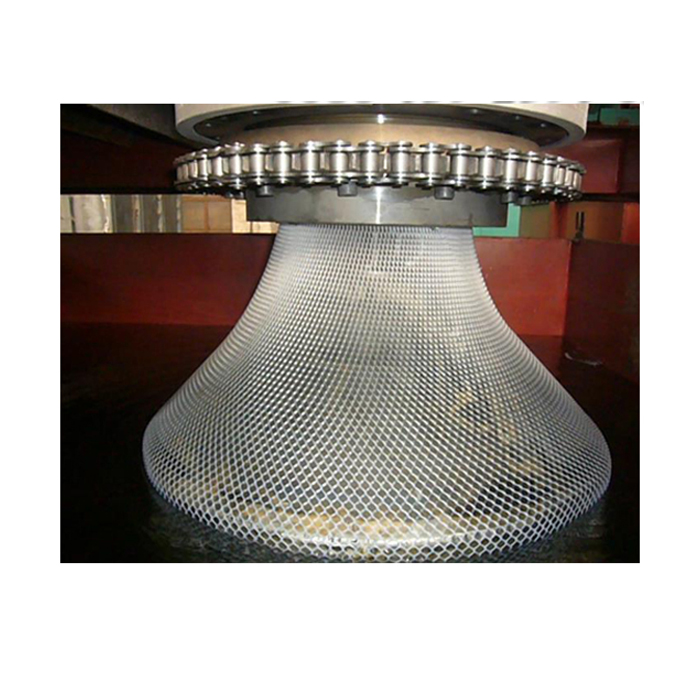

Die Head |
Rotational die head |
||||||
|
Total Power KW |
35 |
46 |
62 |
78 |
98 |
||
|
Dimension M |
9.2×2.8×3.5 |
11×3.2×3.8 |
12×3.7×4.2 |
16×3.8×4.6 |
18×5.2×5.6 |
||
|
Weight T |
3.2 |
4.2 |
5.6 |
7.8 |
8.8 |
||
Warranty
---- One year garantee
----spare parts could send to you
-----more advice will help you
------Say you want you, we provide you ASAP
Packaging & Shipping
Wrap with plastic film wood frame outside, seaworthiness.
