high efficiency pvc pe pp ps abs pc eva shower door weather strip making machinery
high efficiency pvc pe pp ps abs pc eva shower door weather strip making machinery
Product Description
The useful raw materials for the line are: PVC, PE, PP, PS, ABS, PC and EVA, etc. 2 or 3 kind of plastics

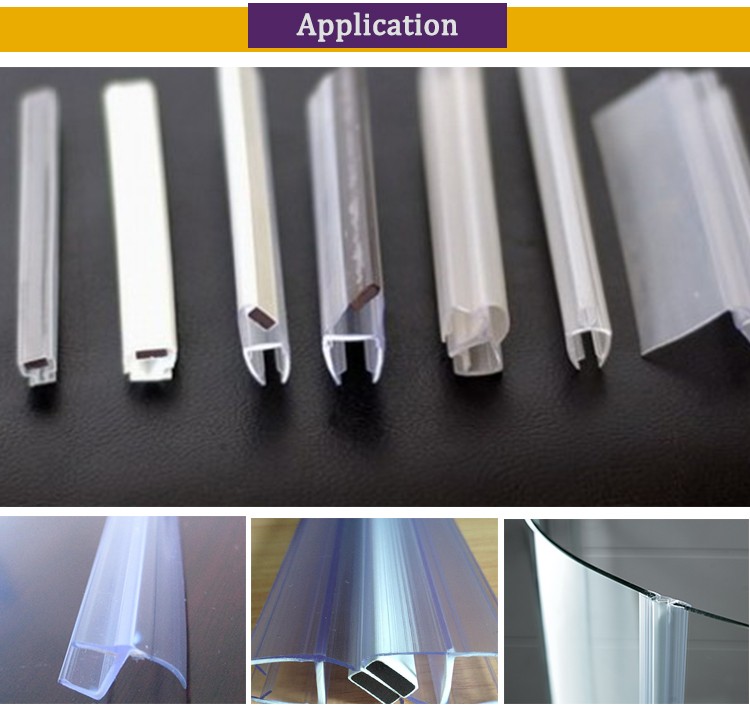

can be selected for co-extrusion.The line is used to produce flexible/rigid in one sealing strip for bathroom,
windscreen wiper, wire trunk, collapsing tag etc.

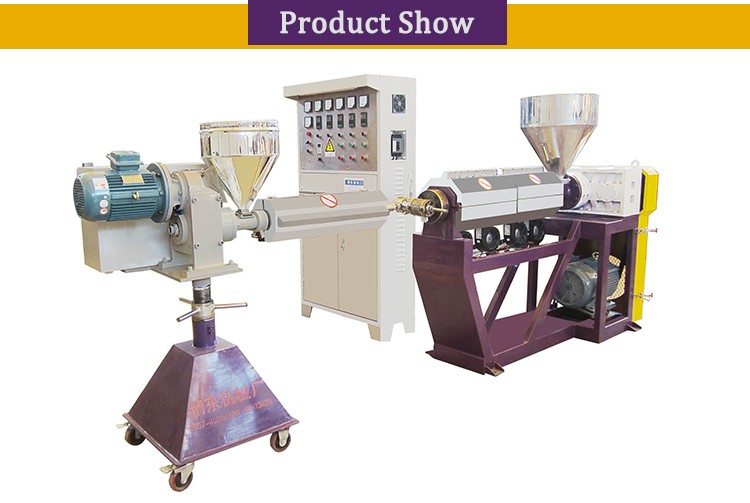

Model:SJ50/45 flexible/ rigid(sealing strip)co-strip extruding line | ||||
| Item | Unit | Parts | Number | Description |

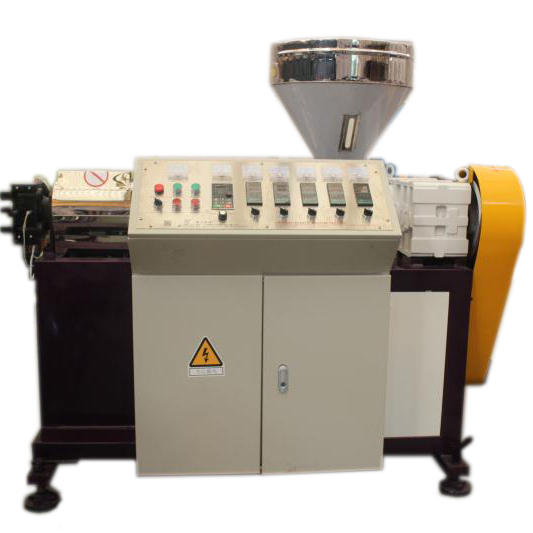

| 1 | SJ55Extruder | screw & barrel | 1 set | Φ50mm, L/D=25:1, 38CrMoAIA, nitriding, screw: Cr plated |
| gear box | 1 set | gear hardening, polished, horizontal | ||
| Machine frame | 1 set | Steel structure | ||
| Main motor | 1 set | 15kw frequency converter | ||
| Control panel | 1 set | 5 zone temperature control, 4 air cooling | ||
| 2 | SJ45Extruder | screw & barrel | 1 set | Φ45 mm, L/D=25:1, 38CrMoAIA, nitriding, screw: Cr plated |
| gear box | 1 set | gear hardening, polished, horizontal | ||
| Machine frame | 1 set | Steel structure | ||
| Main motor | 1 set | 7.5kw frequency varying | ||
| Control panel | 1 set | 3 zone temperature control, 2 air cooling | ||

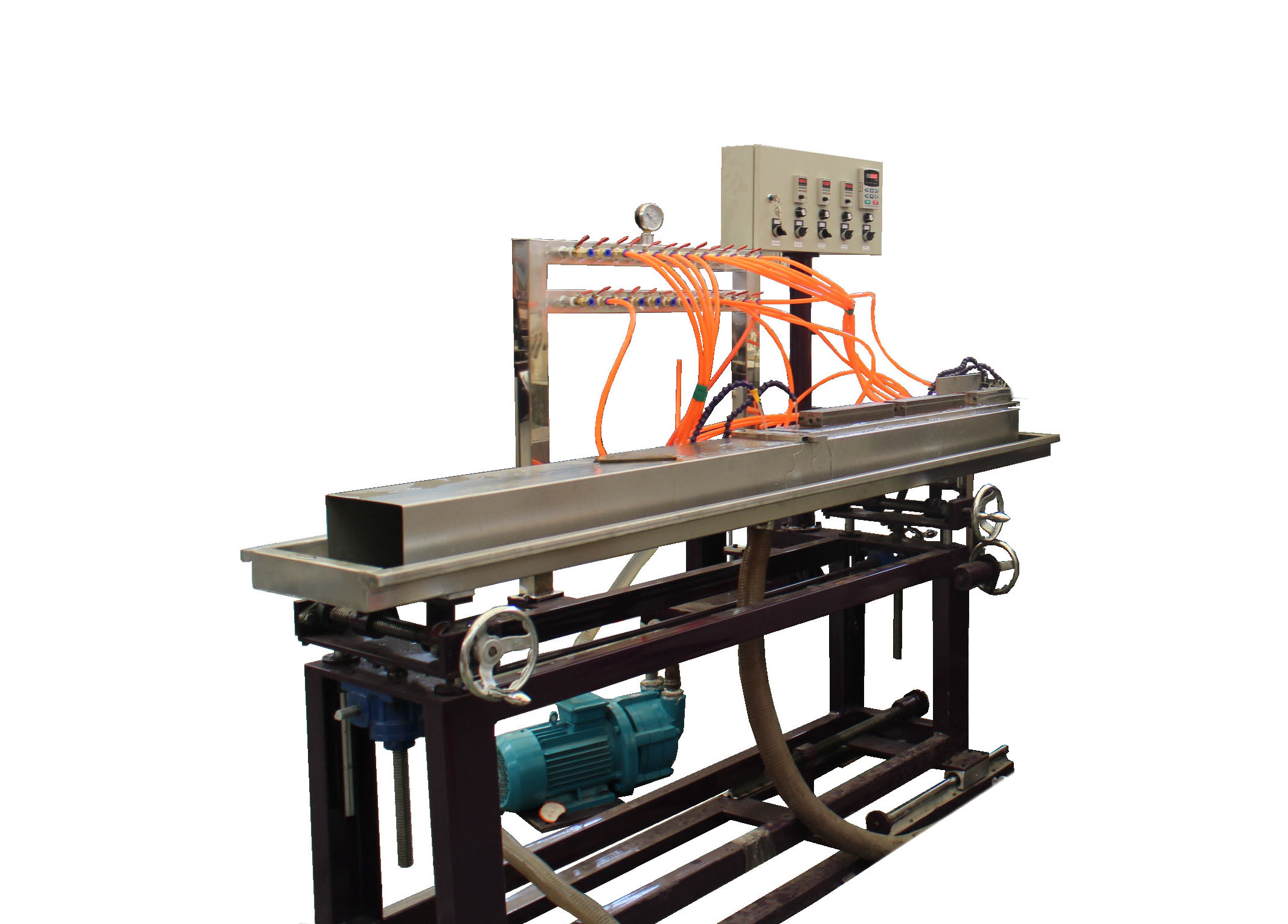

| 3 | Vacuum sizing table | 1 set | Length: 2.5 meters Vacuum pump: 2.2kw | |
| 4 | Drawing unit | 1 set | 1.5kw frequency varying | |

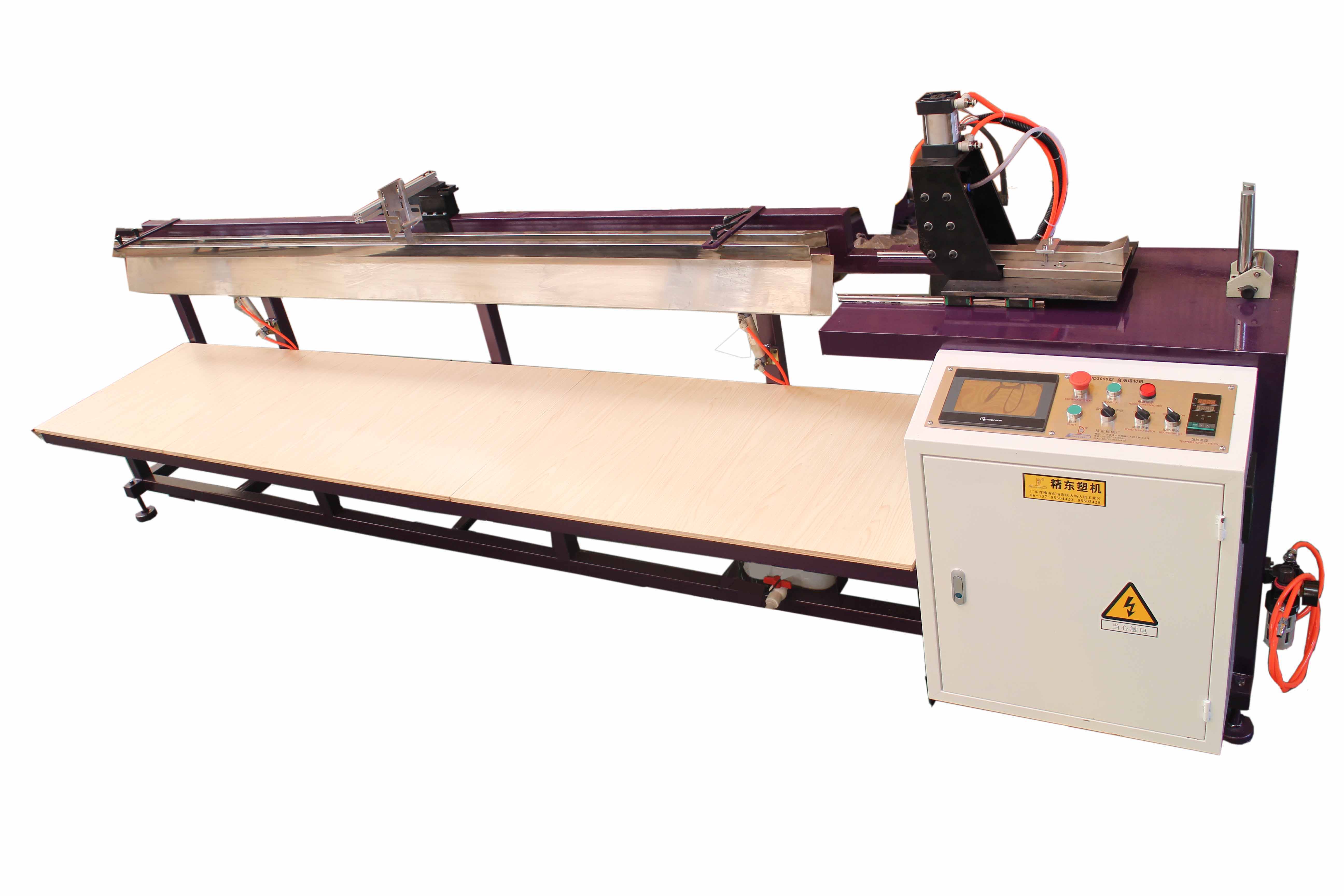

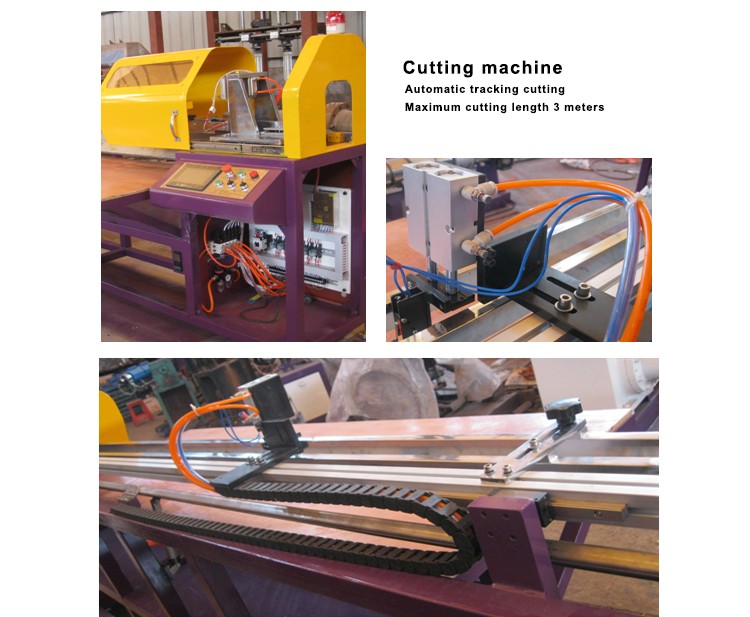

| 5 | Cutting machine | 1 set | automatic tracking fixed length cutting, maximum cutting length 3 meters | |
Our Services
Before sale
1.We provide service for consulting on end product analysis and facilities selection.
2.We can arrange you to visit our local clients to see how our facilities work.
After purchasing
1.We can provide ways on materials purchase.
2.Free offering of product formulation.
3.We provide service for training on process.
4.Before delivery, trial production to give qualified end product.
5.OEM service to meet client’s special demanding
After sales
1.Technical advisory services for a long time
2.The machine will have one year of warranty.During the warranty period,if any part of machine is broken
not by man made.We will replace it with the new one freely for you.The warranty date will begin since the
machine be sent out upon we receive the B/L.

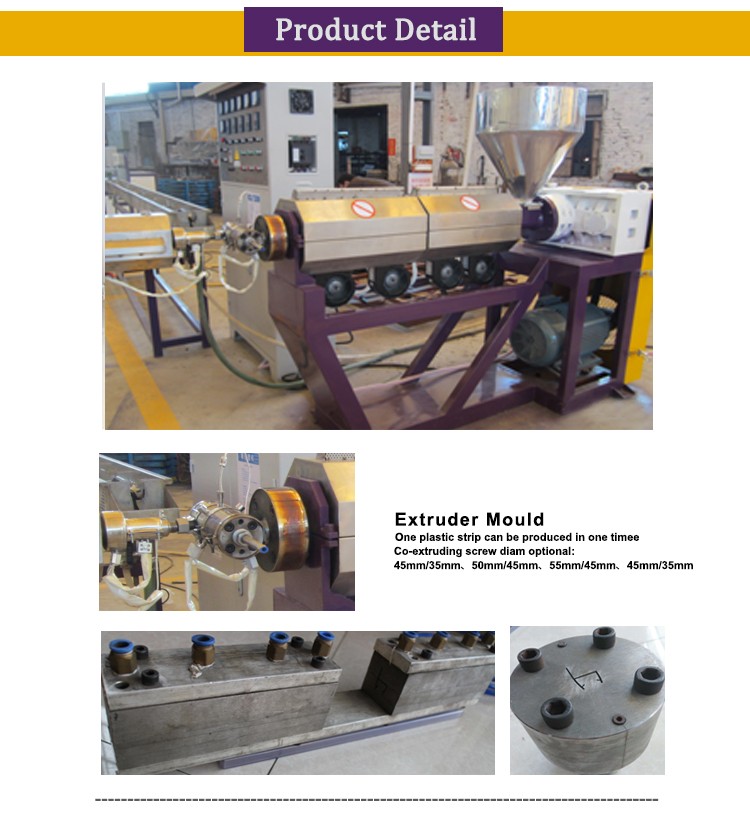

Detailed Images
