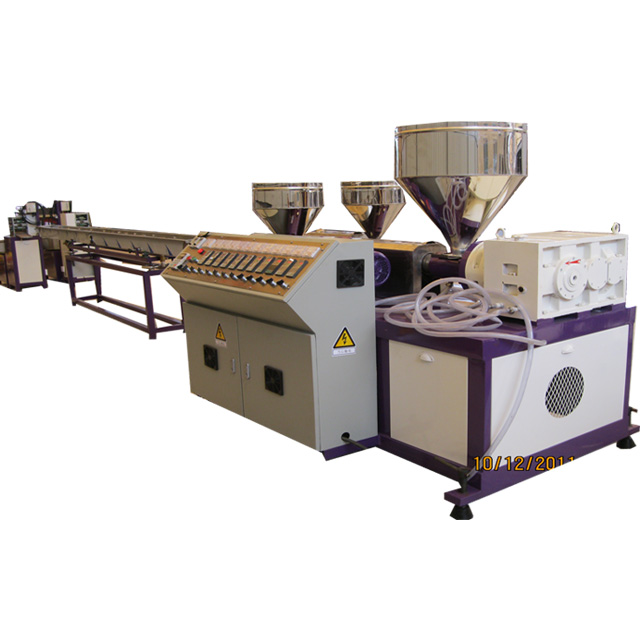

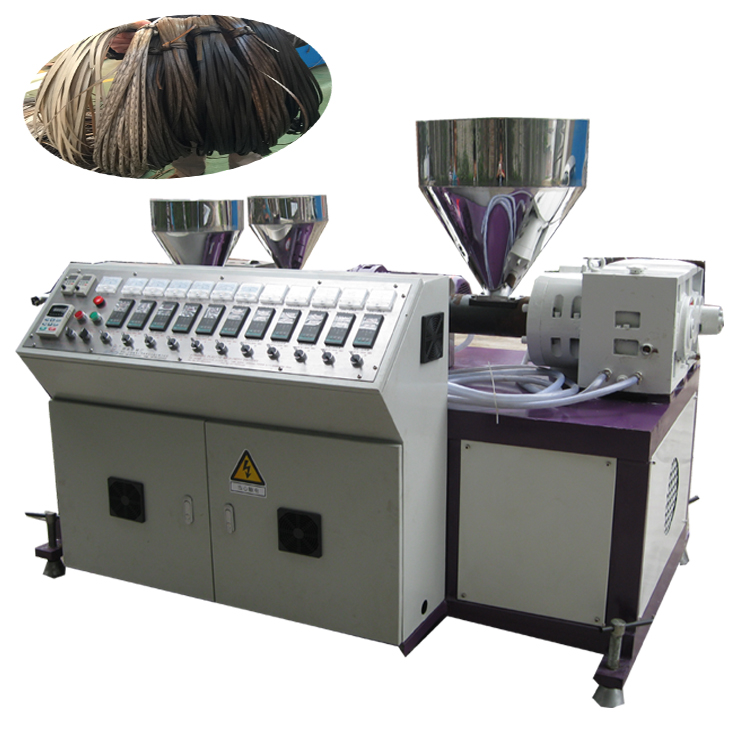

High capacity multicolor PP PE plastic mini rattan extruder machine
beautiful tri-color basket chair rattan production line machines
Product Description
Plastic rattan extruding line has many models,such as single color,double colors,three colors,four colors
and so on.They can produce many kind of plastic rattan,used for rattan furniture ,flower basket,weaving
crafts etc.

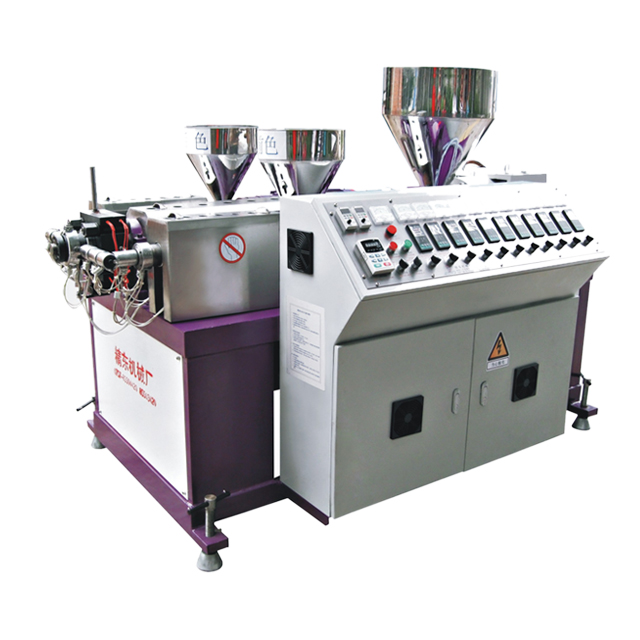

| Model: SJ55/SJ30*2,plastic rattan extruder | ||||
| Item | Unit | part(s) | number | Description |
| 1 | extruder |
Main extruder screw & barrel |
1 set | Ø55; L/D:28:1, substrate: 38CrMoAlA, nitriding |
|
Sub-extruder screw & barrel |
2 sets | Ø30 ; L/D:22:1, substrate:38CrMoAlA, nitriding |
||
| Main gear box | 1 set | both oblique gear, hardening, polished | ||
| Main Motor | 1 set | 15kw, both frequency varying | ||
| Sub-motor, reducing | 1 set | 4kw | ||
| Hopper & Fan Cover | 1 each | stainless steel | ||

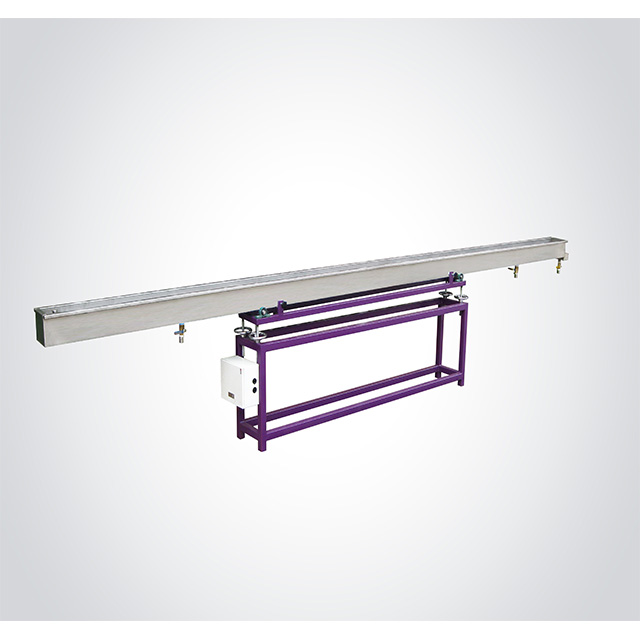

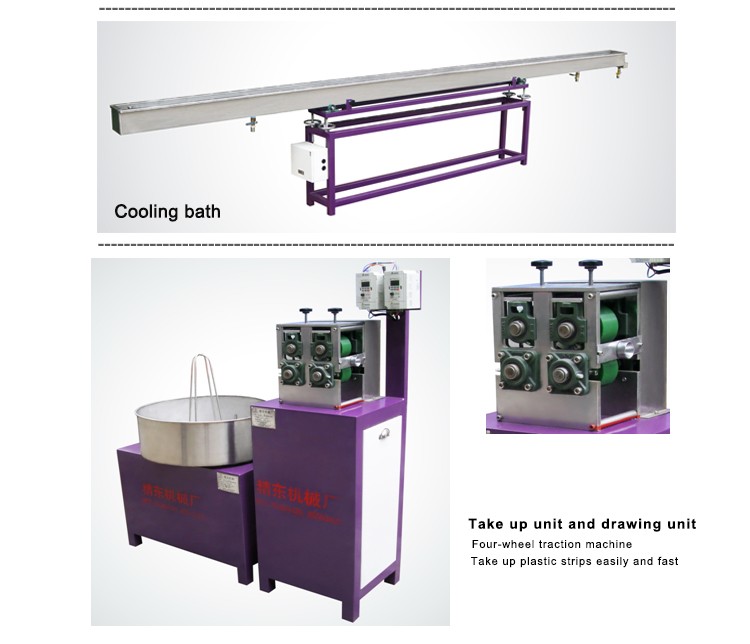

| 2 | Cooling bath | 1 set | length:6m, stainless steel | |

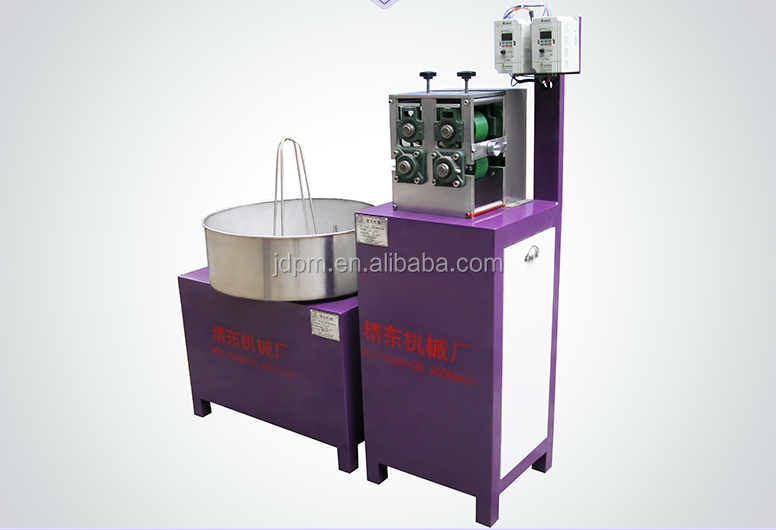

| 3 | Drawing & Take-up unit | 1 set | drawing motor:1.5kW, take-up motor:0.75 kW, both frequency varying |
|

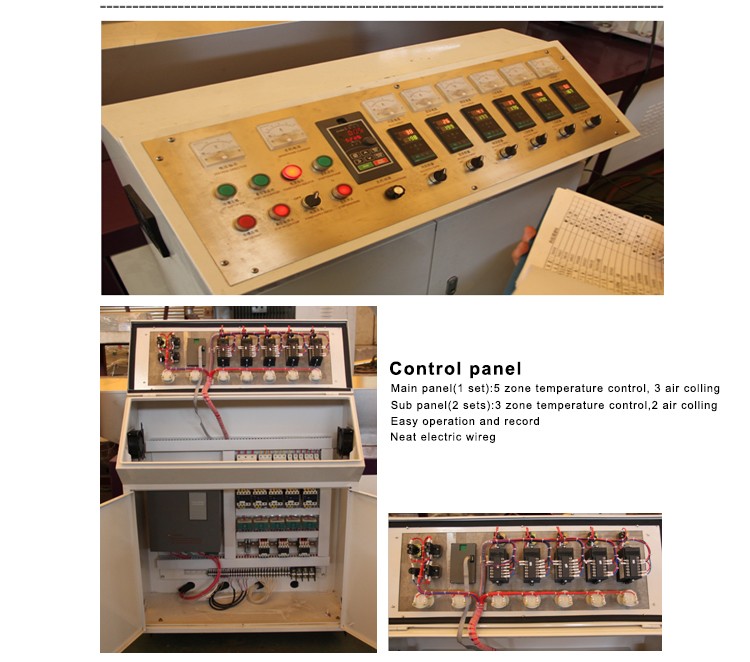

| 4 | Main panel | 1 set | 5 zone temperature control,3 air cooling | |
| 5 | Sub panel | 2 sets | 3 zone temperature control,2 air cooling | |
|
Model
|
Screw diam. |
L/D |
Motor power |
Heating zone |
Cooling bath(m) |
Drawing power |
Specification |
|
Artificial rattan extruder |
45 mm |
28/1 |
5.5 kW
|
5 |
4 |
1.5 kW 0.75 kW |
1 mm – 9 mm |
|
50 mm |
27/1 |
7.5 kW
|
5 |
5 |
1.5 kW 0.75 kW |
1 mm – 9 mm |
|
|
55 mm |
28/1 |
11 kW
|
5 |
6 |
1.5 kW 0.75 kW |
1 mm – 9 mm |
|
|
Plastics rattan combine extruder |
55 mm 30 mm * 2 |
28/1 22/1 * 2 |
15 kW 2.2 kW * 2
|
11 |
6 |
1.5 kW 0.75 kW |
1 mm – 18 mm |
|
65 mm 35 mm * 2 |
28/1 25/1 * 2 |
18.5 kW 3 kW * 2
|
11 |
6 |
1.5 kW 0.75 kW |
1 mm – 20 mm |
|
|
Plastics rattan separated extruder |
55 mm 30 mm * 2 |
28/1 22/1 * 2 |
18.5 kW 3 kW * 2
|
11 |
6 |
1.5 kW 0.75 kW |
1 mm – 20 mm |
|
65 mm 35 mm * 2 |
28/1 25/1 * 2 |
22 kW 4 kW * 2
|
11 |
6 |
1.5 kW 0.75 kW |
1 mm – 20 mm |
|
|
Iron core rattan extruder |
50 mm |
27/1 |
7.5 kW
|
5 |
6 |
1.5 kW 0.75 kW |
1 mm – 9 mm |
|
Raw material:PE Output::300 - 1800 kg/day Area for single-color extruding line: L12000 mm * W3000 mm * H 3000 mm Area for combine extruding line: L13000mm *W 3500 mm * H 3000 mm Area for separated extruding line: L13000mm *W 6500 mm * H 3000 mm |
|||||||
Our Services
Before sale
1.We provide service for consulting on end product analysis and facilities selection.
2.We can arrange you to visit our local clients to see how our facilities work.
After purchasing
1.We can provide ways on materials purchase.
2.Free offering of product formulation.
3.We provide service for training on process.
4.Before delivery, trial production to give qualified end product.
5.OEM service to meet client’s special demanding
After sales
1.Technical advisory services for a long time
2.The machine will have one year of warranty.During the warranty period,if any part of machine is broken
not by man made.We will replace it with the new one freely for you.The warranty date will begin since the
machine be sent out upon we receive the B/L.

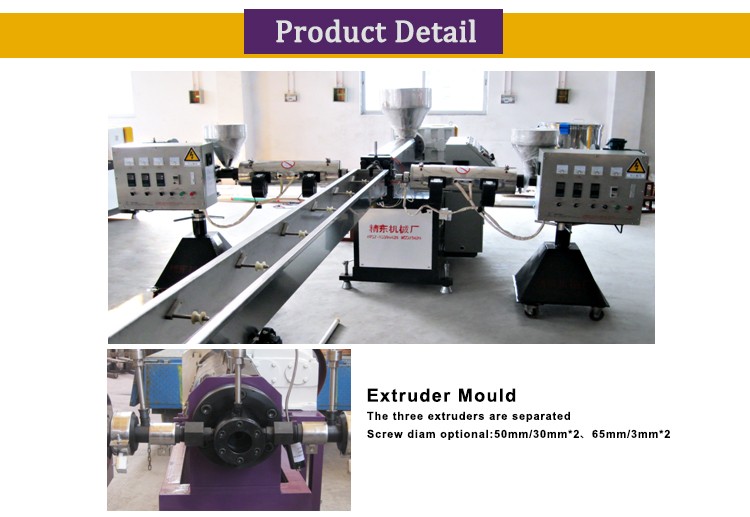

Detailed Images
