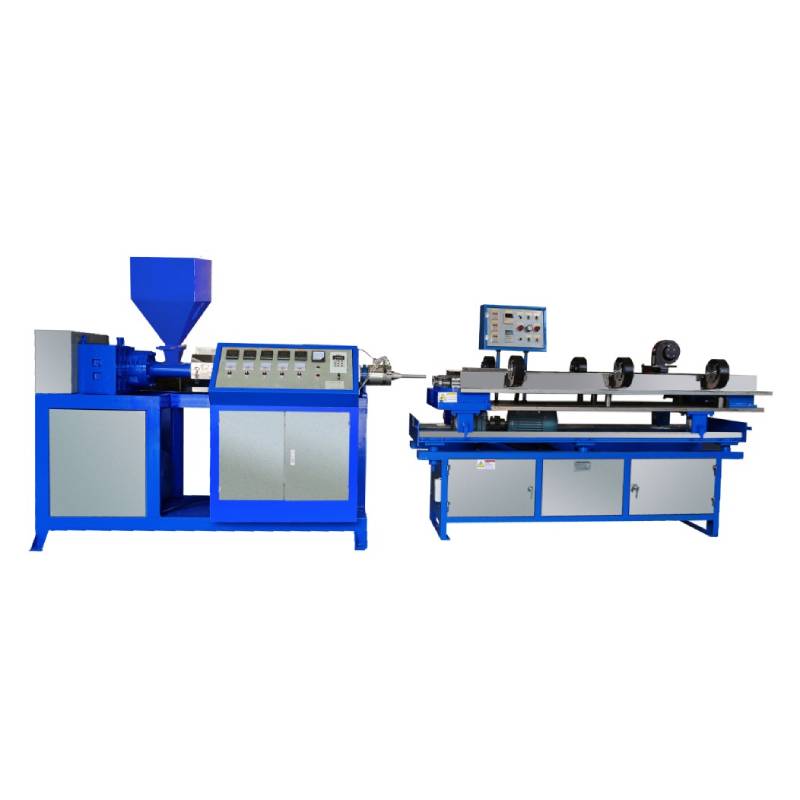

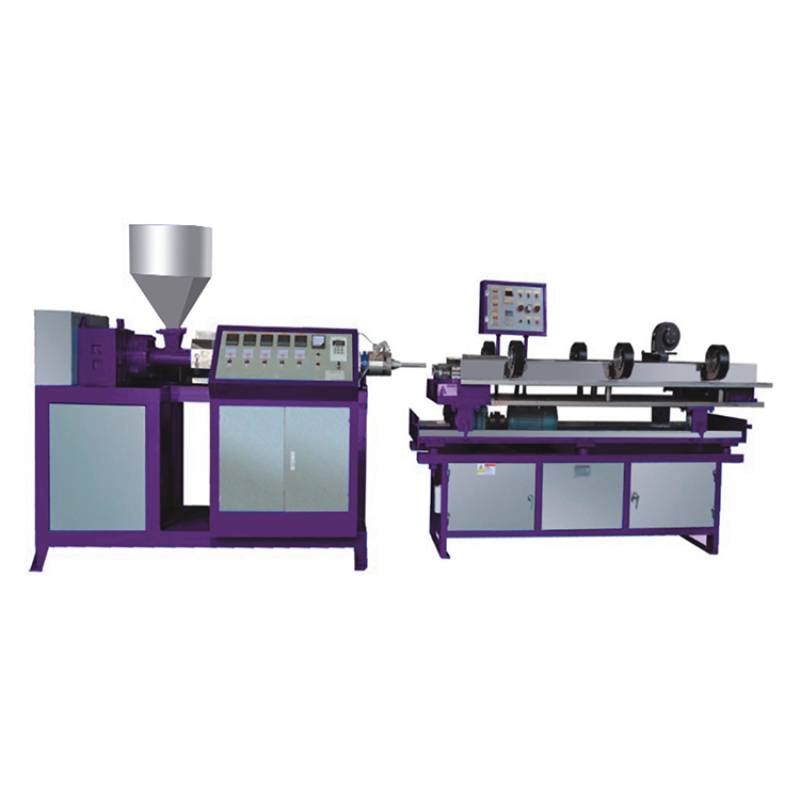

Extruding line: for corrugated tube & diameter varying corrugated tube

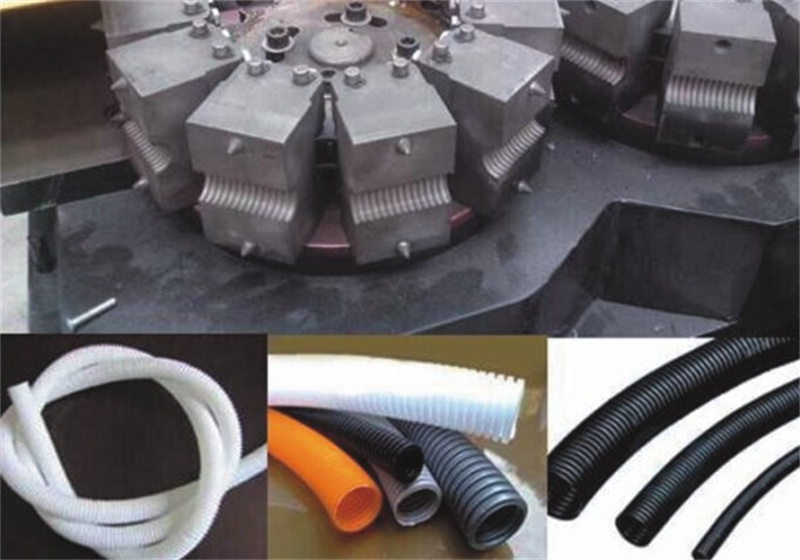

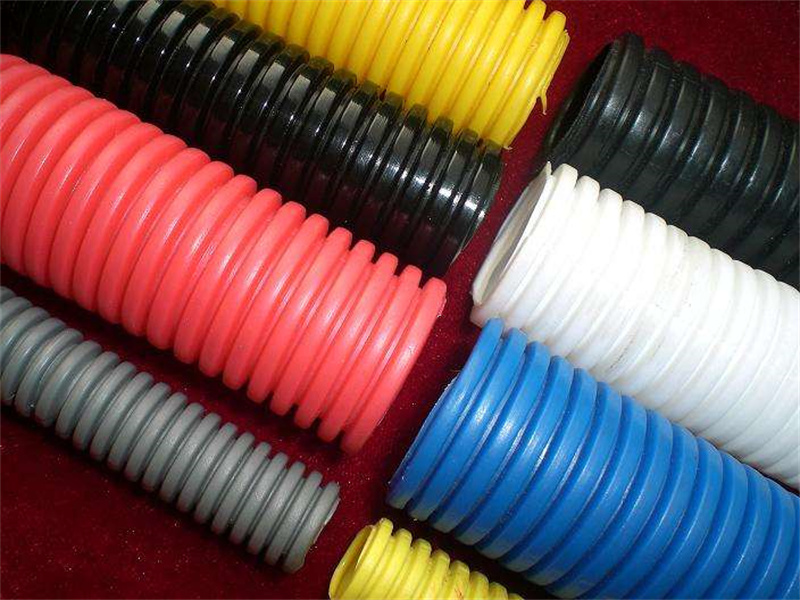

The line uses PP, PVC and PE as row materials to produce corrugated tubes.
The tubes are widely used in automobile, electrical and medical devices areas,
and draining tube for air conditioner and washing machine.
The tubes are widely used in automobile, electrical and medical devices areas,
and draining tube for air conditioner and washing machine.

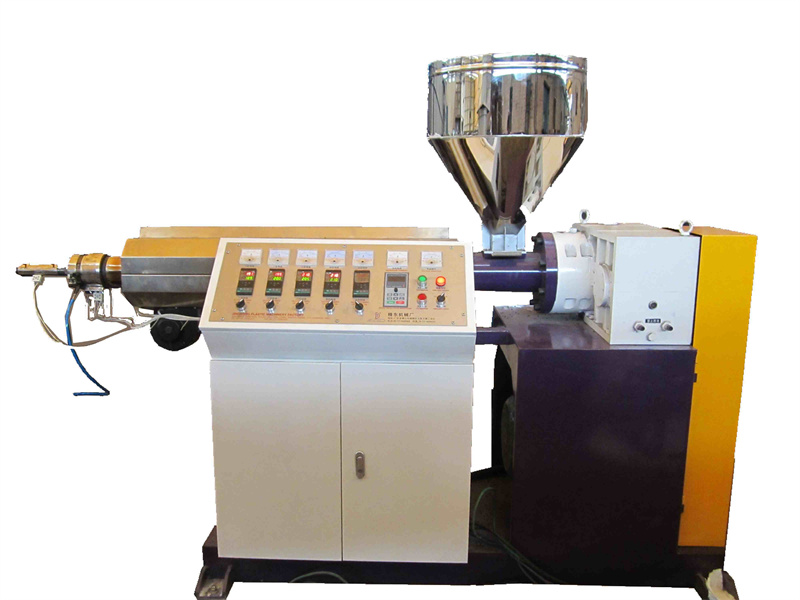

Compose：extruder → sizing mold table.
| model | (mm) Tube diam. |
(m/min) Producing speed |
Mold pairs | (mm) Mold size |
(mm) Size |
(kg) weight |
| GZ-20 | Φ7-φ20 | 6-10 | 68 | 31.75×32.5×42 | 1400×600×1100 | 600㎏ |
| GZ-35-2 | Φ10-φ35 | 6-10 | 42 | 50.8×50.8×60 | 1500×600×1100 | 700㎏ |
| GZ-35-3 | Φ10-φ35 | 6-10 | 64 | 50.8×50.8×60 | 1700×600×110 | 800㎏ |
| GZ-35-4 | Φ10-φ35 | 6-10 | 86 | 50.8×50.8×60 | 2300×600×1100 | 1000㎏ |
| GZ-55-3 | Φ13-φ55 | 5-10 | 64 | 50.8×58×80 | 1700×700×1100 | 900㎏ |
| GZ-55-4 | Φ13-φ55 | 5-10 | 86 | 50.8×58×80 | 2300×700×1100 | 1100㎏ |
