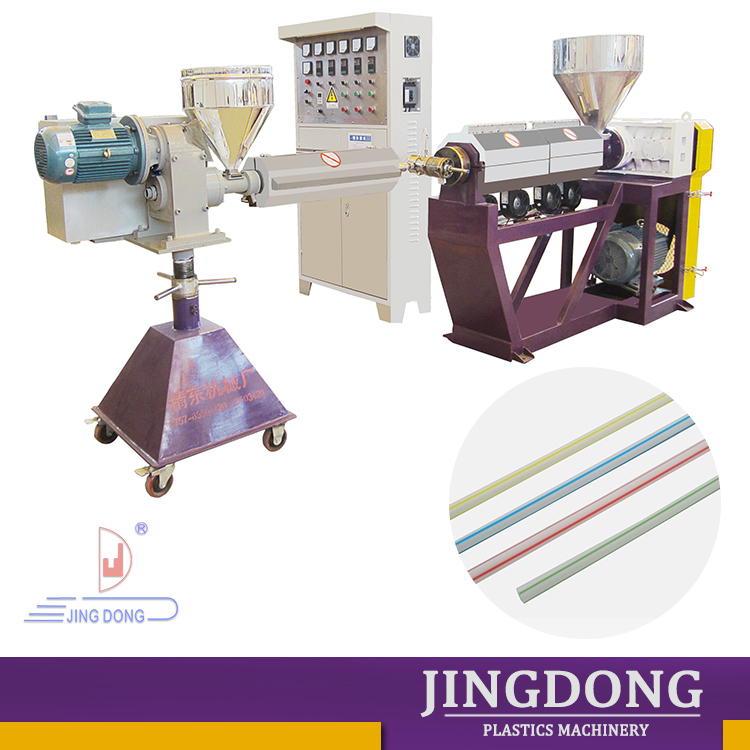

ecofriendly twin color plastic drinking straw extrusion machine
ecofriendly twin color plastic drinking straw extrusion machine
Product Description
Product Features:

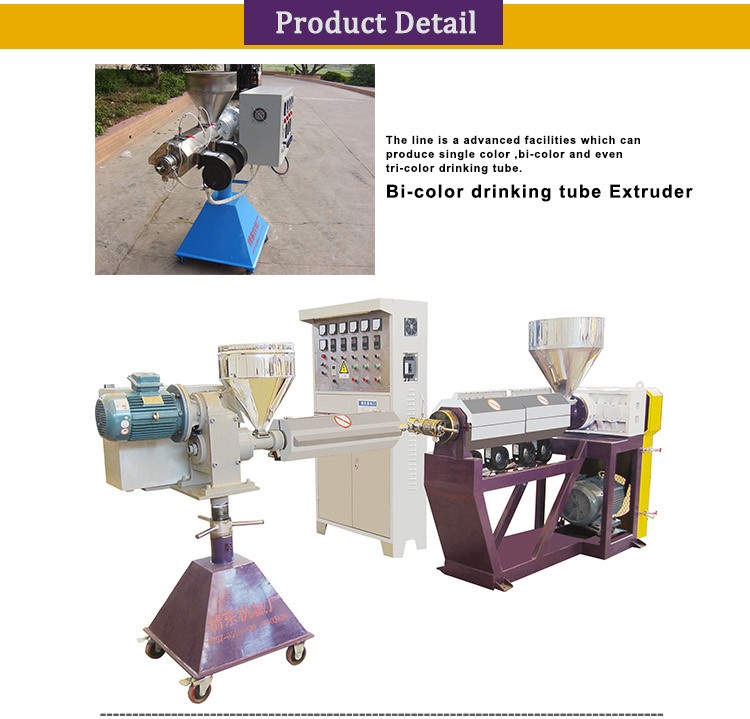

The line is a advanced facilities which can produce single color, bi-color and even tri-color drinking tube.

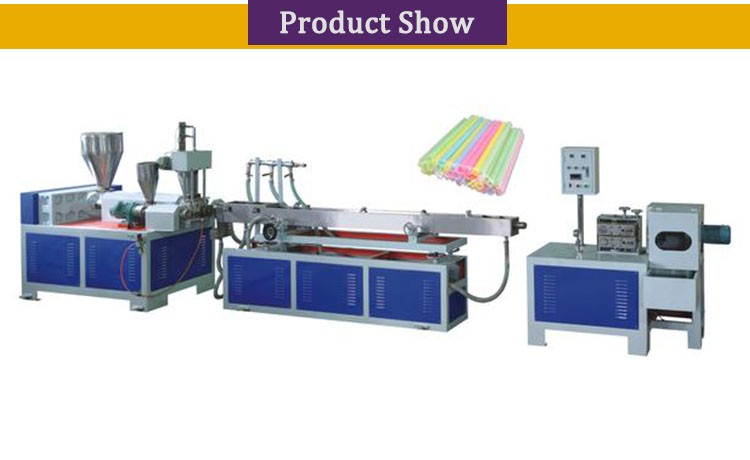

Bi-color/single color drinking tube: extruder → mold → cooling bath → drawing & cutting unit.

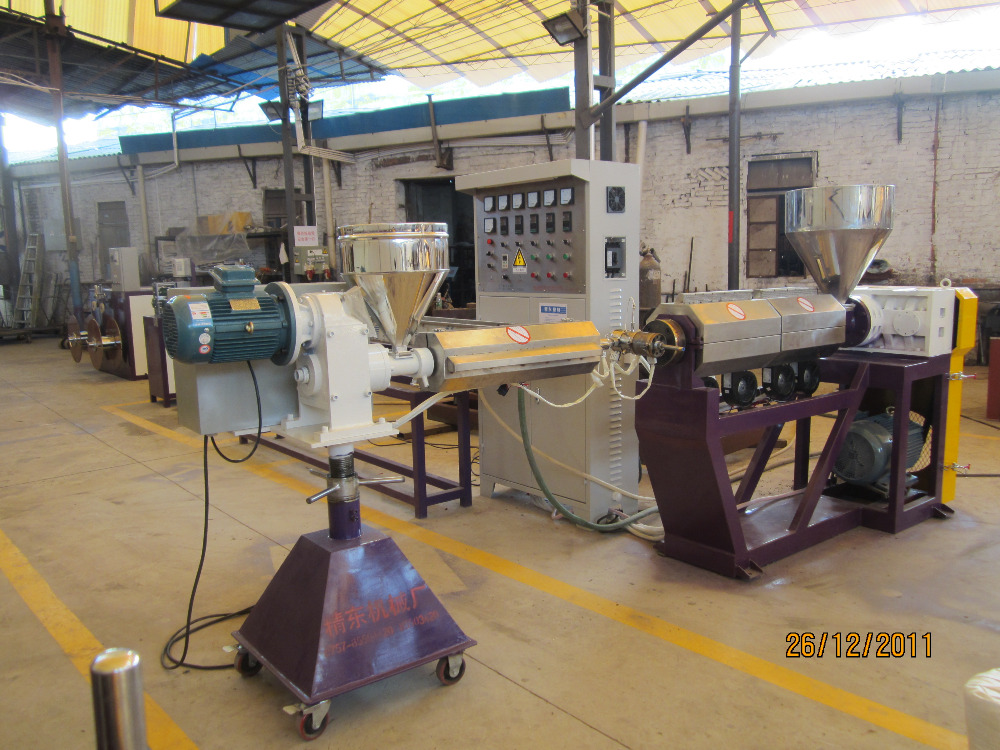

| SJ55/30 Bi-color drinking tube extruding line | ||||
| Item | Unit | Parts | Number | Description |
| 1 | SJ55 Extruder | screw & barrel | 1 set | screw: Ø55 mm, L/D=25:1,38CrMoAlA, hardening and tempering, nitriding,Cr plated. |
| gear box | 1 set | gear hardening, polished, horizental | ||
| machine frame | 1 set | steel profile welding | ||
| main motor | 1 set | 15 kw-4 pole, frequency varying | ||
| control panel | 1 set | 5 zone temperature control, 3 air cooling | ||
| 2 | SJ30 Extruder | Screw & Barrel | 1 set | Φ30 mm, L/D=22:1, 38CrMoAIA, nitriding, Cr plated |
| Gear Box | 1 set | gear hardening, polished, horizental | ||
| Machine Frame | 1 set | steel structure | ||
| Main Motor | 1 set | 3 kw frequency varying | ||
| Control Panel | 1 set | 4 zone temperature control, 2 air cooling | ||

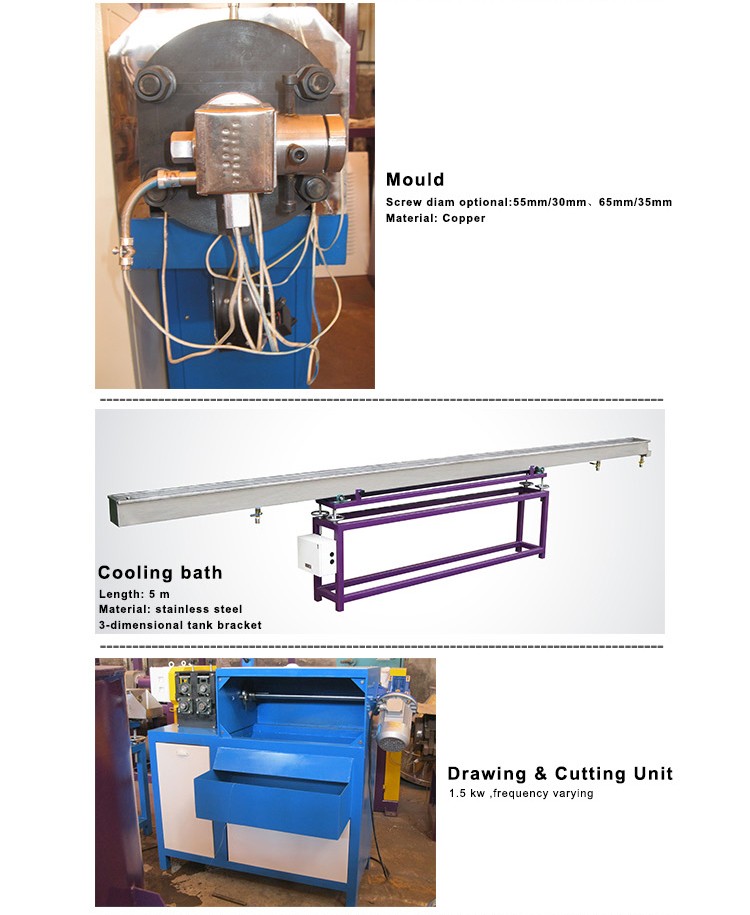

| 3 | Extruding Mold | Mold | 1 set | |
| Fixed Diameter Sleeve | 1 set | material: copper | ||

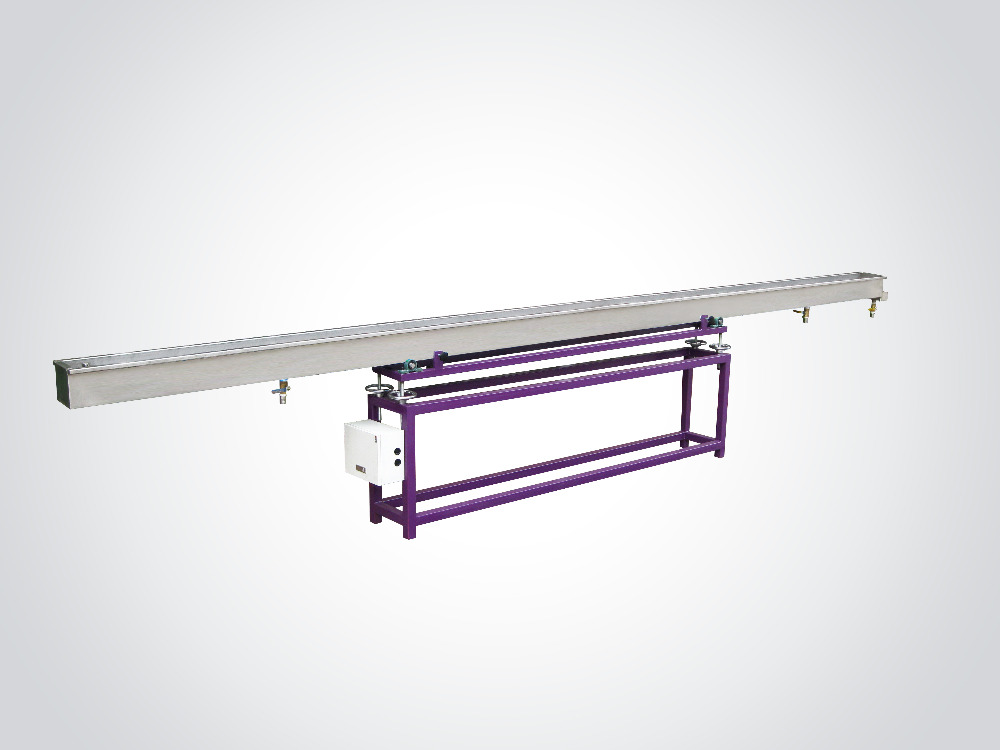

| 4 | Cooling Bath | 1 set | length: 5 m material: stainless steel 3-dimensional tank bracket | |

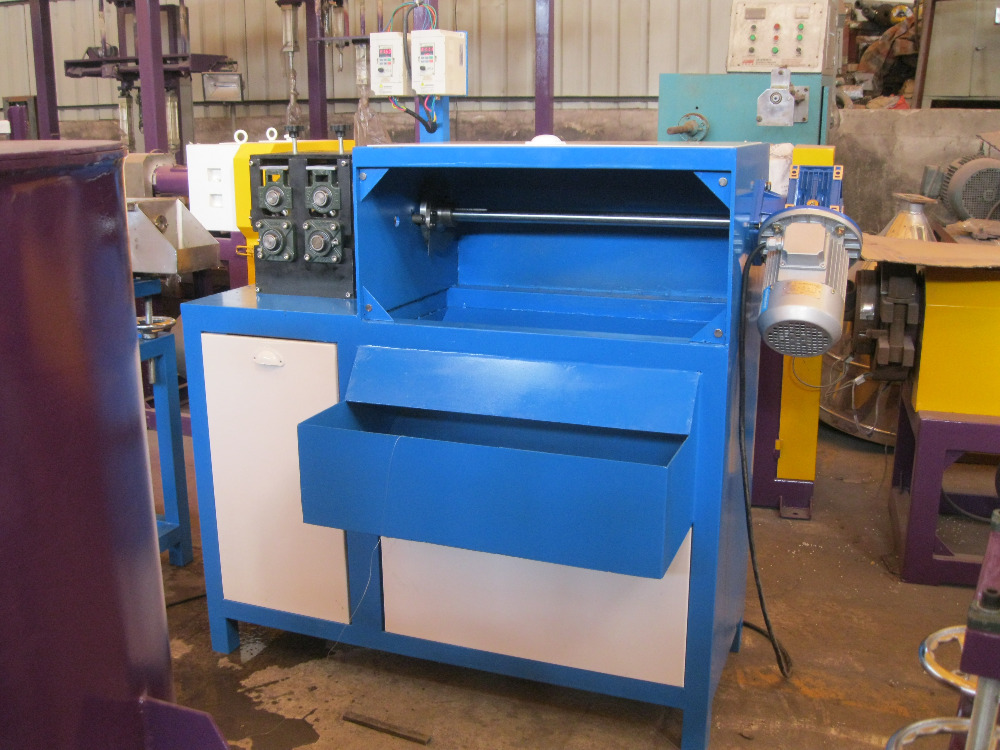

| 5 | Drawing/Cutting unit | 1 set | 1.5 kw, frequency varying | |
| Model | Screw diam | L/D | Motor Power | Power for drawing & cutting unit | Tube diam |
| Single-Color extruder | 50 | 25:1~28:1 | 11 | 1.5 | 0~5 |
| 55 | 25:1~28:1 | 15 | 1.5 | 6~15 | |
| Bi-color extruder | 55/30 | 25:1~28:1 | 15/3 | 1.5 | 6~15 |
| 65/35 | 25:1~28:1 | 22/4 | 2.2 | 3~20 |
Our Services
Before sale
1.We provide service for consulting on end product analysis and facilities selection.
2.We can arrange you to visit our local clients to see how our facilities work.
After purchasing
1.We can provide ways on materials purchase.
2.Free offering of product formulation.
3.We provide service for training on process.
4.Before delivery, trial production to give qualified end product.
5.OEM service to meet client’s special demanding
After sales
1.Technical advisory services for a long time
2.The machine will have one year of warranty.During the warranty period,if any part of machine is broken
not by man made.We will replace it with the new one freely for you.The warranty date will begin since the
machine be sent out upon we receive the B/L.

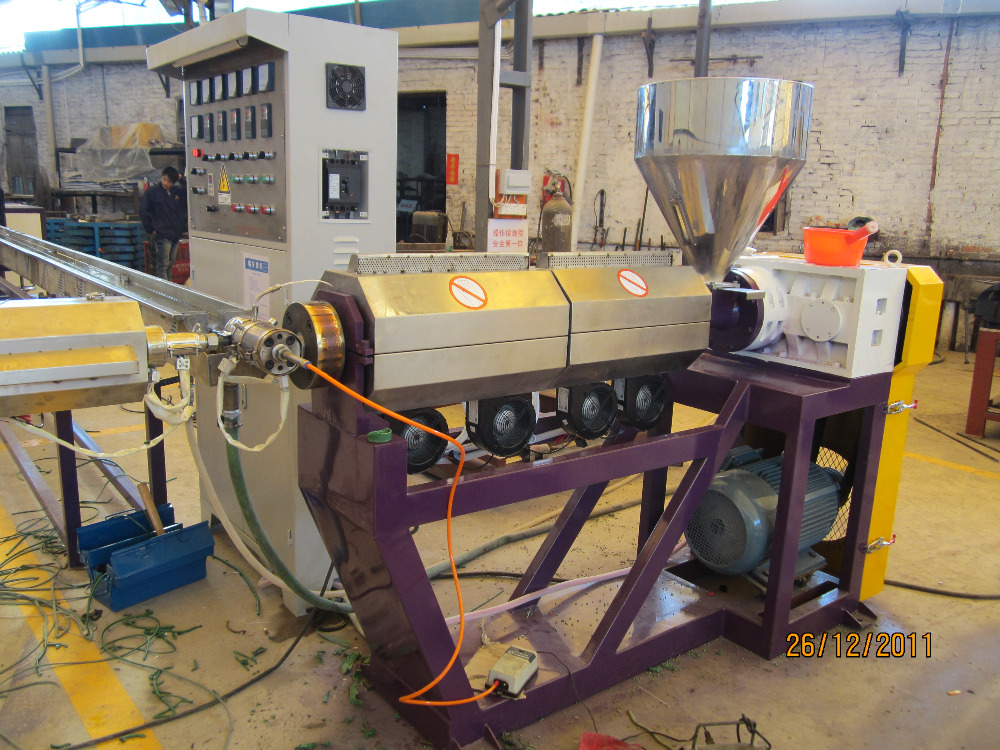

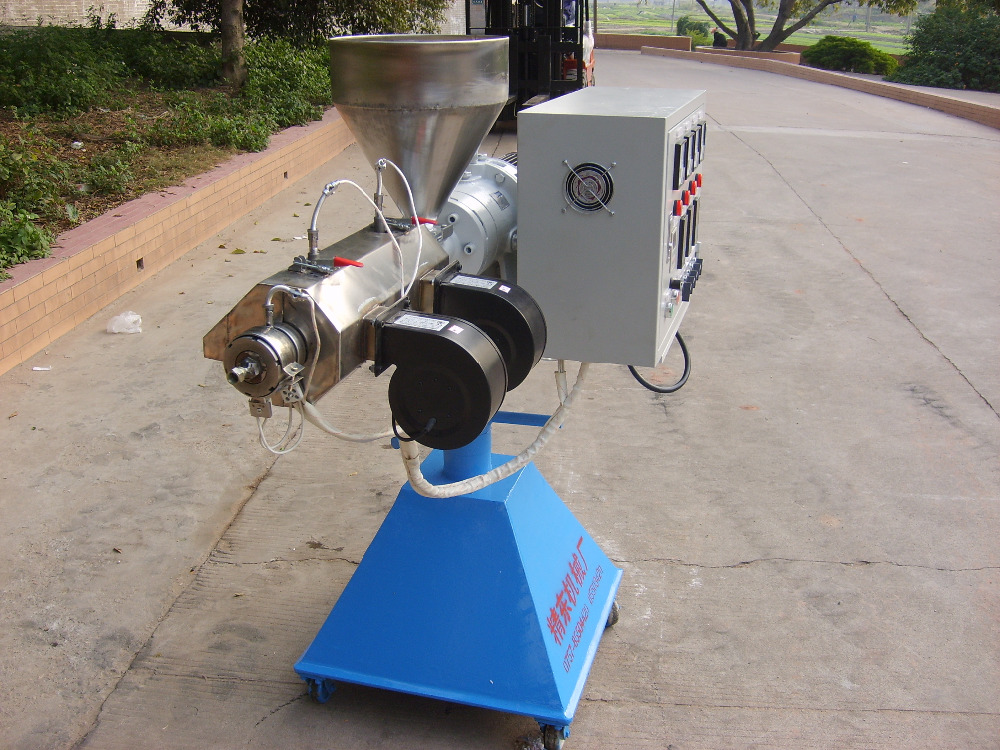

Detailed Images
Company Information
Packaging & Shipping
Buying Guides
Q: How do I buy from your company?
A: When you find the product you want, just send inquiry to us, and we will reply you within 24 hours .
then send you order conformation information, when you confirm to buy the products, we will prepare the
proforma invoice and bank details for you. then you paid.
Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer),
Western Union. finish the payment.
Q: How can you guarantee my payment ?
A : Our company is ALIBABA GOLD SUPPLIER. and ALIBABA have make us done enterprise authentication.
We always adhere to the "customers foremost, quality first" of aim, pay attention to honesty, the pursuit of
excellence.
Q: Can I buy different models in one time?
A: Yes we can combine the shipments.
Q: How long it will take before you ship the products?
A: We normally ship your order within 24-48 hours since receving your payment.
Q: If I have any questions ,how can I contact you?
A: You can always contact us with your problems.by email or phone.
