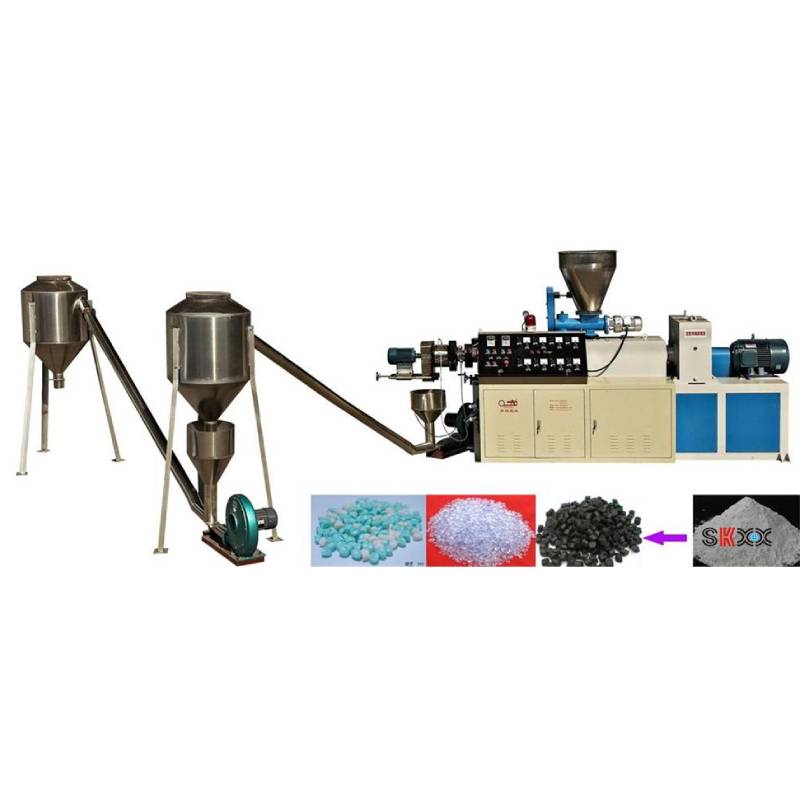

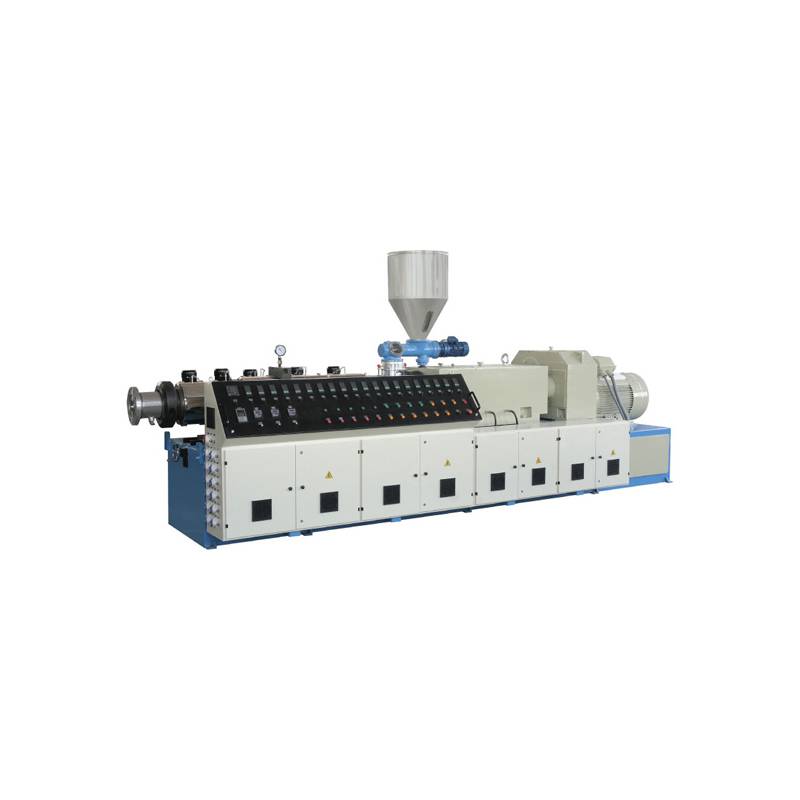

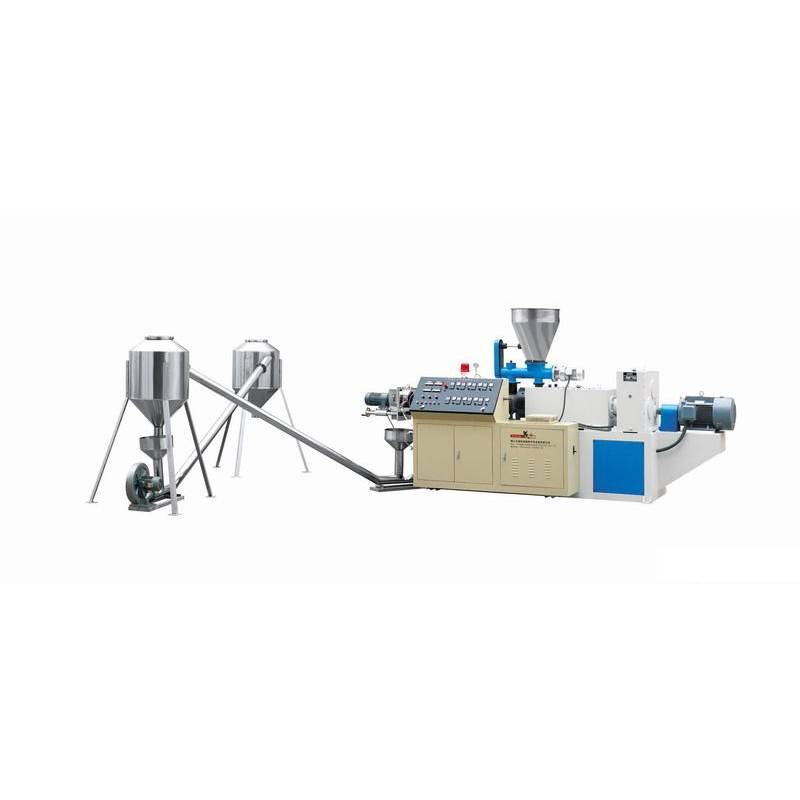

Conical Twin Screw Compounding Facilities
The facilities adopt optimized screw designing with frequency varying and auto-temperature control becoming the latest excellent compounding facilities.
Uses: for TPR, PVC (including cable & wire, transparent compound) compounding, and plastics pipe, profile, sheet manufacturing etc.
Compose: conical twin screw extruder → mold → air cooling tower.
| model |
SJZ-45/90 | SJZ-50/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 |
| screw diameter（mm） | Φ45/90 | Φ50/105 | Φ55/110 | Φ65/132 | Φ80/156 | Φ92/188 |
| number of screw | 2 | 2 | 2 | 2 | 2 | 2 |
| rotation | anisotropy inward/anisotropy outward | |||||
| rotation speed（rpm） | 1~45.5 | 1~30 | 1~30 | 1~34.7 | 1~36.9 | 1~32.9 |
| screw working length（mm） | 989 | 1200 | 1200 | 1440 | 1600 | 2500 |
| motor power（kW） | 15 | 22 | 22 | 37 | 55 | 9011.5 |
| heating power（kW） | 11.5 | 16 | 16 | 24 | 36 | 50 |
| output（㎏/h） | 40~60 | 50~140 | 50~140 | 250~300 | 320~450 | 500~600 |
| central height | 1000 | 1100 | ||||
| weight（㎏） | 3000 | 3500 | 3500 | 4000 | 5500 | 8000 |
