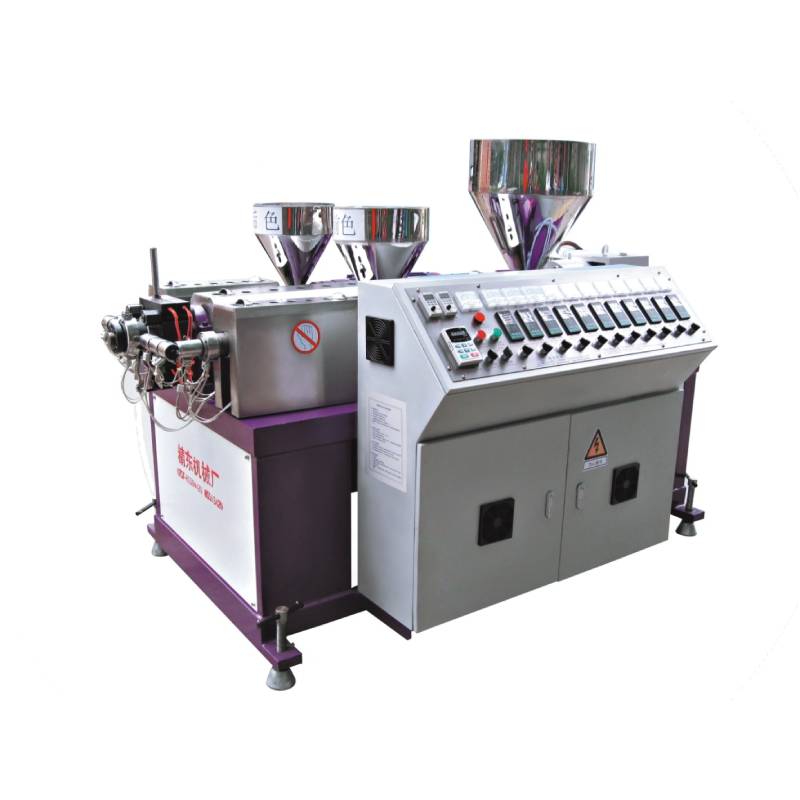

Artificidl rattan extrusion line
plastic rattan extruding machine have a lot of models.It canproduce many kind of plastic rattans,For the furnitures,For the baskets,For the art etc.and can provide customers with technical support formula.Configure corresponding mold, can produce various shapes of plastic imitation rattan, slice and shape of the cladding, etc., products are used in production of cany chair, tea table, flower basket, weaving crafts, furniture and other products.
Furniture and art rattan extrusion line:
Extruder+mould→Cooling tank→Drawing unit→Pick-up unit
Iron strengthen rattan extrusion line:Iron line pick-up unit→Wire releasing rack→Tensing rack→Extruder+Mould→Cooling tank→Drawing unit→Pick-up unit
Model |
Screw dia | Main Screw L/D | Power | Heating zones | Cooling set | Traction&Cutting power | Specification |
| Art rattan |
45mm | 28:1 | 7.5kW | 5 | 5m cooling bath pool | 1.5kW 0.75kW |
1mm-9mm |
| 50mm | 28:1 | 7.5kW | 5 | 5m cooling bath pool | 1.5kW 0.75kW |
1mm-9mm | |
| 55mm | 28:1 | 11kW | 5 | 5m cooling bath pool | 1.5kW 0.75kW |
1mm-9mm | |
| Inteqration furniture rattan | 55mm 30mm*2 |
28:1 22:1*2 |
15kW 2.2kW*2 |
11 | 6m cooling bath pool | 1.5kW 0.75kW |
1mm-18mm |
| 65mm 35mm*2 |
28:1 25:1*2 |
18.5kW 3kW |
11 | 6m cooling bath pool | 1.5kW 0.75kW |
1mm-20mm | |
| Indepen dent style furniture | 55mm 30mm*2 |
28:1 22:1*2 |
18.5kW 3kW*2 |
11 | 6m cooling bath pool | 1.5kW 0.75kW |
1mm-20mm |
| 65mm 35mm*2 |
28:1 25:1*2 |
22kW 4kW*2 |
11 | 6m cooling bath pool | 1.5kW 0.75kW |
1mm-20mm | |
| iron core rattan | 50mm | 27:1 | 7.5kW | 11 | 5m cooling bath pool | 1.5kW 0.75kW |
1mm-20mm |
| PE Output：300kg-1800kg/day Area for single-color extruding line：L12000mm*W3000mm*H3000mm Area for combine extruding line：L13000mm*W3500mm*H3000mm Area for separated extruding line：L13000mm*W6500mm*H3000mm |
|||||||
